SGH-E530 Flow Chart of Troubleshooting
2-9
This Document can not be used without Samsung's authorization

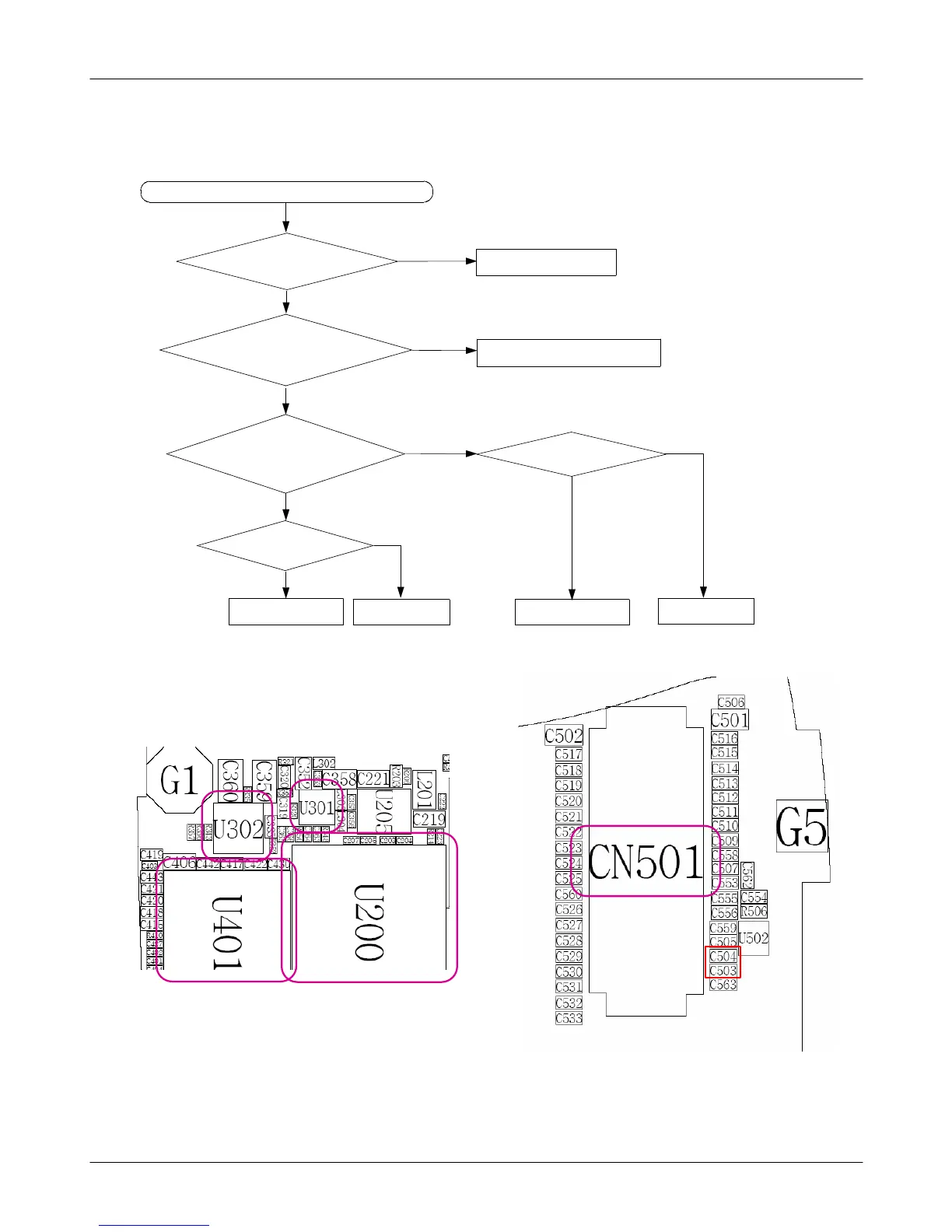

2-1-5. Speaker Part
There is no sound from the Speaker
Is the terminal of
Speaker O.K ?
No
Replace the Speaker
Yes
Are there any signals
at the C503, C504 ?
No
Yes
Check LCD or Replace CN501
Thetypeofsound
from the Speaker is
Melody
The pin#2 of
U302 is "HIGH"?
Yes
The pin#2 of
U302 is "LOW"
Check the U302
Check the U200
Yes
No
No
Check the U301
Check the U401
No
Yes
