Samsung SGH-E530 - Camera Part

SAMSUNG Proprietary-Contents may change without notice

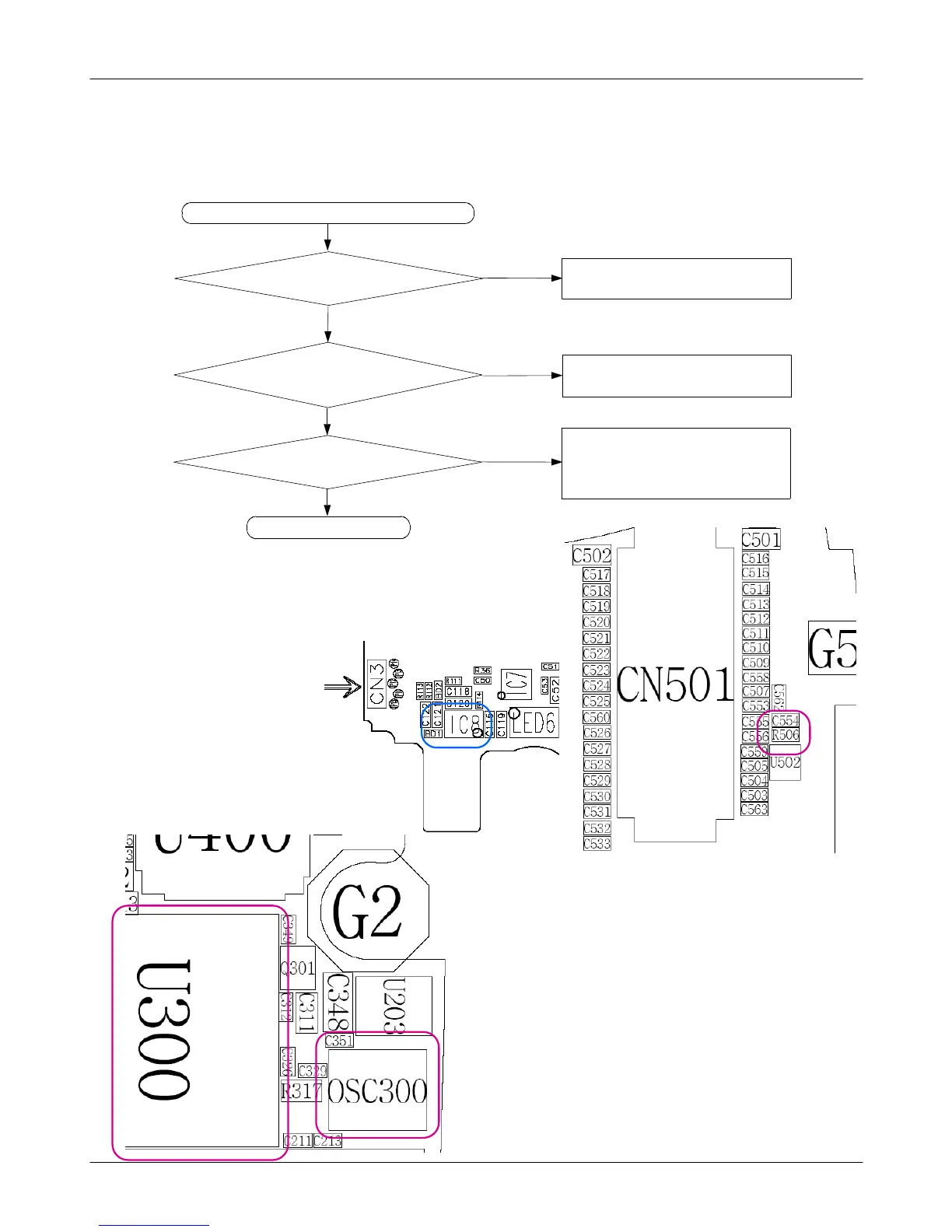

SGH-E530 Flow Chart of Troubleshooting
2-12
This Document can not be used without Samsung's authorization
2-1-6. Camera Part
"Camera" function dose not work
Yes
Check the connect
LCD CN5
Yes
LCD IC 8 PIN 6 = 1.8V?
PIN 4 = 2.6V?
Yes
Board R506 < 29MHz
Connect the camera module
Check Signal PIN40 of CN1
Check clock OSC300(R317) of U300
R317 =24.57Mhz
No
No
No
END
