Samsung SND-5084R User Manual

English _25
● INSTALLATION & CONNECTION
installation & connection
INSTALLATION (SND-5084R)
Precautions before installation
Ensure you read out the following instructions before installing the camera:
• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight
of the camera including the installation bracket.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.

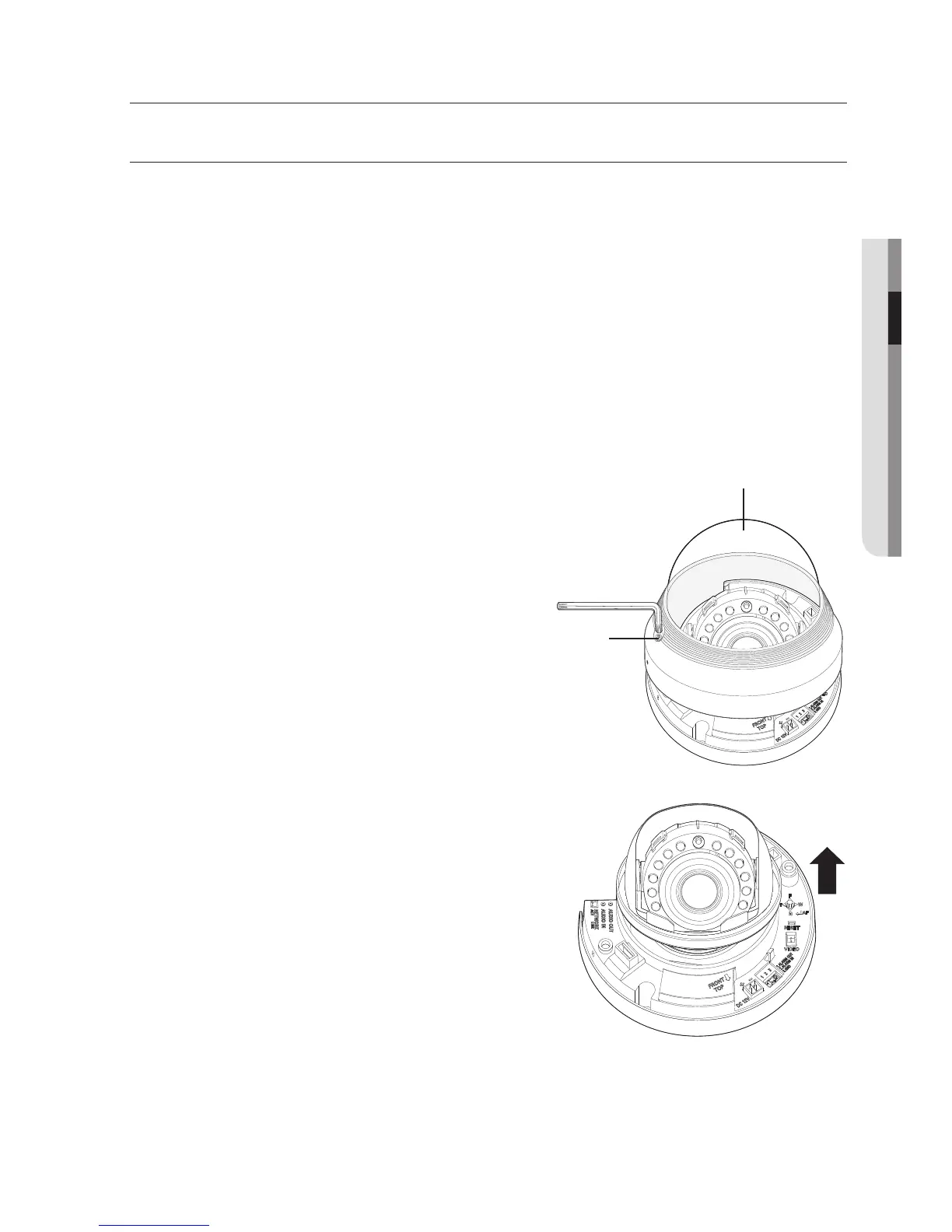

Disassembling
1. With the provided L-wrench, loosen
2 bolts on the dome cover counter
clockwise to remove the cover.
2. Lift up the inner cover to separate it.
Dome cover
Bolts

Samsung SND-5084R Specifications

General

Resolution	1.3MP
Lens Type	Varifocal
Night Vision	Yes
Day/Night	Yes
Weatherproof	IP66
Scanning System	Progressive
Synchronization	Internal
S/N Ratio	50dB
Operating Humidity	Less than 90% RH
Camera Type	Network Camera
Power Supply	PoE, 12V DC
Sensor	1/3"
Effective Pixels	1280 x 1024
Power Consumption	Max.
Operating Temperature	-10°C ~ +55°C
Video Output	1.0Vp-p, 75Ω, Composite
