26_ Setting up your refrigerator
Setting up your refrigerator
To use without the water filter section

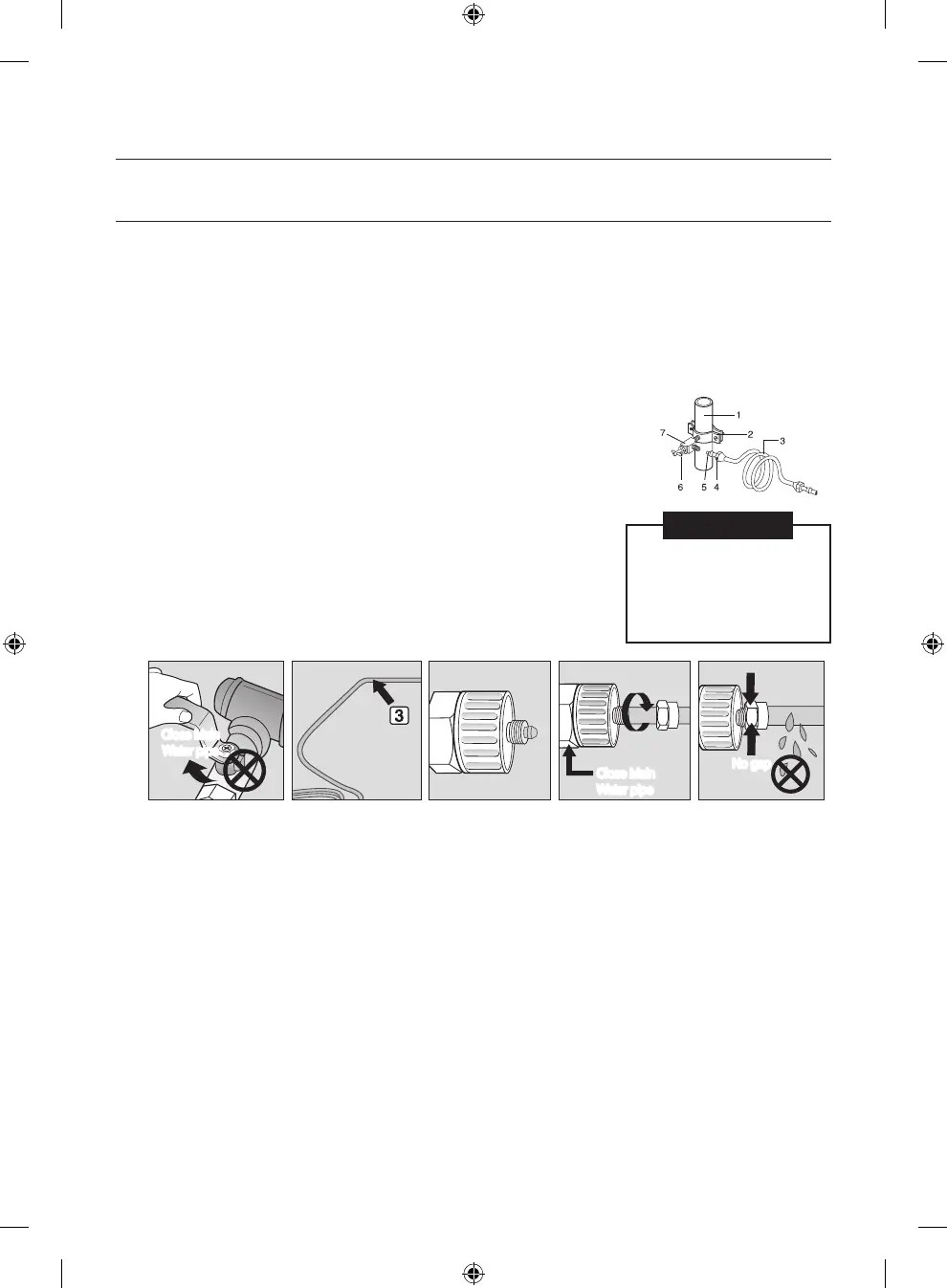

Connecting to the water supply line
• Shut o the main water supply line and turn the Ice maker to the
o position.
• Locate the nearest cold water drinking line.
1. Cold Water
line
2. Pipe Clamp.
3. Plastic line
4. Compression
Nut
5. Compression
Sleeve
6. Packing Nut.
7. Shut O Valve
The water line must be connected
to the cold water pipe. If it is
connected to the hot water
pipe, it may cause the purifier to
malfunction.
CAUTION
1. First, shut o the main water supply line.
2. Locate the nearest cold, drinking water line.
3. Follow the Water line Installation Instructions in the installation kit.
Close Main
Water pipe
No gap
Close Main
Water pipe
