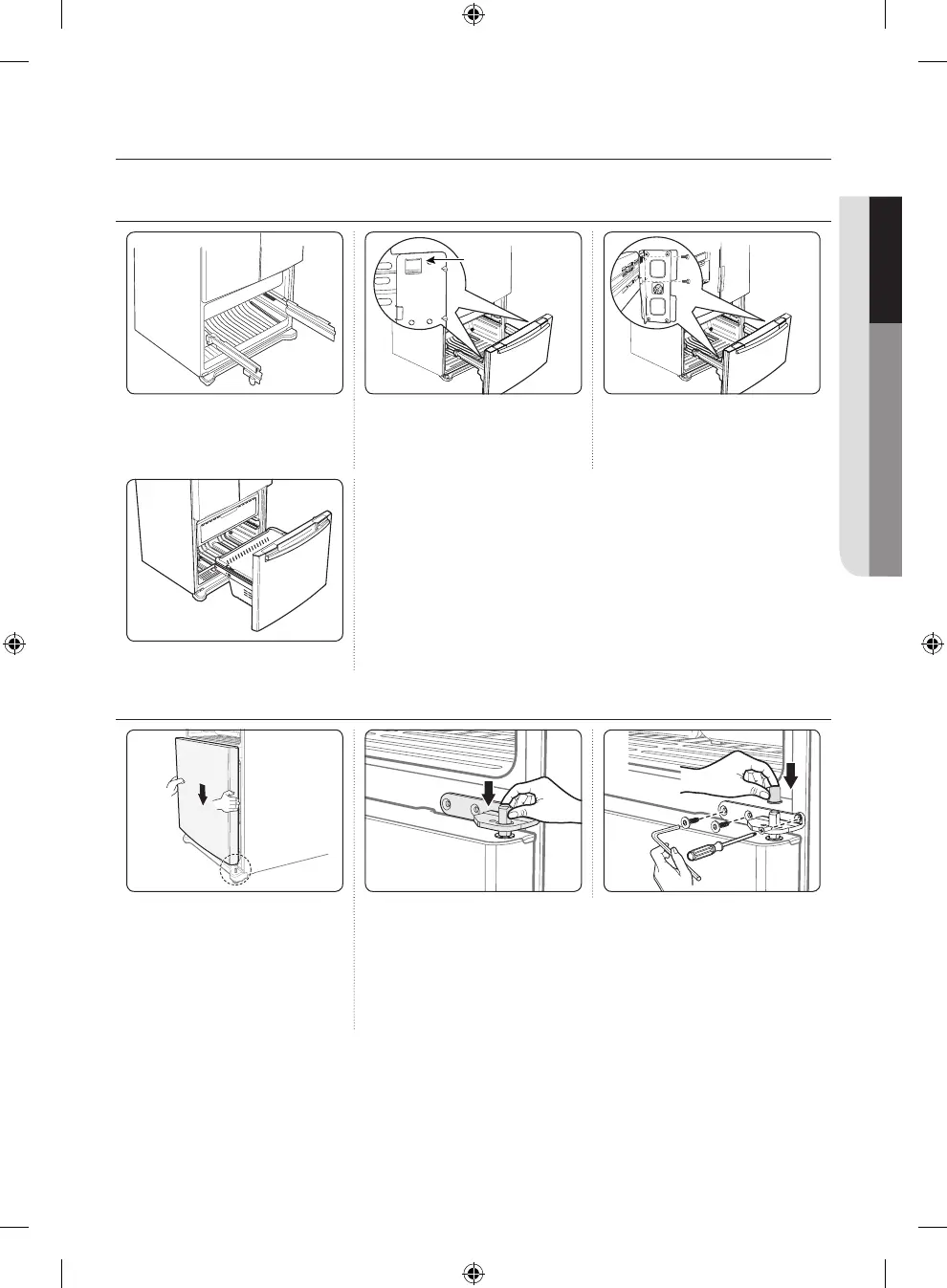

Setting up your refrigerator _33
Reassembling the freezer door (Drawer type)
Slot
1. Pull out the rails to the full
length on each sidle of the
cabinet evenly.
2. Hang the freezer door front
onto open slot on the sides.
3. With the 10 mm wrench,
reattach 4 bolts to connect
the rail with the door.
4. Replace the drawer box.
Reassembling the freezer door (Swing type)
1. Place the hole in the bottom
of the freezer door over the
right side low hinge.
2. Replace the middle hinge connected to the freezer.
3. Insert and tighten the screw into the left and right middle hinges
with a philips screwdriver (+).
Insert and tighten the 2 hex head bolts into the left and right
middle hinges with an allen wrench (Ø 5 mm).
4. Replace the cap on the middle hinge.
