Setting up your refrigerator

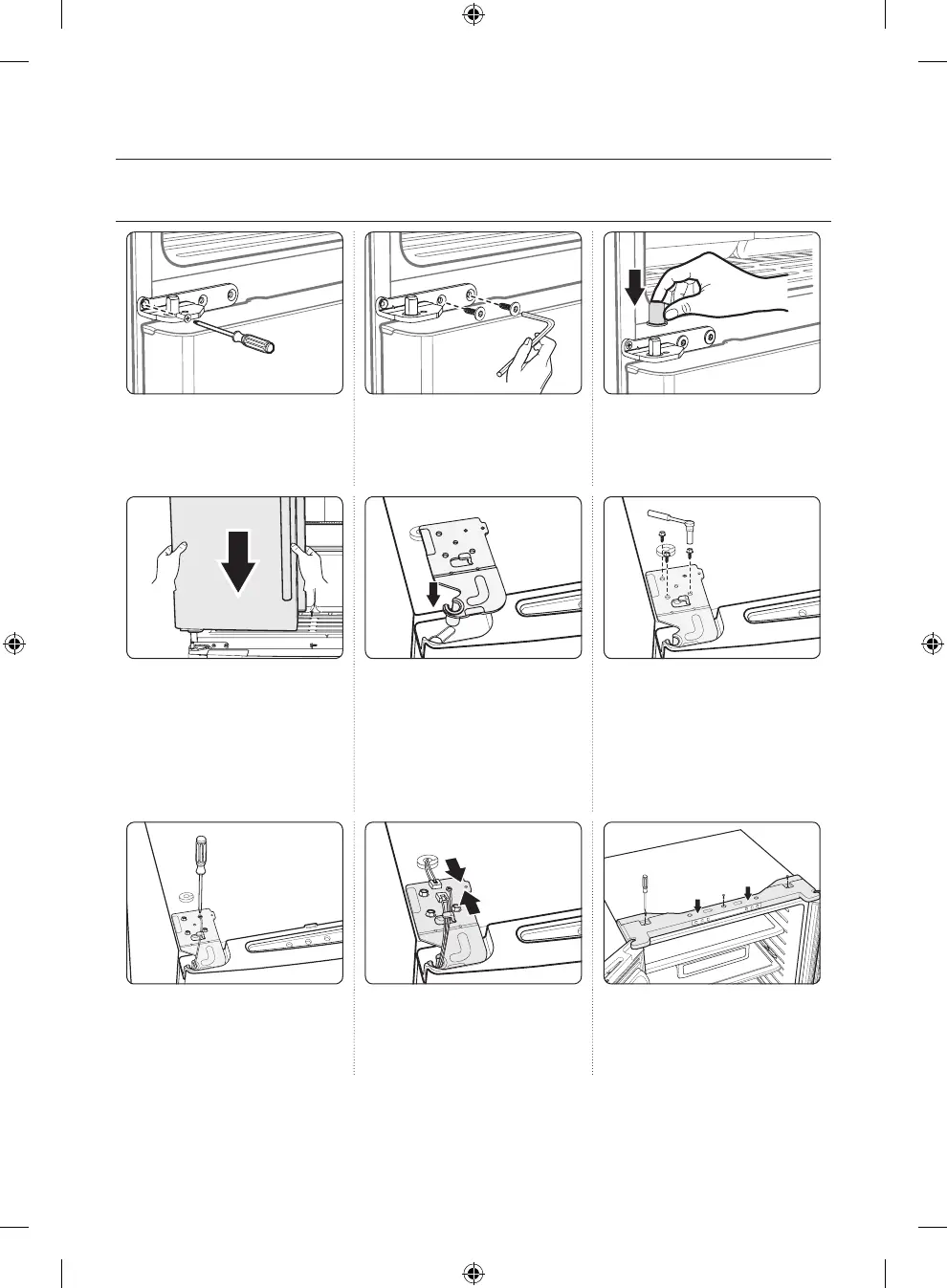

Reassembling the fridge door
1. Insert and tighten the
screw into the left and right
middle hinges with a philips
screwdriver (+).
2. Insert and tighten the 2 hex
head bolts into the left and
right middle hinges with an
allen wrench (Ø 5 mm).
3. Replace the middle hinge
cap.
4. Place the hole in the bottom
of the left door over the
middle hinge.
5. Insert the left upper hinge
shaft into the hole on the
corner of the fridge door.
6. Insert the upper hinges into
the holes at the top of the
door.
Insert and tighten the 3 hex
head bolts into the left and
right upper hinges with a
socket wrench (10 mm).
7. Insert and tighten the ground
screw into the left and right
upper hinges with a philips
screwdriver (+).
8. Connect the electronic wire
on the top of the refrigerator.
9. Position the top table in
place. Insert and tighten the 3
screws into the top table with
a philips screwdriver (+).
