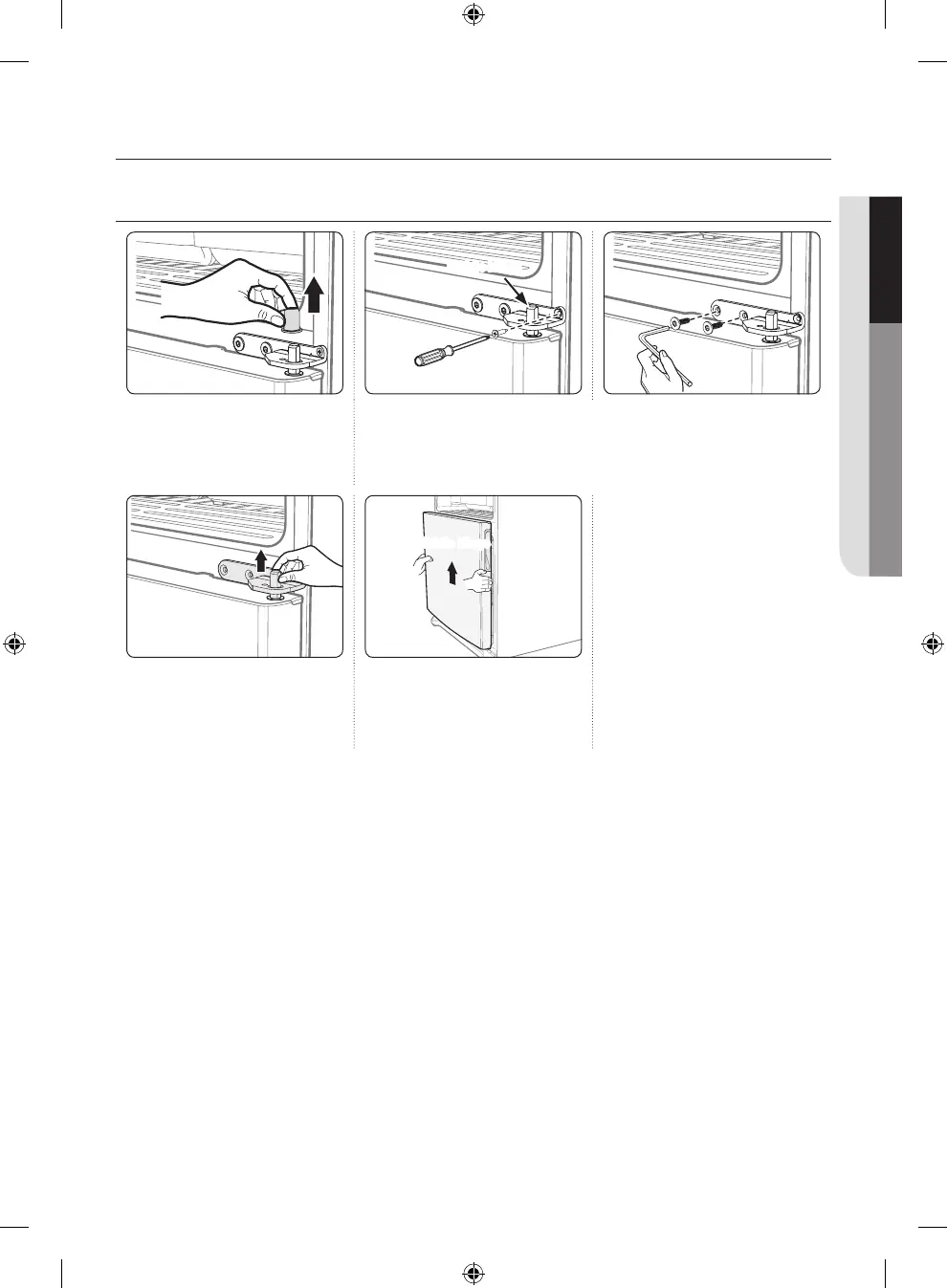

Disassembling the freezer door (Swing type)
Middle Hinge
1. Separate the Cap on the
Middle Hinge.
2. Remove the screw attached to the left and right middle hinges
with a philips screwdriver (+).
Remove the 2 hex head bolts attached to the left and right middle
hinges with an allen wrench (Ø 5 mm).
Middle Hinge
3. Remove the Middle Hinge
connected to the Freezer.
4. Lift up the freezer door from
the hinge.
Be careful not to drop and
scratch the freezer door.
