PCB Diagram
Samsung Electronics 99

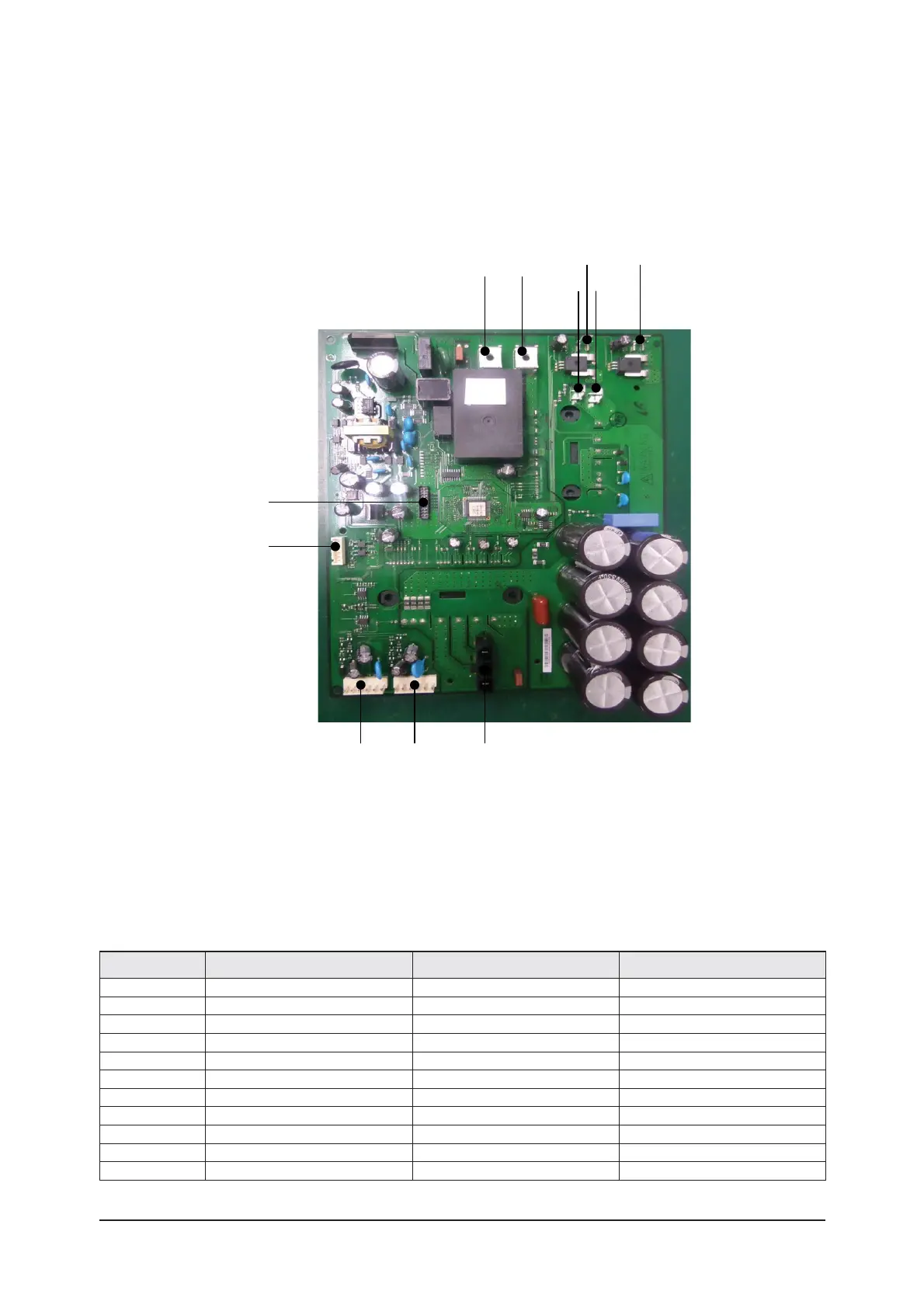

䯴 INVERTER PCB
(AE120/160MXTPEH/EU)
This Document can not be used without Samsung’s authorization.
No.Local Function Description
1 CN901 FAN1 YW396-06V WHT
2 CN911 FAN2 YW396-06V WHT
3 CN401 COMP 42819-3213 BLK
4REACTOR_A2 REACTOR_A2 YTR250
5REACTOR_A1 REACTOR_A1 YTR250
6 REACTOR_B2 REACTOR_B2 YTR250
7 REACTOR_B1 REACTOR_B1 Y
TR250
8 N_ AC POWEROT-048
9L_ AC POWEROT-048
10 CN551 DOWNLOAD YDW200-20 BLK
11 CN351 COMM-MAIN SMW250-06 WHT
£¤ ¥
¦
§
¨
©
