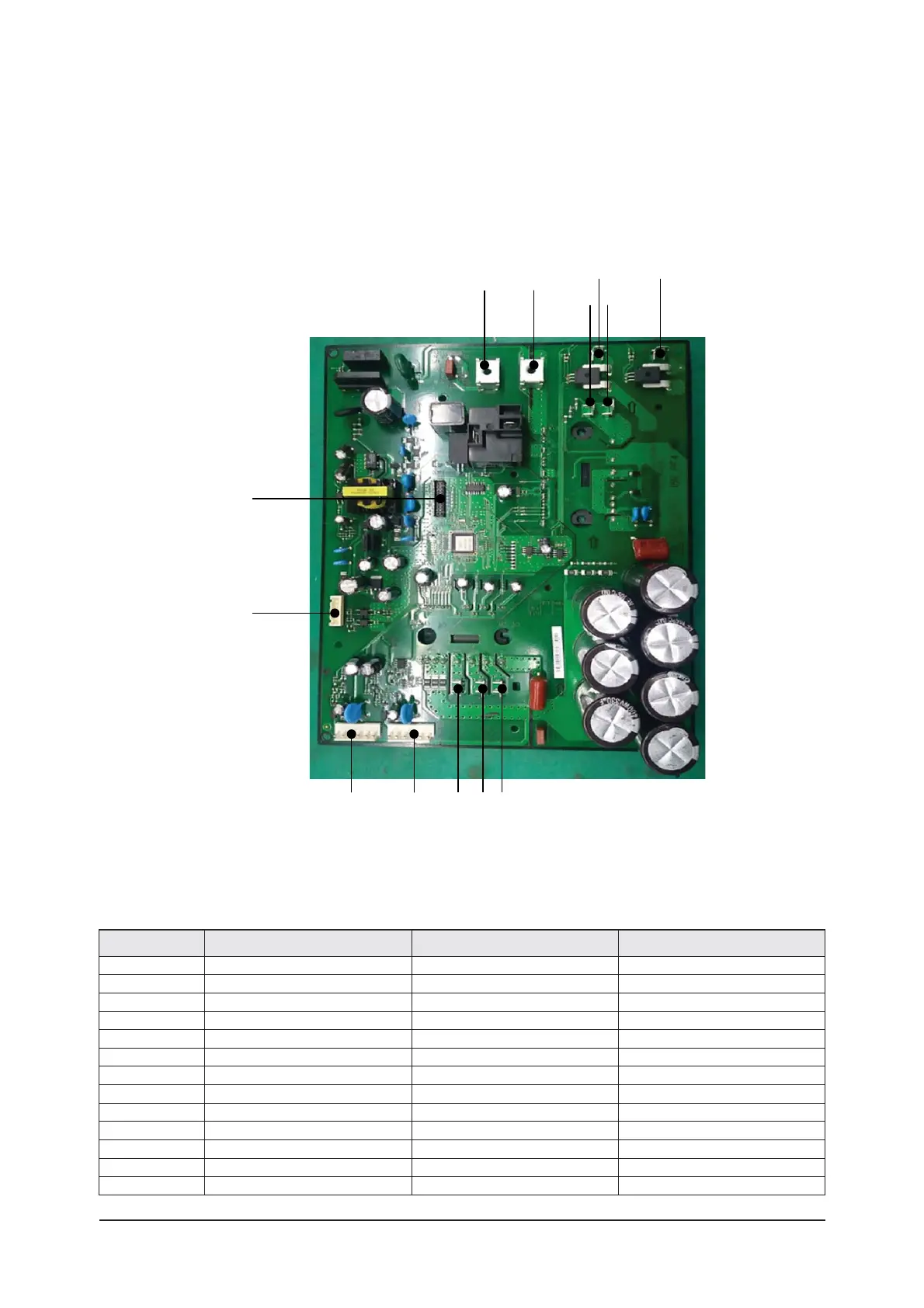

PCB Diagram
98 Samsung Electronics
䯴 INVERTER PCB
(AE090MXTPEH/EU)
This Document can not be used without Samsung’s authorization.
No.Local Function Description
1
CN901 FAN1 YW396-06V WHT
2 CN911 FAN2 YW396-06V WHT
3 CN401 COMP UYTR250
4 CN402 COMP VYTR250
5 CN403 COMP W YTR250
6 REACTOR_A2 REACTOR_A2 YTR250
7 REACTOR_A1 REACTOR_A1 YTR250
8 REACTOR_B2 REACTOR_B2 YTR250
9REACTOR_B1 RE
ACTOR_B1 YTR250
10N_ AC POWEROT-048
11 L_ AC POWEROT-048
12 CN551 DOWNLOAD YDW200-20 BLK
13 CN351 COMM-MAIN SMW250-06 WHT
£¤¥¦§
¨
©
ª
«
¬
®
¯
To Next Page
