INSTALLATION
2
Connect an audio cable
between the AUDIO OUT-
PUT jack on the cam-
corder and the AUDIO
terminals on the side of
the TV.
3
Connect a video cable
between the VIDEO OUT-
PUT jack on the cam-
corder and the VIDEO ter-
minal on the side of the
TV.
1
Locate the A/V output
jacks on the camcorder.
They are usually found on
the side or back of the
camcorder.

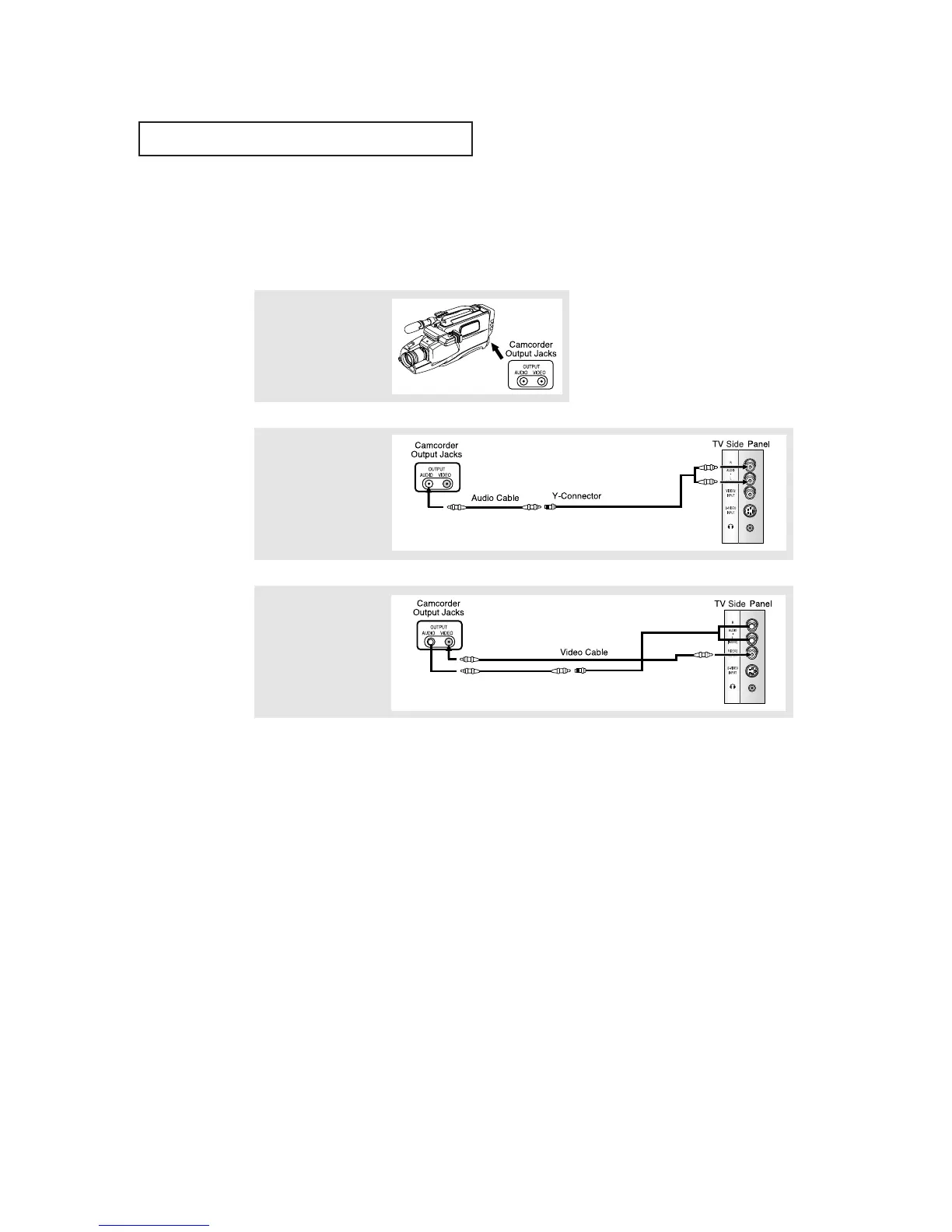

Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow
you to view the camcorder tapes without using a VCR. (Also see “Viewing a VCR or
Camcorder Tape” on page 39.)
The audio-video cables shown here are usually included with a Camcorder. (If not, check
your local electronics store.) If your camcorder is stereo, you need to connect a set of two
cables.
Note: This figure shows the Standard connector-jack panel. The actual configuration for your TV
may be different.
