Osc
OTR
OSP
osp
Q.PRO
REG
REC
REC.SAF
REW
REV
RECT
REF
SCK
: Oscillator
: One Touch Recording
: On Screen Programme
: On Screen Display
: Play Back
: Power Control
: Pulse Generator
: Picture Intermediate Frequency
: Phase Lock Loop
: Programme
: Pulse Width Modulation
: Power
: Pause/Still
: Power Detector
: Quick-Program
: Regulator
: Record
: Record Safety
: Rewind
: Radio Frequency
: Reverse
: Rectifier
: Reference
: Simul-Cast
: Sub-Carrier
: Shift Clock
: Serial Data
: Sound Intermediate Frequency
: Surface Mounted Devices
: Switching Mode Power Supply
: Standard Play
: Head Switching Pulse
: Synchronizing Signal
: System Control
: Strobe
: Serial Input
: Serial Output
: Switch
TP
TRK
UL
Y/C
uP
: Test Point
: Tracking
: Unloading
: Voltage Tuning
: Vertical Lock Pulse
: Voltage Reference
: Vertical Sync
: Voltage Controlled Oscillator
: Video Cassette Recorder
: Video Intermediate Frequency
: Video Programming System
: Video Home System
: Voltage Controlled Crystal Oscillator
: Voltage Super Source
: VHS Index Search System
: White /Clip
: White/Dark
: Luminance/Chrominance
: Microprocessor

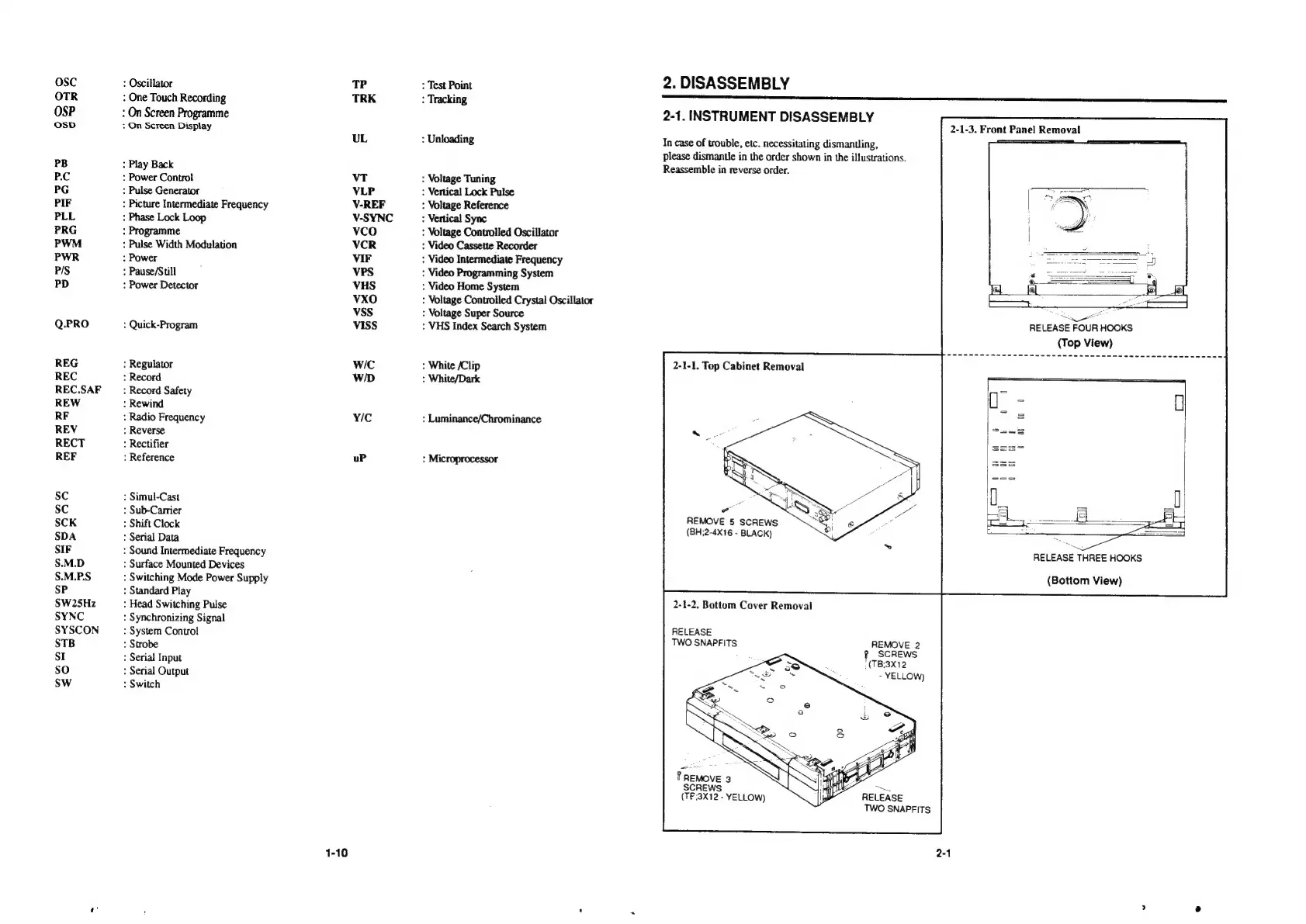

2. DISASSEMBLY
CO
2-1.
INSTRUMENT
DISASSEMBLY
In case of trouble, etc. necessitating dismantling,
please dismantle in the order shown in the illustrations.
Reassemble in reverse order.
RELEASE FOUR HOOKS
(Top View)
2-1-1. Top Cabinet Removal
REMOVE
5
SCREWS
eg
~
aa
an
(BH;2-4X16
-
BLACK)
RELEASE THREE HOOKS
(Bottom View)
2-1-2. Bottom Cover Removal
RELEASE
TWO
SNAPFITS
REMOVE
2
g SCREWS
(TB;3X12
- YELLOW)
P REMOVE 3
SCREWS
(TP:3X12- YELLOW)
RELEASE
TWO SNAPFITS
2-1
