10-3
CN2
1. Connects to Main PBA (Seq0)
2. Connects to Main PBA (Rotary Switch A)
3. Connects to Main PBA (Rotary Switch B)
4. Connects to Main PBA (Key2)
5. Connects to Main PBA (Key3)
6~13. Connects to Main PBA
(Digit Signal 0~7 / In Regular Sequence)
CN1
1. Connects to Main PBA (Ground)
2. Connects to Main PBA (Vcc)
3. Connects to Main PBA (Key 1)
4~13. Connects to Main PBA
(Seg1~9,13/In Regular Sequence )

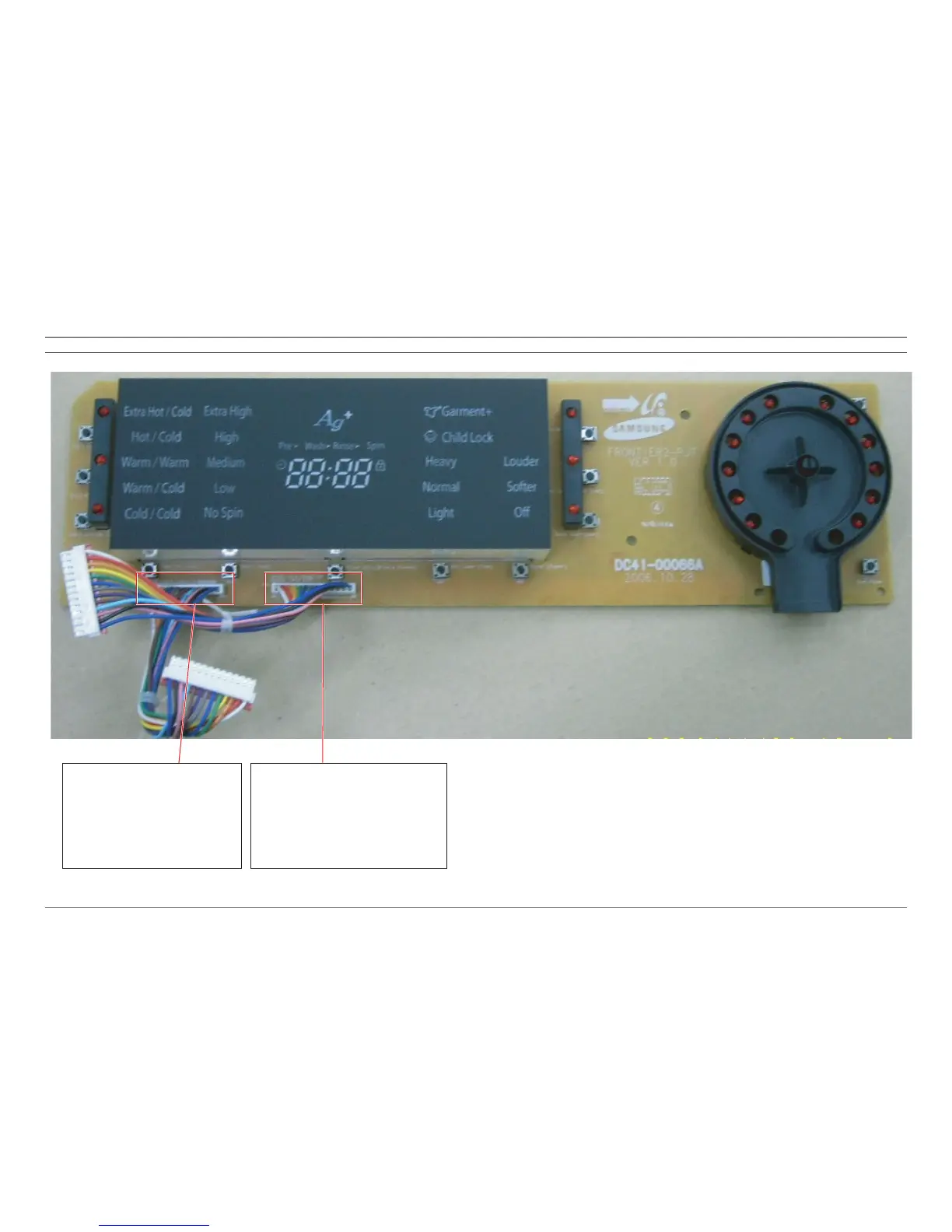

10-3. CONNECTOR & RELAY TERMINALS DESCRIPTION (SUB PBA)
