5. SELECTING THE DIE SET, 20 MODEL
D L Die set No Crimping range
10 55 18013/10 10...12 mm
12 55 18013/12 12...14 mm
14 55 18013/14 14...16 mm
16 55 18013/16 16...19 mm
19 55 18013/19 19...23 mm
23 55 18013/23 23...27 mm
27 70 18013/27 27...31 mm
31 70 18013/31 31...36 mm
36 75 18013/36 36...41 mm
41 75 18013/41 41...47 mm
47 85 18013/47 47...54 mm
54 85 18013/54 54…61 mm
In addition to the standard die sets, a wide range of special die sets is available on request.

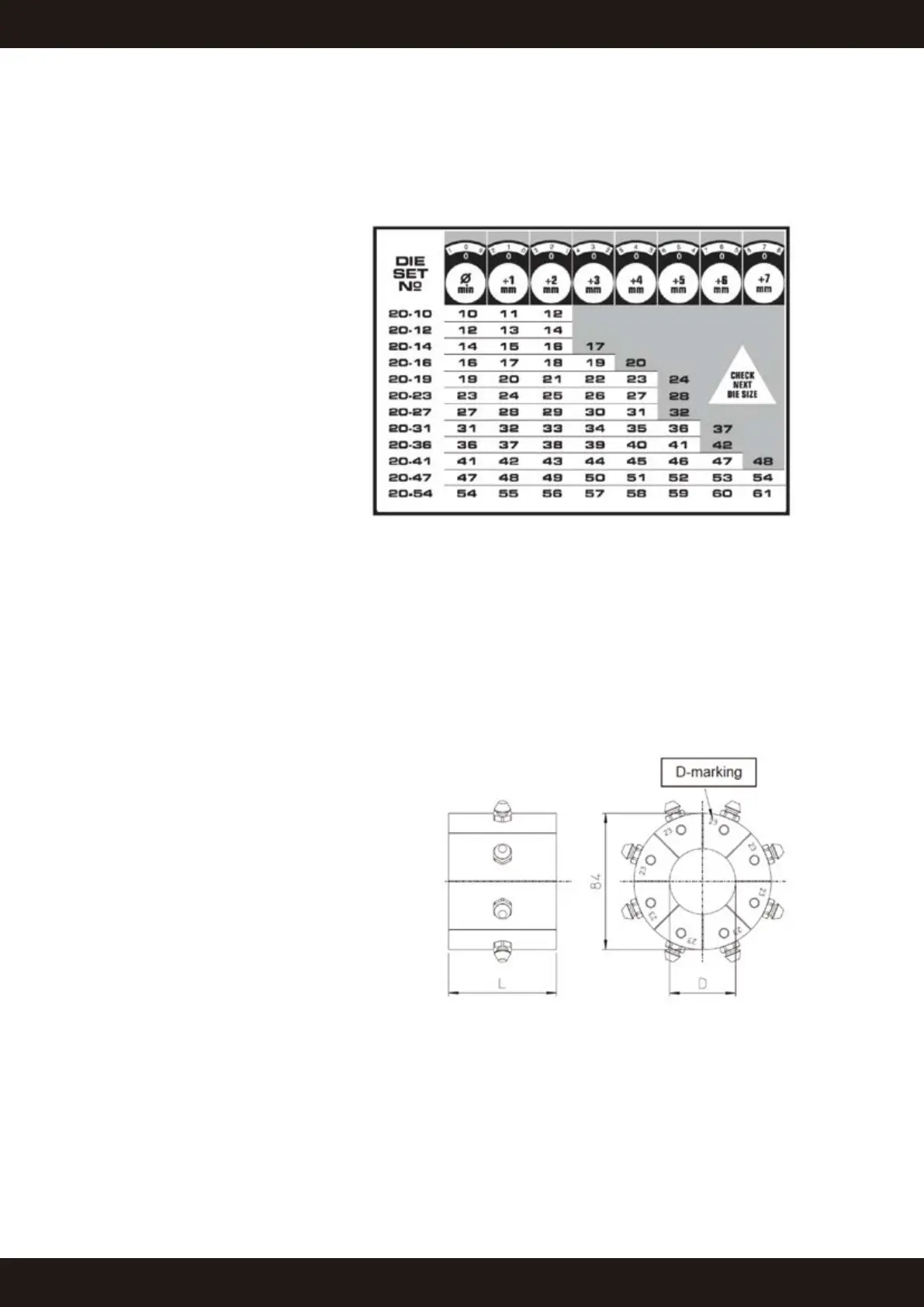

From the crimping diameter
chart, delivered together with the
machine, you can see the die
set numbers and the
corresponding crimping ranges.
The upper section of the chart
shows the corresponding dial
position for each crimping
iameter in the columns.
d
Crimping diameters in the grey
zone of the chart are not
recommended to be used with
he die set in question.
t
The crimping diameter dial has
been calibrated at the factory so
that when the dial is set at 0.0,
the resulting diameter will be the
minimum diameter of the die set
installed, i.e. with die set No 20-
16 the crimping diameter will be
16 mm, No 20-19 gives a
diameter of 19 mm etc. Each full
turn clockwise of the adjusting
knob of the dial will add 1 mm to
the crimping diameter. Each
division on the measuring scale
corresponds to 1/100 mm.
The crimping diameter chart P20
