The TROUBLESHOOTING: Event Status screen (Figure 4) shows the present status, active
or inactive, of several troubleshooting-related events.
The fields on these screens are grouped into three categories: Normal Events, Trouble
Conditions, and Switch “Not Ready” Conditions.
To display the TROUBLESHOOTING: Event Status screen:
Click the Troubleshooting button at any IntelliLINK screen, then click the Event Status
button.

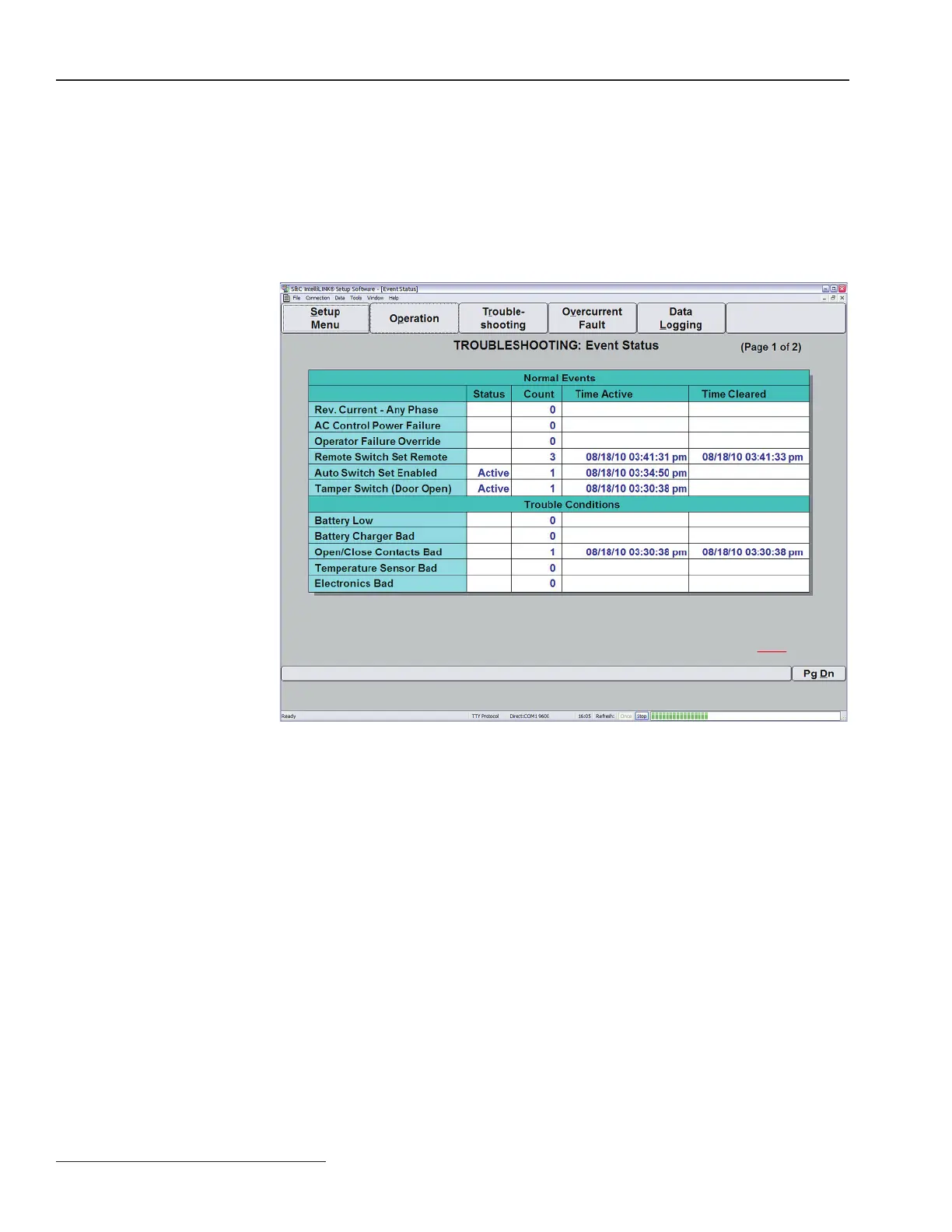

Figure 4. Troubleshooting: Event Status screen page 1 (5801 shown).
This screen contains 5 columns:
(no title) The name of the event.
Status If the status of an event is Active, it means that the condition presently
exists.
Count The number of times this event or condition has occurred since the last
time the switch control was reset. If the Control software is reloaded,
not updated, the counts are reset to zero.
Time Active The most recent time that the event status became Active.
Time Cleared The most recent time that the event status became inactive.
Normal Events
The events named in the first column are conditions which may occur routinely during
normal operations, but which may also indicate a problem.
To Next Page
