S&C Instruction Sheet 1045M-510 13
Installing the Rotating Switch Operator
dations to be used along with locally accepted practices. If the switch operator
is not pole-mounted, procedure details may vary.
Mount the switch operator (see Figure 9 on page 16) to the pole (see
Figure 10 on page 17) with ⅝-inch or ¾ -inch through-bolts and flat washers
as follows:
(a) Install the top bolt.
(b) Use the lifting hole on the mounting channel and the appropriate lifting gear to
hoist the switch operator into position on the pole.
(c) Hang the switch operator on the top bolt.
(d) Install the bottom bolt and vertically align the switch operator on the pole.
(e) Tighten the two bolts.
STEP 7. Using the construction detail approved by your utility, complete the
assembly of the mechanical coupling of the switch operator to the switch
operator rod.

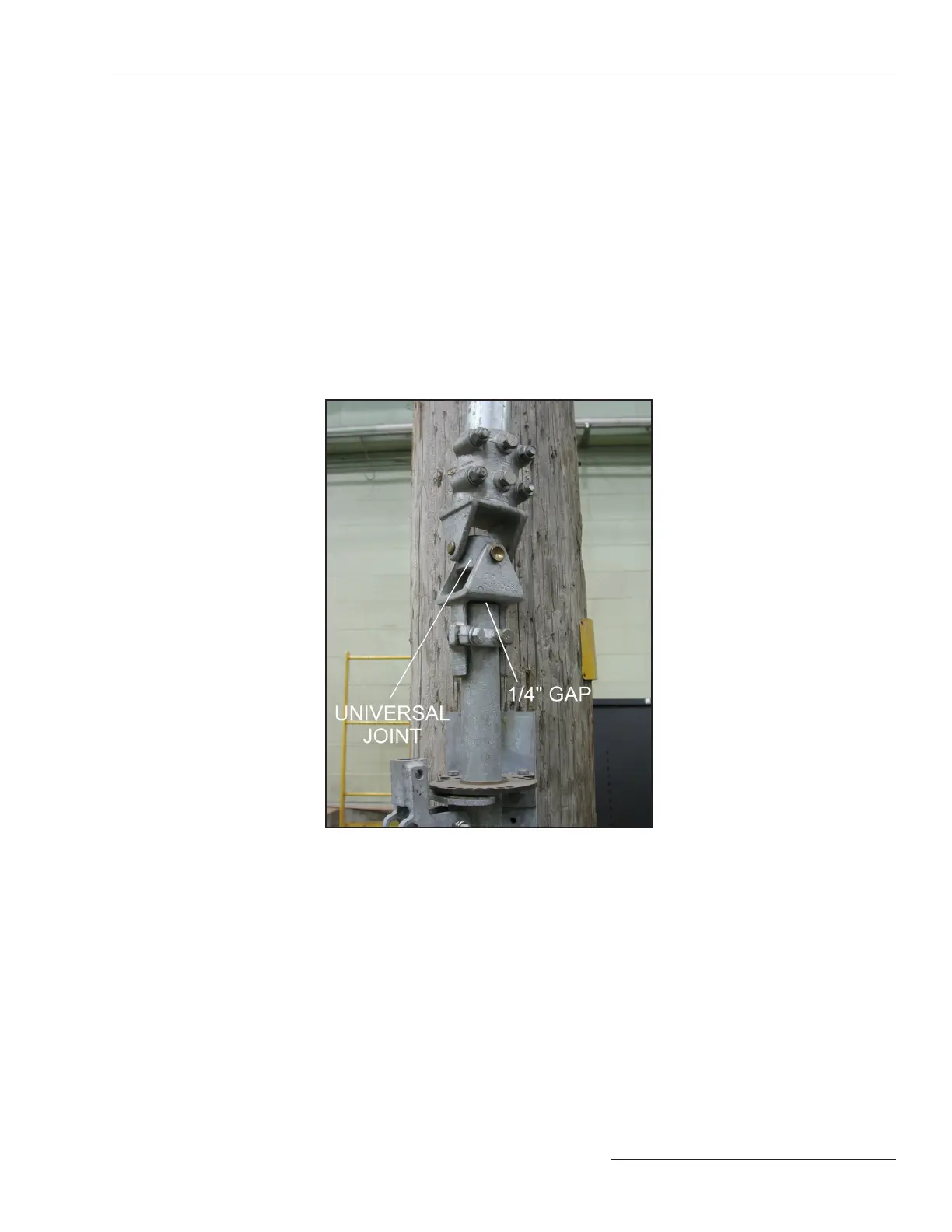

Figure 3. The universal joint showing the 1/4-inch (6-mm) gap for the bottom pipe.
