S&C 6801M User Manual

14 S&C Instruction Sheet 1045M-510
Installing the Rotating Switch Operator

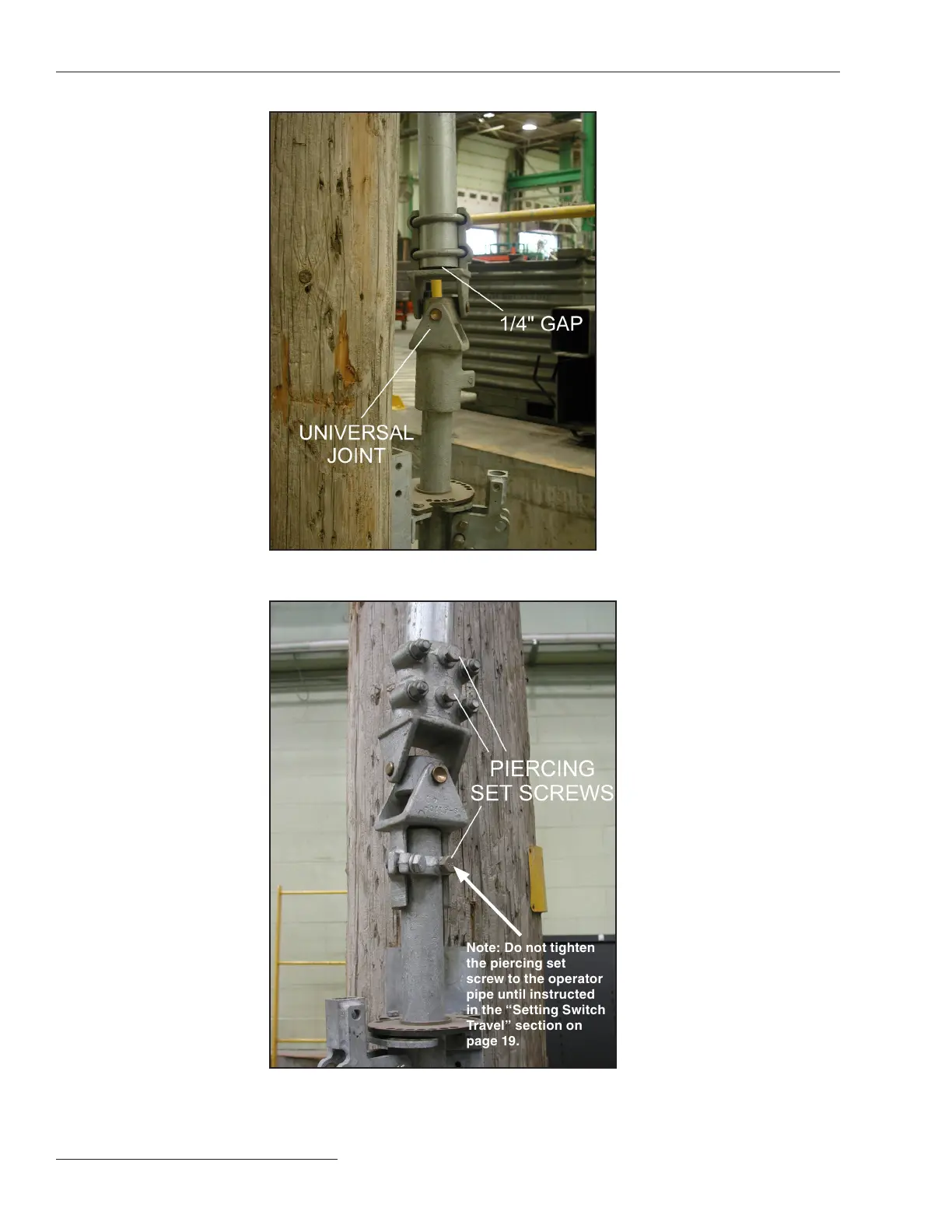

Figure 4. The universal joint showing the 1/4-inch (6-mm) gap for the top pipe.
Figure 5. The location of the piercing set screws on the universal joint.
Note: Do not tighten
the piercing set
screw to the operator
pipe until instructed
in the “Setting Switch
Travel” section on
page 19.
