S&C 6801M User Manual

S&C Instruction Sheet 1045M-510 15
Installing the Rotating Switch Operator

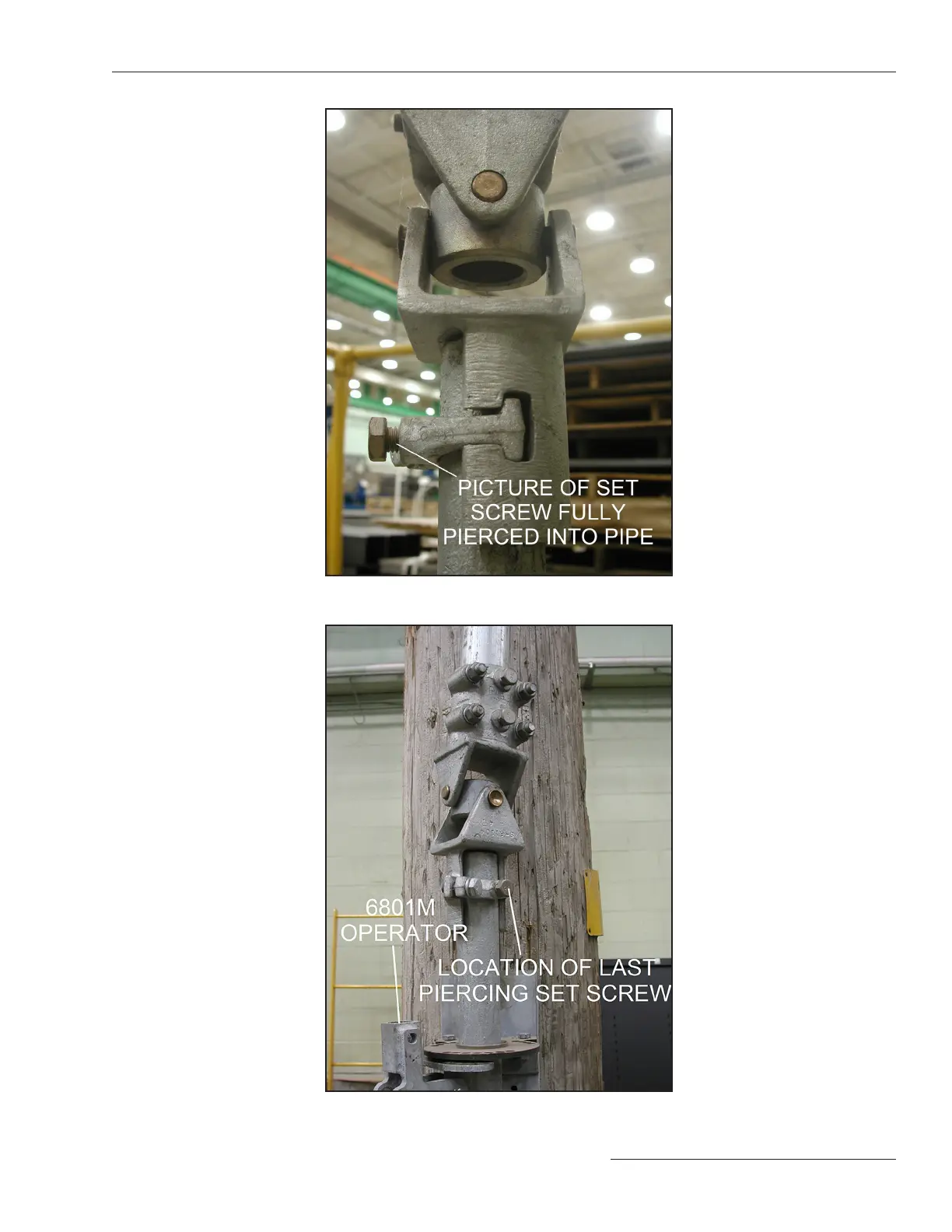

Figure 6. The fully pierced set screw does not need to be flush with the bracket.
Figure 7. The piercing set screw for the switch operator output shaft is the last to tighten.
