Installing the Rotating Switch Operator
18 1/2
(470)
30 (762)
DOUBLE-COIL
LOCK WASHER
(RECOMMENDED
FOR WOOD POLES)

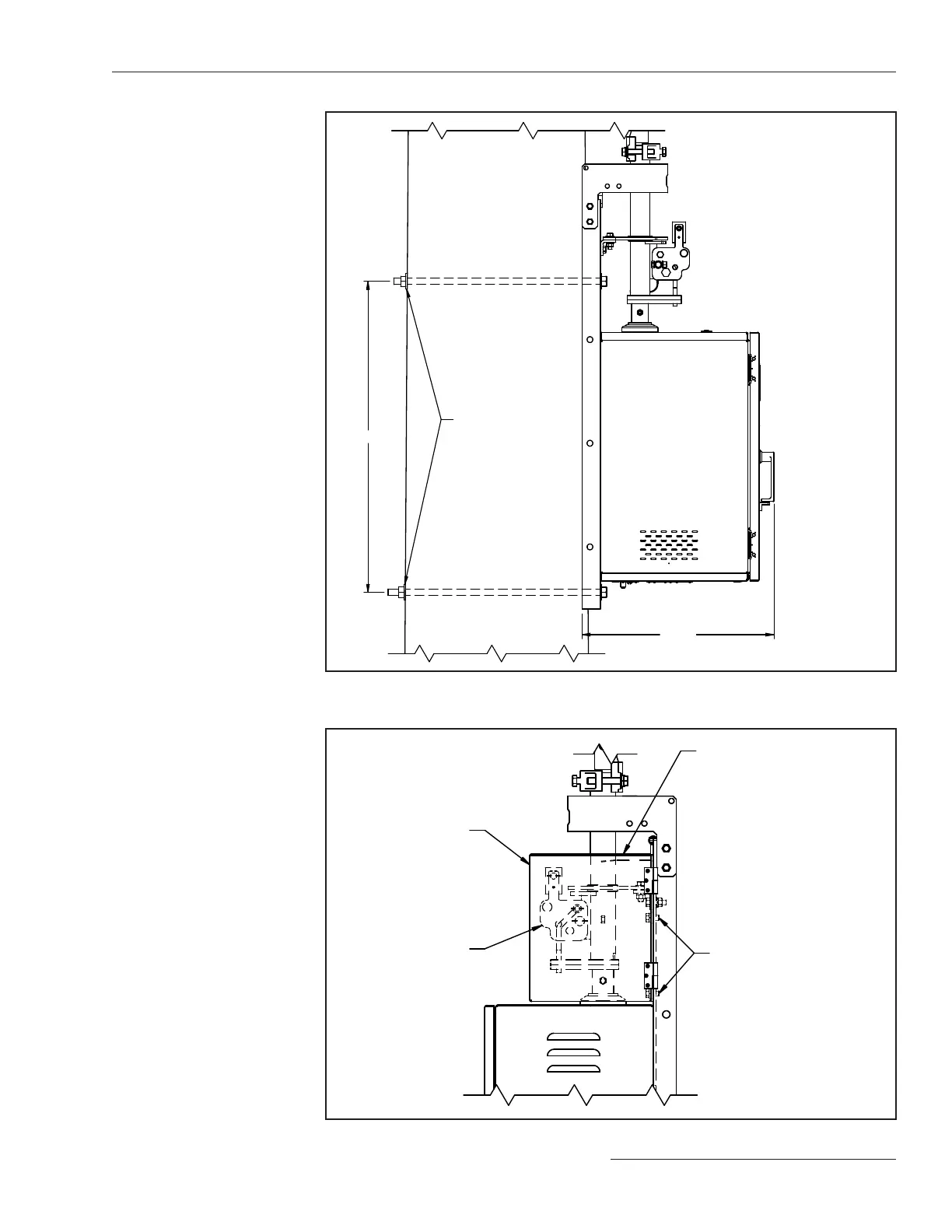

Figure 10. The side view of the rotating switch operator enclosure on pole, dimensions are
inches (mm).
SLOT IN TOP OF
SHROUD PERMITS
INSTALLATION WITHOUT
DISCONNECTING THE
CONTROL ROLD
SHROUD BOLTED
TO THE MOUNTING
CHANNEL
PROTECTIVE
SHROUD SHIELDS
THE DECOUPLING
MECHANISM
DECOUPLING
MECHANISM
ENCLOSED IN
THE SHROUD
Figure 11. The side view of optional protective shroud on rotating switch operator.
