12 S&C Instruction Sheet 761-507
Installation
STEP 11. Guide the switch so the through-bolt heads
enter into the keyhole slot and open slotted hole
in the switch base. See Figure 13.
STEP 12. Slowly lower the switch until it just bears on
the through-bolts. Fully tighten the bolts. See
Figure 14. Then remove the lifting slings.

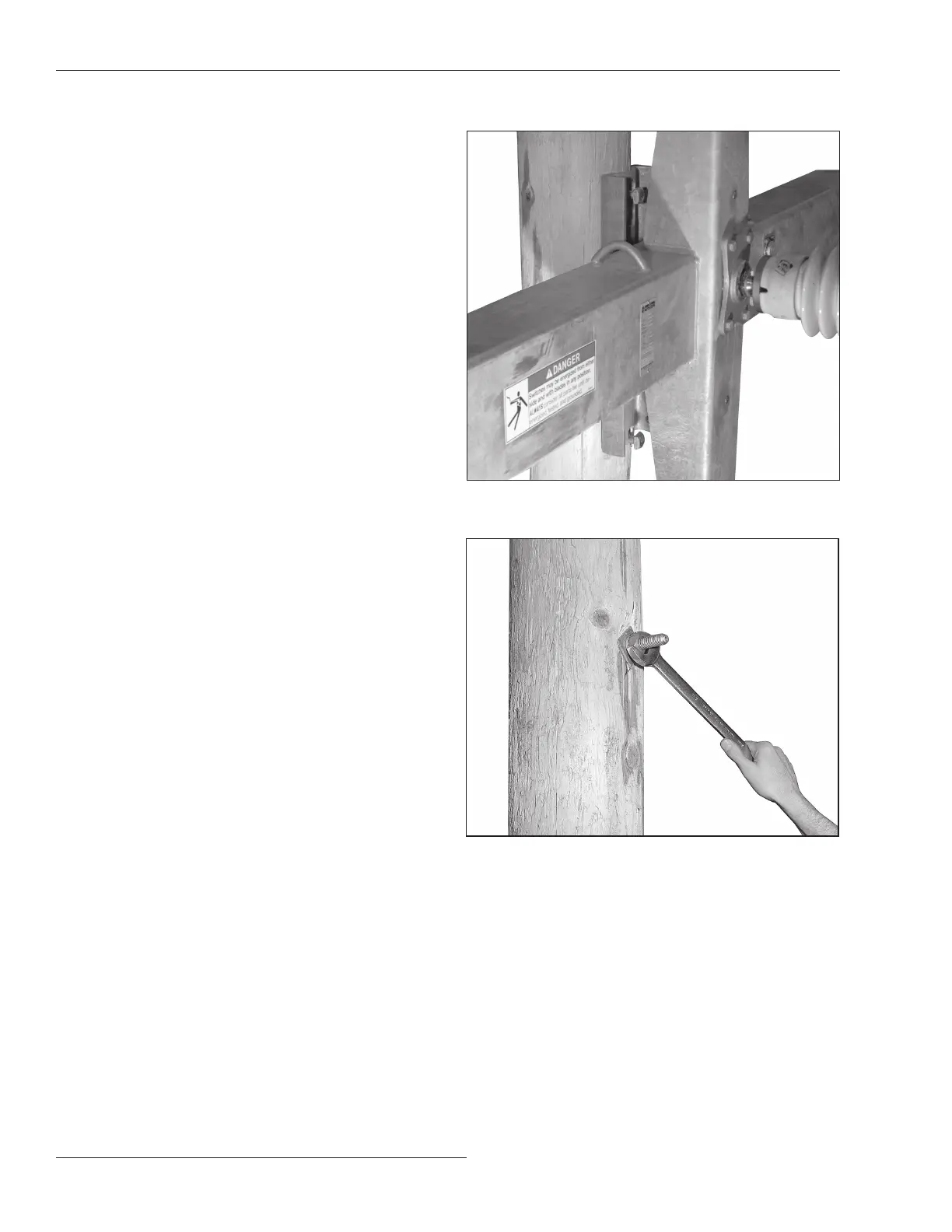

Figure 14. Bolting the switch.
Figure 13. Guiding the switch.
