S&C Vista SD - Appendix G; Touch-Up Kit Components; Appendix H; Auxiliary Contacts Connector Pinout

34 S&C Instruction Sheet 695-510
Appendix G
Table 12. Touch-Up Kit Components—Aerosol coatings in 9-ounce cans
Item Catalog Number
S&C light gray outdoor finish 9999-080
S&C olive green outdoor finish 9999-058
S&C seafoam green outdoor finish 9991363-493
S&C equipment green outdoor finish 9991363-488
S&C red-oxide primer 9999-061

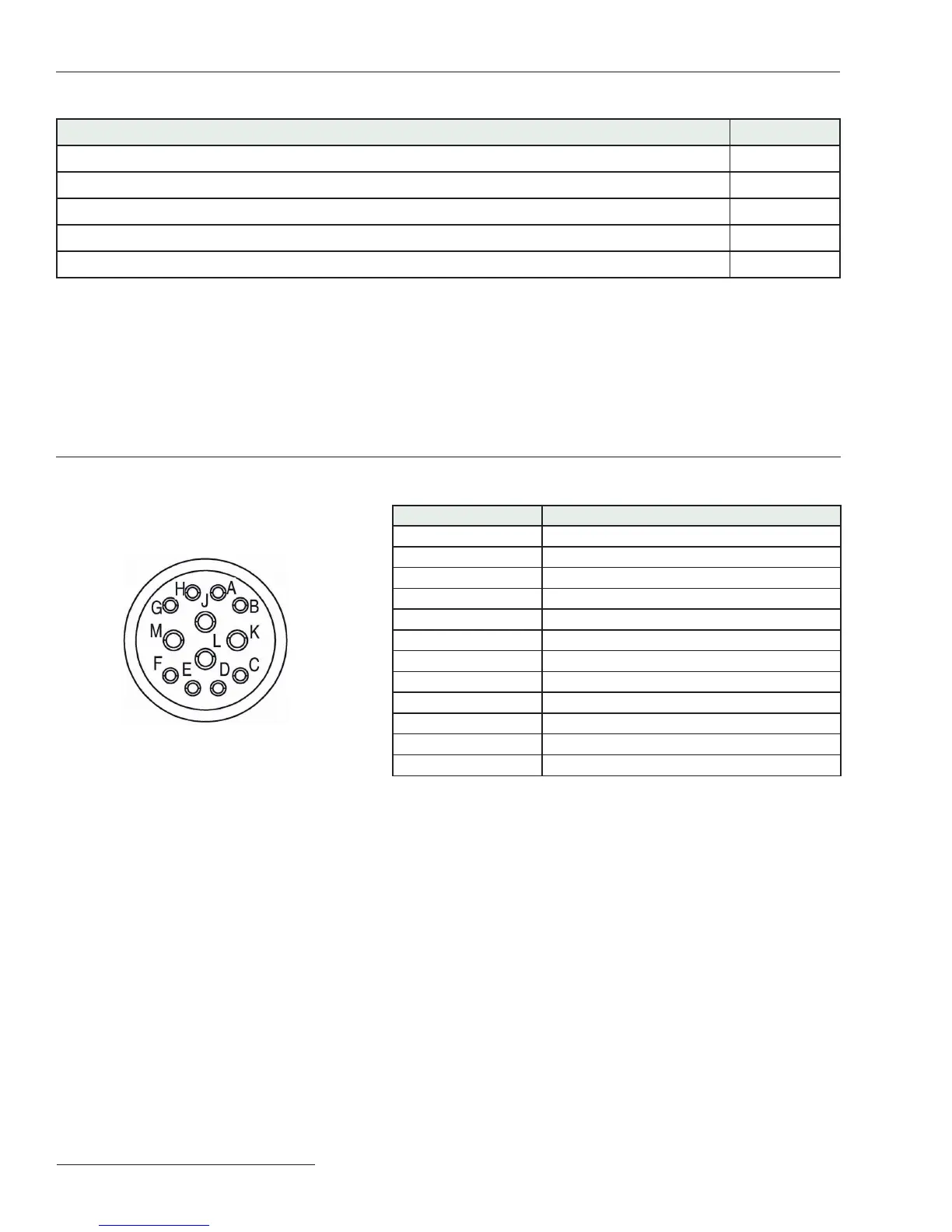

Table 13. Auxiliary Contacts Receptacle Connector
Pin # Function
A n/c
B Vacuum interrupter closed (NO)
C Vacuum interrupter closed (NC)
D Vacuum interrupter open (NO)
E Vacuum interrupter open (NC)
F Isolating disconnect closed (NO)
G Isolating dosconnect closed (NC)
H Isolating disconnect open (NO)
J Isolating disconnect open (NC)
K Common
L Shield
M n/c
Legend: n/c = no connection
Appendix H
