S&C Vista Series User Manual

Safety Information
4 S&C Instruction Sheet 681-510
Reorder Information for Safety Information
Location Safety Alert Message Description Part Number
A
WARNING
Keep Out—Hazardous Voltage Inside
G-6681
B
DANGER
Hazardous Voltage—Always Consider Circuits and Components Live . . .
G-6700
C
DANGER
Never Drill Into Tank—Hazardous Voltage, Contains Pressurized SF6 Gas
G-6682
D
DANGER
Keep Away—Hazardous Voltage (“Mr. Ouch”)
G-6699
E
WARNING
Check Gas Pressure Before Operating Switchgear
G-6686
F
WARNING
Always Test Voltage Indicator For Proper Operation
G-6689
G
WARNING
Always Visually Confirm Blade Position
G-6694
(Option “-L2”)

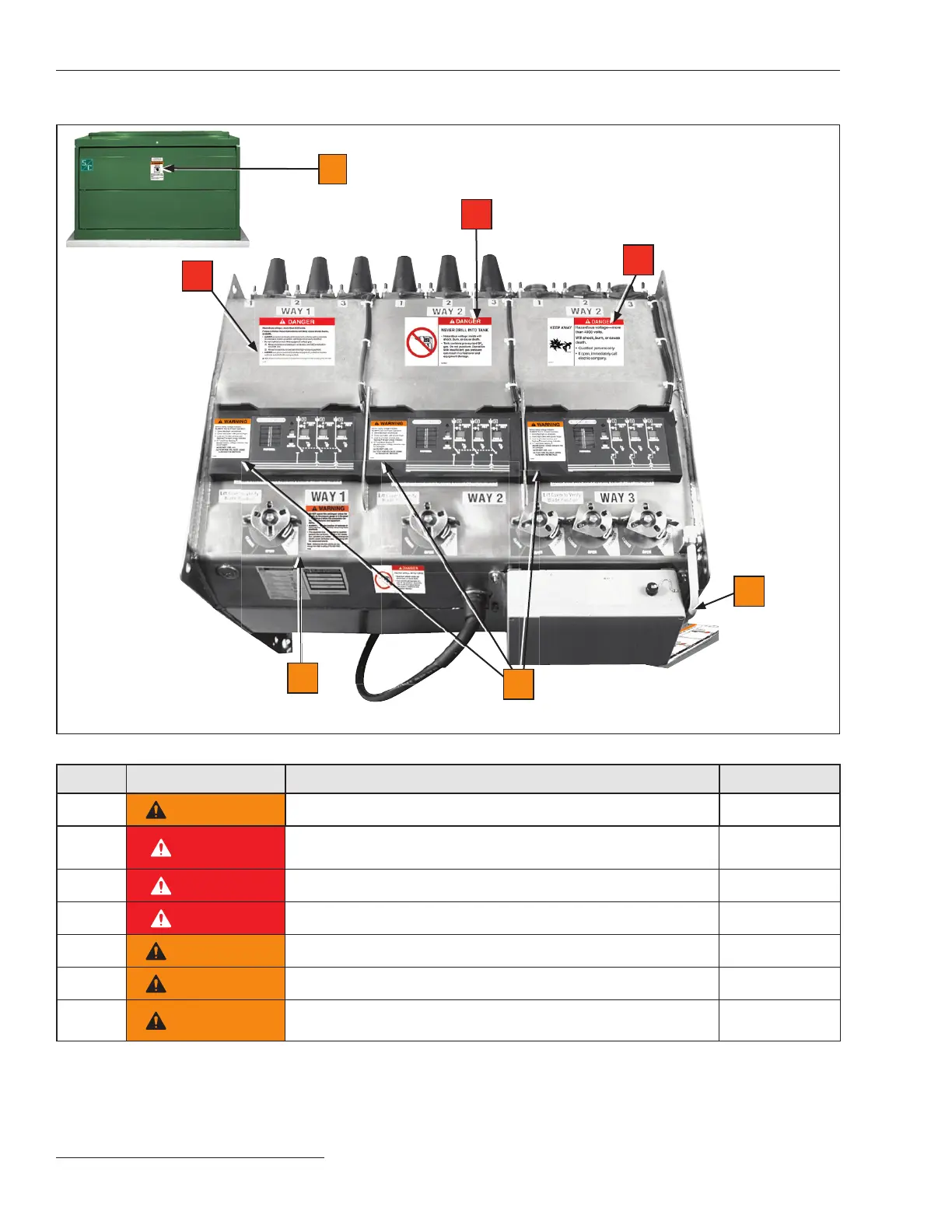

Location of Safety Labels
D
C
B
F
E
G
A

S&C Vista Series Specifications

General

Voltage Rating	Up to 38 kV
Continuous Current	600 A
Frequency	60 Hz
Interrupting Rating	Up to 25 kA
Interrupting Current	20 kA, 25 kA
BIL	95 kV, 125 kV, 150 kV
Insulation Medium	SF6
Enclosure Type	Metal-clad or Metal-enclosed
Number of Ways	2, 3, 4, 5, or 6
Switching Mechanism	Vacuum Interrupters
Operating Mechanism	Manual
Standards Compliance	IEEE C37.60
Fault Interruption	Yes
