Sandpiper S07B1P2PPNS000 User Manual

s07nmdl1sm-rev0513 Models S07 Non-Metallic Page 6

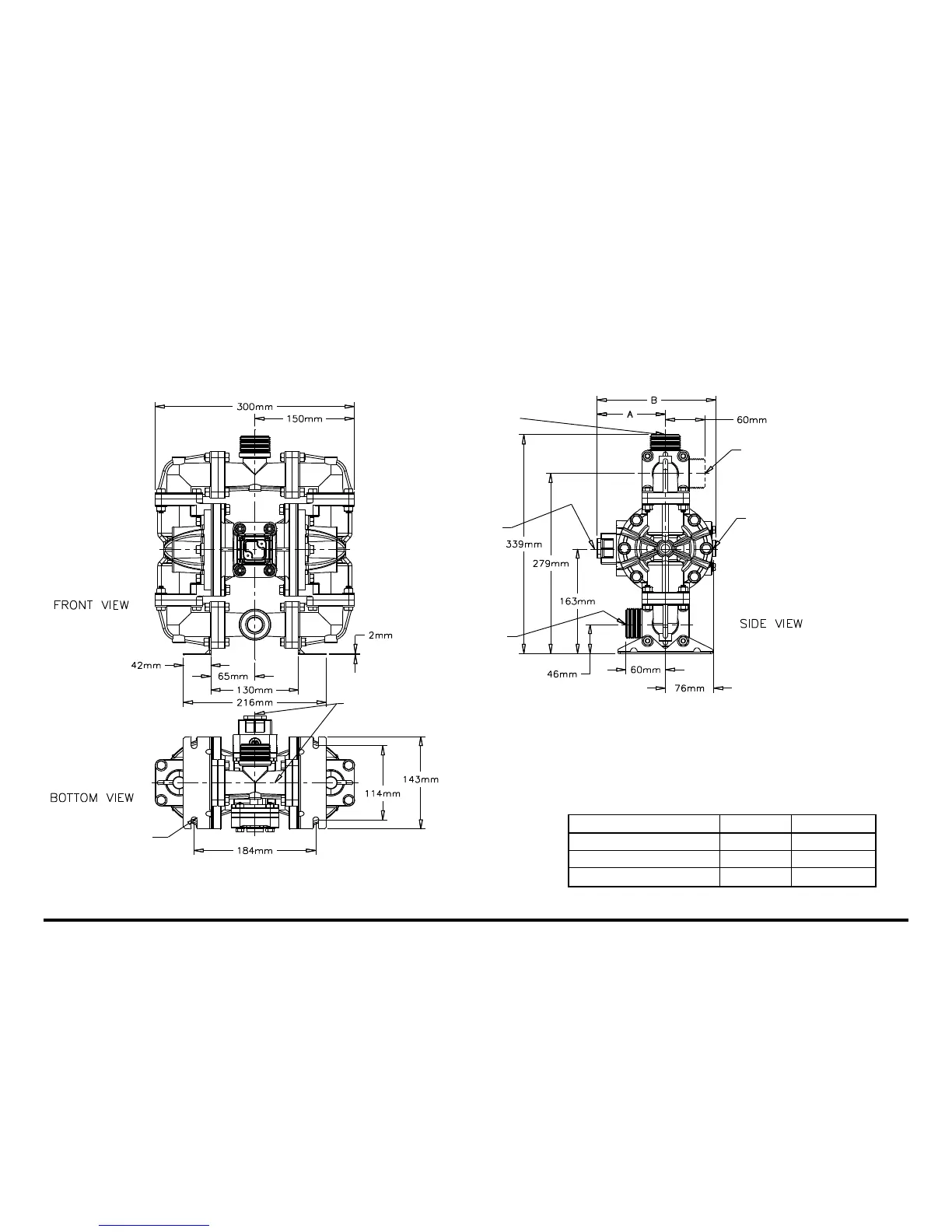

Metric Dimensions: S07 Non-Metallic
Dimensions in Millimeters
Dimensional tolerance: ±3mm
*Both Suction and
Discharge Ports are
Available In:
¾" BSPT (Tapered) (Internal)
1½" BSPT (Tapered) (External)
*Suction Port
¾" NPT (Internal)
1½" NPT (External)
Standard
Encapsulated Muffler:
3/8" NPT Exhaust Port
For Optional Muffler
Styles or Piping Exhaust
Air in Submerged
Applications.
*Discharge Port
¾" NPT (Internal)
1½" NPT (External)
Manifold can Rotate 90°
From Vertical Centerline.
Air Inlet
¼" NPT
Bolt Pattern
Is Symmetrical
About Centerlines
R5/32"
4 Places
Dimension
Standard Pump
Pulse Output Kit
Mesh Mufer
A B
103mm
179mm
103mm
224mm
146mm 222mm
