Sandpiper SA1 - Pilot Valve Assembly

sa1dl5sm-rev0217
sandpi p erpump.com
13 • Model SA1/SA25
Pilot Valve Assembly
ATEX Compliant

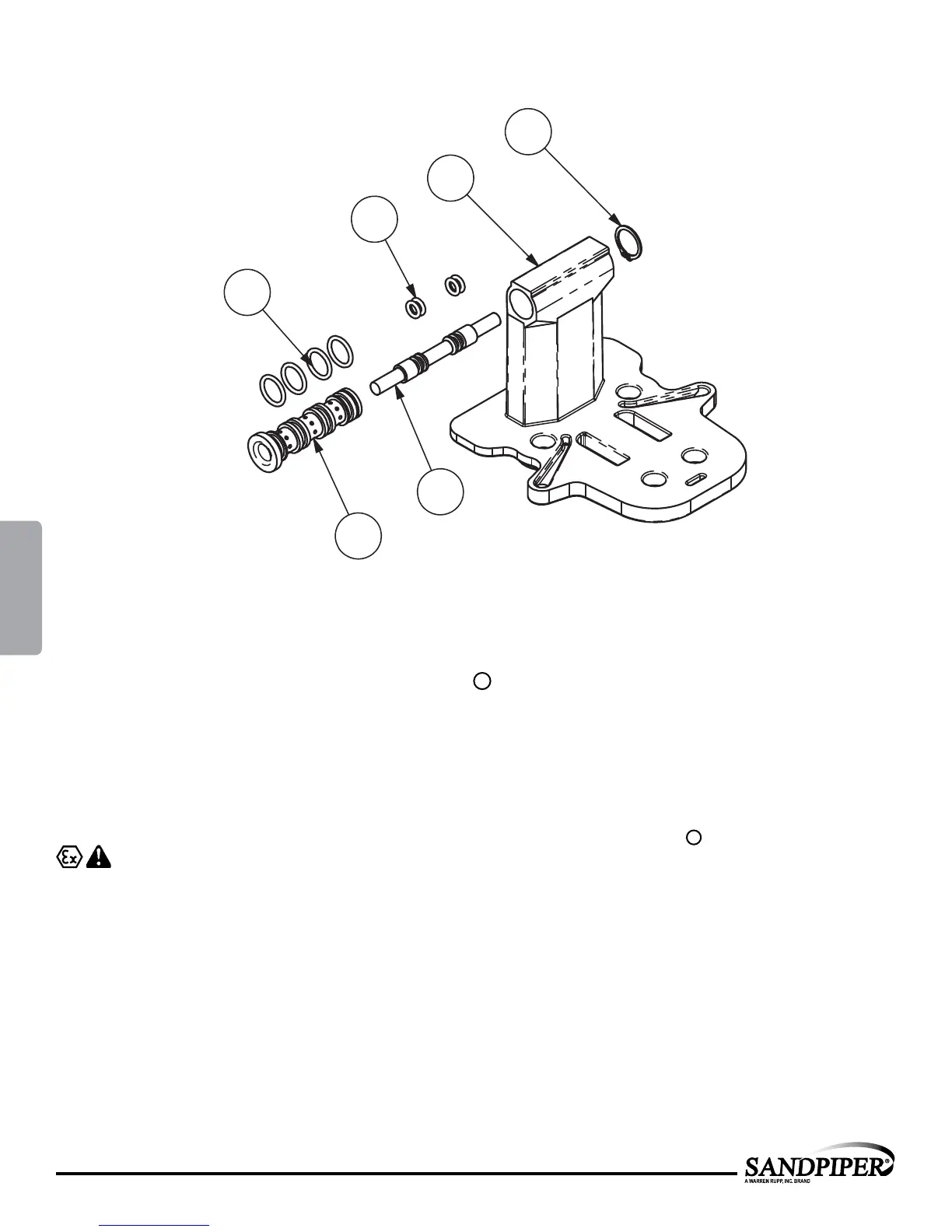

PILOT VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
3 095.074.001 Pilot Valve Assembly 1
3A 095.071.557 Pilot Valve Body 1
3B 755.025.162 Pilot Valve sleeve 1
3C 560.033.360 O-Ring 4
3D 775.014.115 Pilot Valve Spool 1
3E 560.023.360 O-Ring 4
3F 675.037.050 Retaining Ring 1
Pilot Valve Servicing
With Pilot Valve removed from pump.
Step 1: Remove snap ring (3F).
Step 2: Remove sleeve (3B), inspect O-Rings (3C),
replace if required.
Step 3: Remove spool (3D) from sleeve (3B),
inspect O-Rings (3E), replace if required.
Step 4: Lightly lubricate O-Rings (3C) and (3E).
Reassemble in reverse order.
3F
3A
3D
3B
3C
3E
LEGEND:
= Items contained within Air End Kits
MODEL SPECIFIC
4: AIR END
