Model SA1/SA25 • 4

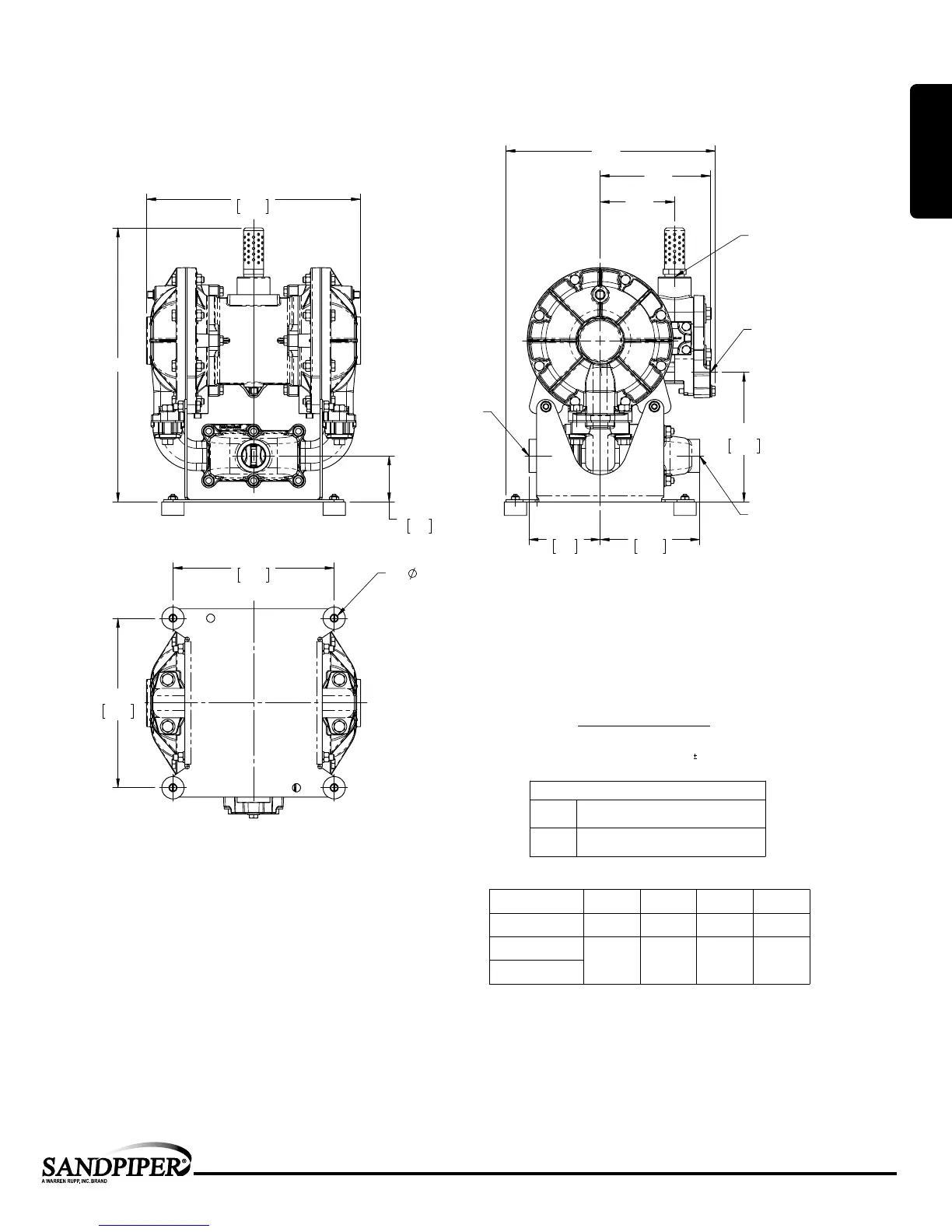

SA1 & SA25 Heavy Duty Flap Valve - Bottom Ported
Dimensions in inches (metric dimensions in brackets). Dimensional Tolerance .125" (3mm).
2.45
62
11.36
288
"D"
"A"
"B"
"C"
3.79
96
5.29
134
6.89
175
AIR EXHAUST
3/4" FNPT
DISCHARGE PORT
1" FNPT (HDF1)
1" BSPT (HDF25)
AIR INLET
1/2" FNPT
SUCTION PORT
1" FNPT (HDF1)
1" BSPT (HDF25)
9.00
229
8.56
217
4X
.28 [7] MOUNTING HOLE
NOTE:
UNIT FURNISHED WITH SUB-BASE PLATE
AND RUBBER FEET AS STANDARD. FOR
STATIONARY BOLT DOWN USE, RUBBER
FEET CAN BE REMOVED.
SA1 / SA25
HEAVY DUTY FLAP VALVE PUMP
BOTTOM PORTED
DIMENSIONAL TOLERANCE 1/8 [3]
[XX] = MILLIMETERS
PUMP
COFIGURATION
DIM "A" DIM "B" DIM "C" DIM "D"
ALUMINUM
CENTER SECTION
3.95 [100] 5.86 [149] 11.11 [282] 14.55 [370]
CAST IRON
CENTER SECTION
4.10 [104] 5.54 [141] 11.26 [286] 15.75 [400]
PULSE OUTPUT
CONFIGURATION
SUCTION & DISCHARGE CONNECTIONS
SA1
1" NPT FEMALE THREADED
CONNECTIONS
SA25
1" BSP TAPERED FEMALE THREADED
CONNECTIONS
Dimensional Drawings
1: PUMP SPECS
