9 Connectors

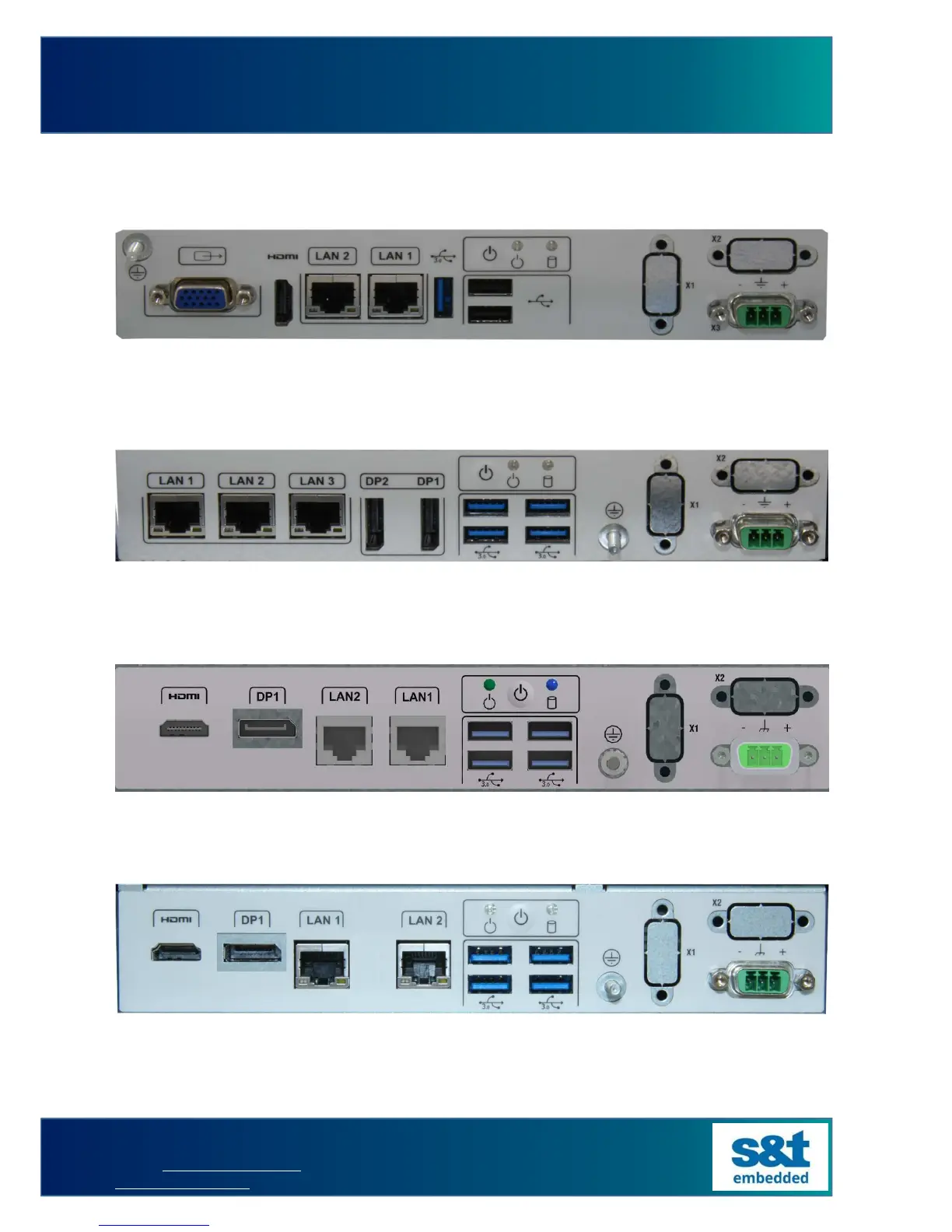

9.1 Panel PC BayTrail variant
fig. 23: Peripherie Panel BayTrail variant
9.2 Panel PC Haswell variant
fig. 24: Peripherie Panel Haswell variant
9.3 Panel PC Apollo Lake variant
fig. 25: Peripherie Panel Apollo Lake variant
9.4 Panel PC Skylake / Kaby Lake variant
fig. 26: Peripherie Panel Skylake variant
