Screw adapter into the other
side of Perform-Max Feeder.
Hand tighten. Finish
tightening by turning
1 to 2 revolutions
with a pipe wrench.
DO NOT OVER TIGHTEN.
5.
TOOLS NEEDED
Screwdriver
Pipe Wrench
MATERIALS NEEDED
Pipe Thread Tape
or Sealant
One 6” x 1½” TBE PVC
Nipple
One Hose Adapter
1½” X 1½” X 1¼”
One Section of
1½” or 1¼” Flex Hose
(provided with lter)
One
Hose Clamp
RECOMMENDED
4-8 psi Back Pressure
To avoid over or under
chlorination, replace eyeball
ttings in the return jets to a
smaller or larger size to adjust
back pressure. For best results
use King Technology’s pressure
gauge, order part number
01-22-4000.

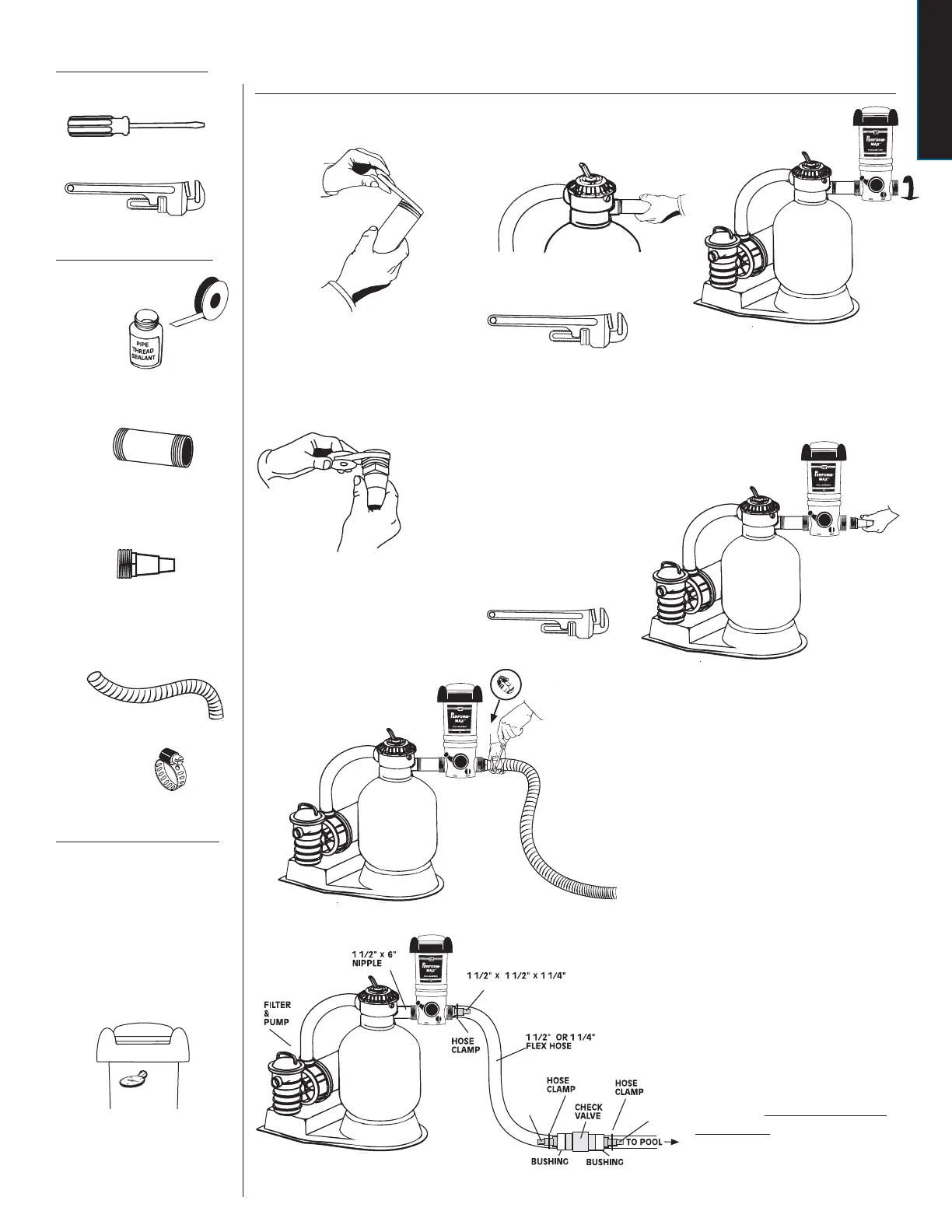

Filter Flex-Hose Installation - Model 920
Apply pipe thread tape or sealant
to each threaded end of nipple.
Screw one end of nipple
into the lter return.
Hand tighten. Finish tightening
by turning 1 to 2 revolutions
with a pipe wrench.
DO NOT OVER TIGHTEN.
Screw either side of
Perform-Max Feeder on
to open nipple end until
upright and secure.
Apply pipe thread tape or
sealant to threaded end of
hose adapter.
3.
4.
6.
Attach return section of hose to
the adapter with clamp. Tighten
clamp with screwdriver.
7.
To prevent damage to heaters
or lters, see your dealer about
installing a corrosion resistant
check valve which will reduce the
back ow of chlorine gas when
the Perform-Max Feeder is turned
off.
2.
1.
HOSE
ADAPTER
HOSE
ADAPTER
HOSE ADAPTER
