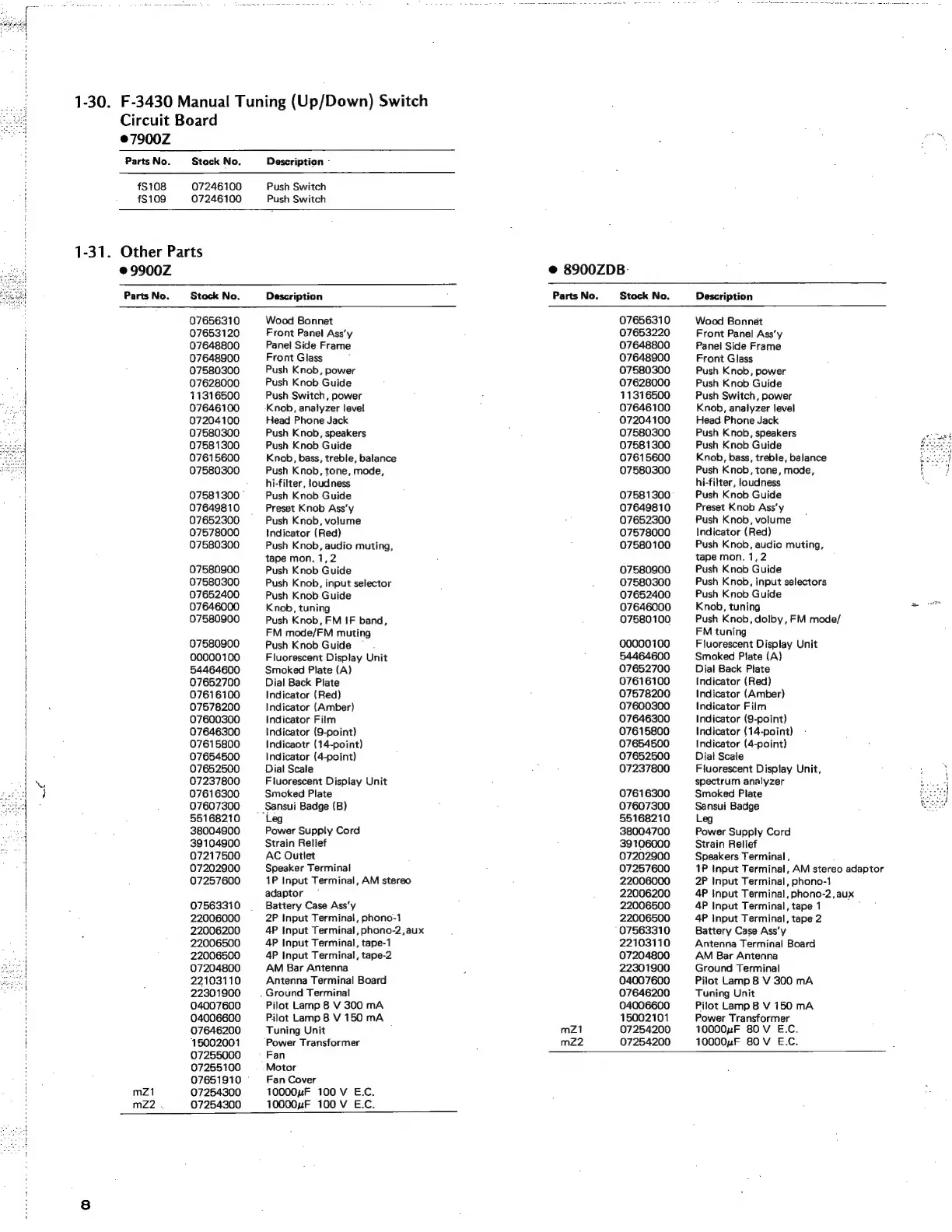

1-30. F-3430 Manual Tuning (Up/Down) Switch
Circuit Board _
©7900Z
:
.
|
.
Parts No. Stock No. Description -
$108 07246100 Push Switch
! . #$109 07246100 Push Switch
1-31. Other Parts
@ 9900Z @ 8900ZDB.
Parts No. Stock No. Description : Parts No. Stock No. Description
07656310 Wood Bonnet 07656310 Wood Bonnet
: 07653120 Front Panel Ass’y 07653220 Front Panel Ass’y
i 07648800 Panel Side Frame 07648800 Panel Side Frame
| 07648900 Front Glass é 07648900 Front Glass
eof 07580300 Push Knob, power 07580300 Push Knob, power
| 07628000 Push Knob Guide 07628000 Push Knob Guide
| 11316500 Push Switch, power : 11316500 Push Switch, power
| 07646100 Knob, analyzer level : 07646100 Knob, analyzer level
: | 07204100 Head Phone Jack 07204100 Head Phone Jack
\ 07580300 Push Knob, speakers , 07580300 Push Knob, speakers
07581300 Push Knob Guide 07581300 Push Knob Guide
07615600 Knob, bass, treble, balance 07615600 Knob, bass, treble, balance
07580300 Push Knob, tone, mode, 07580300 Push Knob, tone, mode,
: hi-filter, loudness hi-filter, loudness
i 07581300" Push Knob Guide 07581300 Push Knob Guide
i 07649810 Preset Knob Ass‘y 07649810 Preset Knob Ass’y
i 07652300 Push Knob, volume : 07652300 Push Knob, volume
l 07578000 Indicator (Red) 07578000 Indicator (Red)
| 07580300 Push Knob, audio muting, 07580100 Push Knob, audio muting,
' tape mon. 1,2 tape mon. 1,2
: 07580900 Push Knob Guide 07580900 Push Knob Guide
07580300 Push Knob, input selector : 07580300 Push Knob, input selectors
1 07652400 Push Knob Guide 07652400 Push Knob Guide
07646000
Knob,
tuning
07646000
Knob,
tuning
-_—
; 07580900 Push Knob, FM IF band, 07580100 Push Knob, dolby, FM mode/
i FM mode/FM muting FM tuning
' 07580900 Push Knob Guide : 00000100 Fluorescent Display Unit
{ 00000100 Fluorescent Display Unit 54464600 Smoked Plate (A)
54464600 Smoked Plate (A} 07652700 Dial Back Plate
07652700 Dial Back Plate 07616100 Indicator (Red)
07616100 Indicator (Red) 07578200 Indicator (Amber)
| : 07578200 Indicator (Amber) 07600300 Indicator Film
07600300 Indicator Film 07646300 Indicator (9-point)
| 07646300 Indicator {9-point) 07615800 Indicator (14-point)
| 07615800 Indicaotr (14-point) 07654500 Indicator (4-point)
07654500 Indicator (4-point) 07652500 Dial Scale
\ 07652500 Dial Scale if 07237800 Fluorescent Display Unit, » oY
07237800 Fluorescent Display Unit . spectrum analyzer : y
07616300 Smoked Plate 07616300 Smoked Plate
07607300 — Sansui Badge (B) . 07607300 Sansui Badge
55168210 “Leg 55168210 Leg
38004900 Power Supply Cord 38004700 Power Supply Cord
2 39104900 Strain Relief 39106000 Strain Relief
| 07217500 AC Outlet 07202900 Speakers Terminal, .
| 07202900 Speaker Terminal 07257600 1P Input Terminal, AM stereo adaptor
1 07257600 1P Input Terminal, AM stereo 22006000 2P Input Terminal, phono-1
adaptor — 22006200 4P Input Terminal, phono-2, aux
! 07563310 — Battery Case Ass‘y 22006500 4P Input Terminal, tape 1 ,
i 22006000 2P Input Terminal, phono-1 22006500 4P Input Terminal, tape 2
22006200 4P Input Terminal, phono-2,aux 07563310 Battery Case Assy
22006500 4P Input Terminal, tape-1 22103110 Antenna Terminal Board
22006500 4P Input Terminal, tape-2 07204800 AM Bar Antenna
07204800 AM Bar Antenna . 22301900 Ground Terminal
22103110 Antenna Terminal Board 04007600 Pilot Lamp 8 V 300 mA
22301900 . Ground Terminal 07646200 Tuning Unit
04007600 Pilot Lamp 8 V 300 mA 04006600 Pilot Lamp 8 V 150 mA
‘ 04006600 Pilot Lamp 8 V 150 mA 15002101 Power Transformer
\ 07646200 Tuning Unit : mZ1 07254200 10000uF 80 V E.C.
i 15002001 ‘Power Transformer ; mZ2 07254200 10000uF 80 V E.C.
07255000 = Fan
07255100 ~—- Motor
to 07651910 ° Fan Cover
| mZ1 07254300 10000uF 100 V E.C.
mZ2. 07254300 10000uF 100 V E.C.
