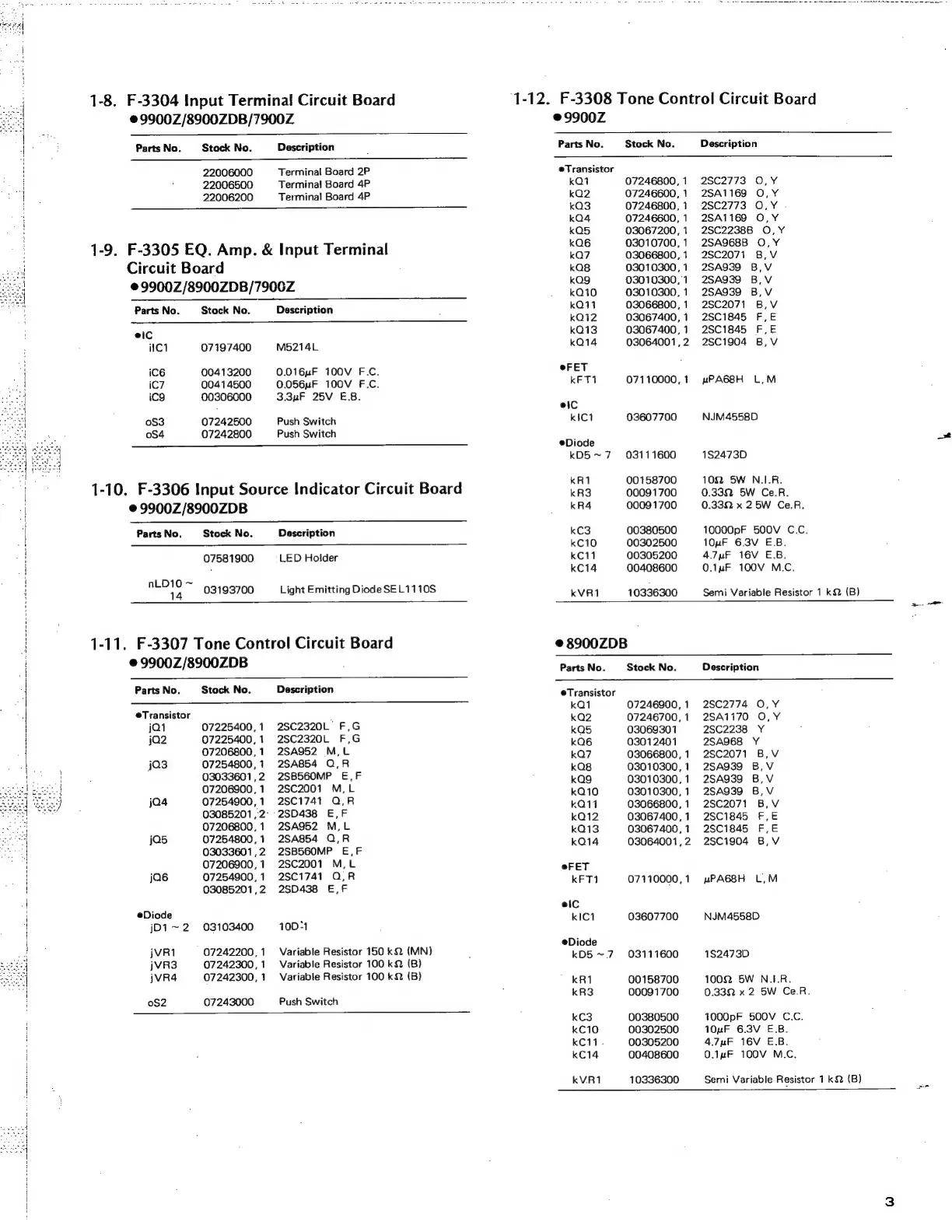

Sansui 7900Z - Parts List; F-3305 EQ. Amp. & Input Terminal Circuit Board Parts

1-8. F-3304 Input Terminal! Circuit Board
©9900Z/8900ZDB/7900Z
a ; Parts No. Stock No. Description
22006000 Terminal Board 2P
4
22006500
Terminal
Board
4P
22006200 Terminal Board 4P
1-9. F-3305 EQ. Amp. & Input Terminal
Circuit Board
©9900Z/8900ZDB/7906Z
Parts No. Stock No. Description
IC
i1C1 07197400 M5214L
iC6 00413200 0.016uF 100V F.C.
iC7 00414500 0.056uF 100V F.C.
ic9 00306000 3.3uF 25V E.B.
oS3 07242500 Push Switch
oS4 07242800 Push Switch
1-10. F-3306 Input Source Indicator Circuit Board
® 9900Z/8900ZDB
Parts No. Stock No. Description
07581900 — LED Holder
ee 03193700 _Light Emitting Diode SEL1110S
1-11. F-3307 Tone Control Circuit Board
|
/
I
,
|
i
|
i
|
|
|
|
?
© 9900Z/8900ZDB
Parts No. Stock No. Description
eTransistor
jal 07225400,1 2SC2320L’ F,G
jQ2 07225400,1 2SC2320L F,G
07206800,1 2SA952 M,L
, jQ3 07254800,1 2SA854 O0,R
‘
03033601,2
2SB560MP
E,F
07206900,1 2SC2001 M,L
jQa4 07254900,1 2SC1741 Q,R
03086201 2: -2SD438 E,F
07206800,1 2SA952 M,L
jos 07254800,1 2SA854 Q,R
03033601,2 2SB560MP E,F
07206900,1 2SC2001 M,L
ja6 07254900,1 2SC1741 Q,R
03085201,2 2SD438 E,F
i eDiode
jD1~2 03103400 10071
: jVR1 07242200,1 Variable Resistor 150 k2 (MN)
jVR3 07242300,1 Variable Resistor 100 k2 (B)
jVR4 07242300,1 Variable Resistor 100 k& (B)
oS2 07243000 Push Switch
i
/
|
|
1-12. F-3308 Tone Control Circuit Board
@ 9900Z
Parts No. Stock No. Description
eTransistor
kQ1 07246800,1 2SC2773 0,Y
kQ2 07246600,1 2SA1169 0O,Y
kQ3 07246800,1 2SC2773 0,Y
kQ4 07246600,1 2SA1169 O,Y
kQ5 03067200,1 2SC2238B O, Y
kQ6 03010700,1 2SA968B 0O,Y
kQ7 03066800,1 2SC2071 B,V
kQs 03010300,1 2SA939 B,V
kOQ 03010300,1 2SA939 B,V
kQ10 03010300,1 2SA939 B,V
kQ11 03066800,1 2SC2071 B,V
kQi2 03067400,1 2SC1845 F,E
kQ13 03067400,1 2SC1845 F,E
kQ14 03064001,2 2SC1904 B,V
eFET
kFT1 07110000,1 pwPA68H L.M
eiC
kIC1 03607700 NJM4558D
eDiode
kD5~7 03111600 1$2473D
kR1 00158700 109 5W N.I.R.
kR3 00091700 0.332 5W Ce.R.
kR4 00091700 0.3392 x 2 5W Ce.R.
kC3 00380500 10000pF 500V CC.
kC10 00302500 10uF 6.3V E.B.
kC11 00305200 47uF 16V E.B.
kC14 00408600 O.1uF 100V MC.
kVR1 10336300 Semi Variable Resistor 1 k® (B)
@ 8900ZDB
Parts No. Stock No. Description
eTransistor
kQ1 07246900,1 2SC2774 0,Y
kQ2 07246700,1 2SA1170 0,Y
kQ5 03069301 2SC2238 Y
kQ6 03012401 2SA968 Y
kQ7 03066800,1 2SC2071 B,V
kQ8 03010300,1 2SA939 B,V
kQ9Q 03010300,1 2SA939 B,V
kQ10 03010300,1 2SA939 B,V
kQ11 03066800,1 2SC2071 B,V
kQ12 03067400,1 2SC1845 F,E
kQ13 03067400,7 2SC1845 F,E
kQ14 03064001,2 2SC1904 B,V
eFET
kFT1 07110000,1 wPA68H L,M
eiC
kIC1 03607700 NJM4558D
eDiode
kD5~7 03111600 1$2473D
kR1 00158700 1002 5W N.ILR.
kR3 00091700 0.332 x 2 5W Ce.R.
kC3 00380500 TOOOpF SOOV C.C.
kC10 00302500 10uF 6.3V E.B.
kC11- 00305200 4.7uF 16V E.B.
kC14 00408600 O.1pF 100V M.C.
kV.R1 10336300 Semi Variable Resistor 1k2 (B)
