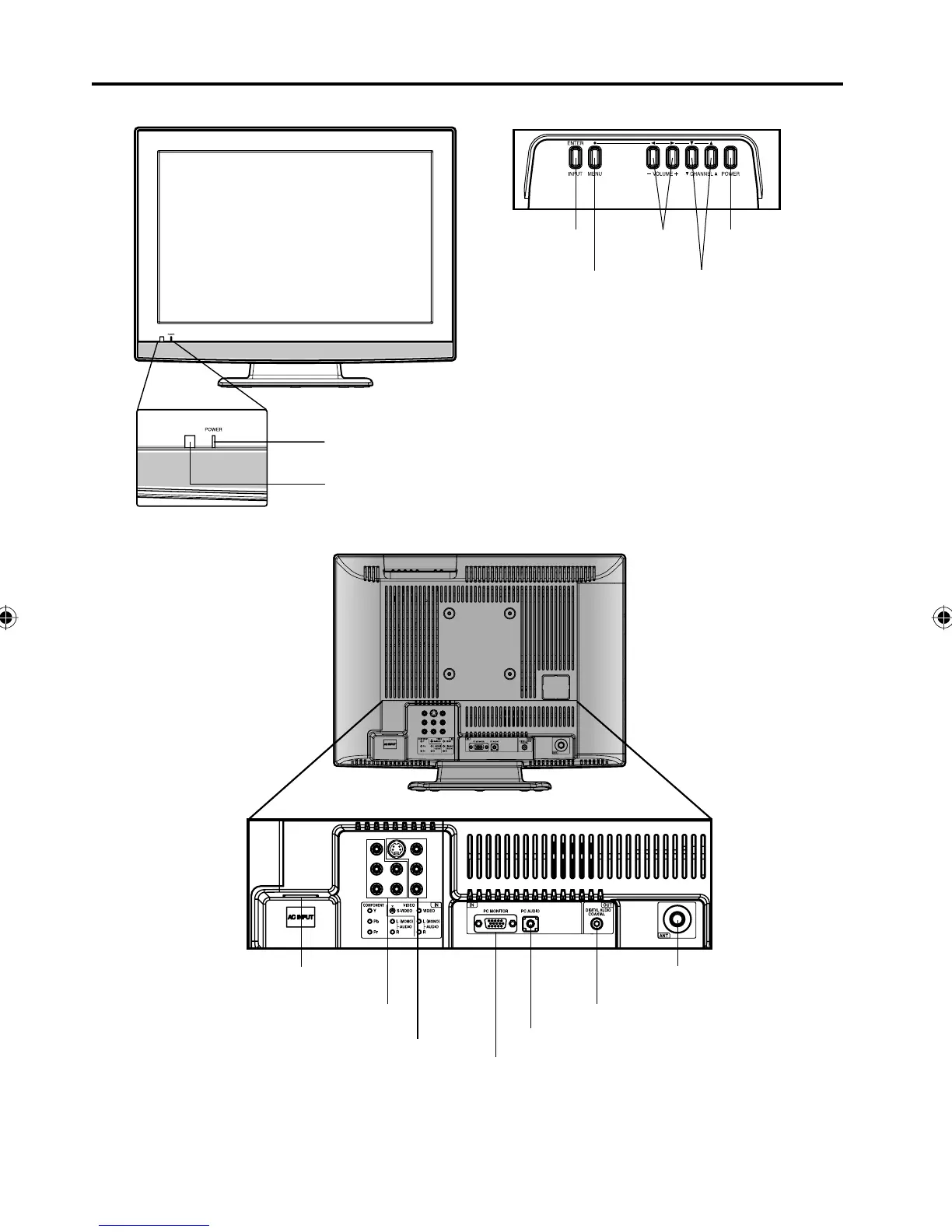

Parts and functions
Remote sensor
POWER indicator
Red: Standby
Green: On
RF (ANT) IN jack
PC MONITOR IN jack
Front Top
Rear side
To display the menu screen.
Press MENU button to display the menu screen.
CHANNEL ▲/▼ buttons,
VOLUME +/– buttons and ENTER/INPUT button can be used to select the desired
setting during the menu screen operations.
VOLUME
+/– buttons
CHANNEL ▼/▲ buttonsMENU button
INPUT/ENTER
button
POWER button
AC INPUT jack
COAXIAL DIGITAL AUDIO OUT jack
PC AUDIO jack
VIDEO IN jacks
(VIDEO/S-VIDEO/AUDIO (L/R))
COMPONENT/AUDIO (L/R) IN jacks
