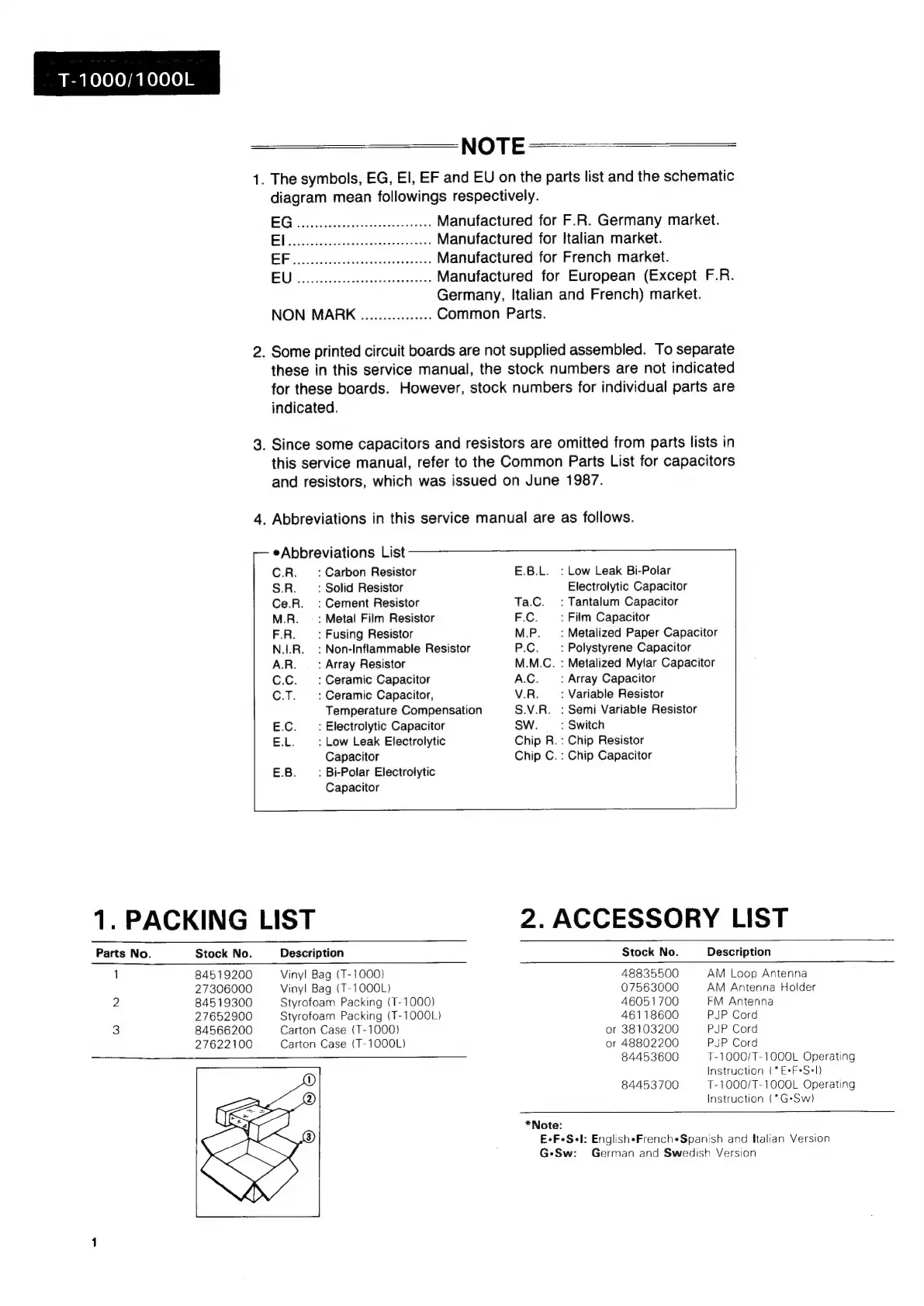

Sansui T-1000 - Packing List; Accessory List

T-1000/1000L
NOTE
1.
The
symbols,
EG,
El,
EF
and
EU
on
the
parts
list
and
the
schematic
diagram
mean
followings
respectively.
NON MARK ................ Common Parts.
Manufactured for F.R. Germany market.
Manufactured for Italian market.
Manufactured for French market.
Manufactured for European (Except F.R.
Germany, Italian and French) market.
2. Some printed circuit boards are not supplied assembled. To separate
these in this service manual, the stock numbers are not indicated
for these boards. However, stock numbers for individual parts are
indicated.
3. Since some capacitors and resistors are omitted from parts lists in
this service manual, refer to the Common Parts List for capacitors
and resistors, which was issued on June 1987.
4. Abbreviations in this service manual are as follows.
r-— eAbbreviations List
C.R. _: Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. — : Solid Resistor Electrolytic Capacitor
Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. _ : Metal Film Resistor F.C. : Film Capacitor
F.R. — : Fusing Resistor M.P. _: Metalized Paper Capacitor
N.I.R. : Non-Inflammable Resistor P.C. : Polystyrene Capacitor
A.R. _ : Array Resistor M.M.C. : Metalized Mylar Capacitor
C.C. —_: Ceramic Capacitor A.C. —_: Array Capacitor
C.T. : Ceramic Capacitor, V.R. — : Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor
E.C. _: Electrolytic Capacitor SW. — : Switch
E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor
E.B. : Bi-Polar Electrolytic
Capacitor
1. PACKING LIST 2. ACCESSORY LIST
Parts No. Stock No. Description Stock No. Description
1 84519200 Vinyl Bag (T-1000) 48835500 AM Loop Antenna
27306000 Vinyl Bag (T-1000L) 07563000 AM Antenna Holder
2 84519300 Styrofoam Packing (T-1000) 46051700 FM Antenna
27652900 Styrofoam Packing (T-1000L) 46118600 PJP Cord
3 84566200 Carton Case (T-1000) or 38103200 PJP Cord
27622100 Carton Case (T-1000L) or 48802200 PJP Cord
84453600 T-1000/T-1000L Operating
Instruction (*E*F*S+l)
84453700 T-1000/T-1000L Operating
Instruction (*G*Sw)
*Note:
E-FeSel: EnglisheFrench*Spanish and Italian Version
G-Sw:
German and Swedish Version
