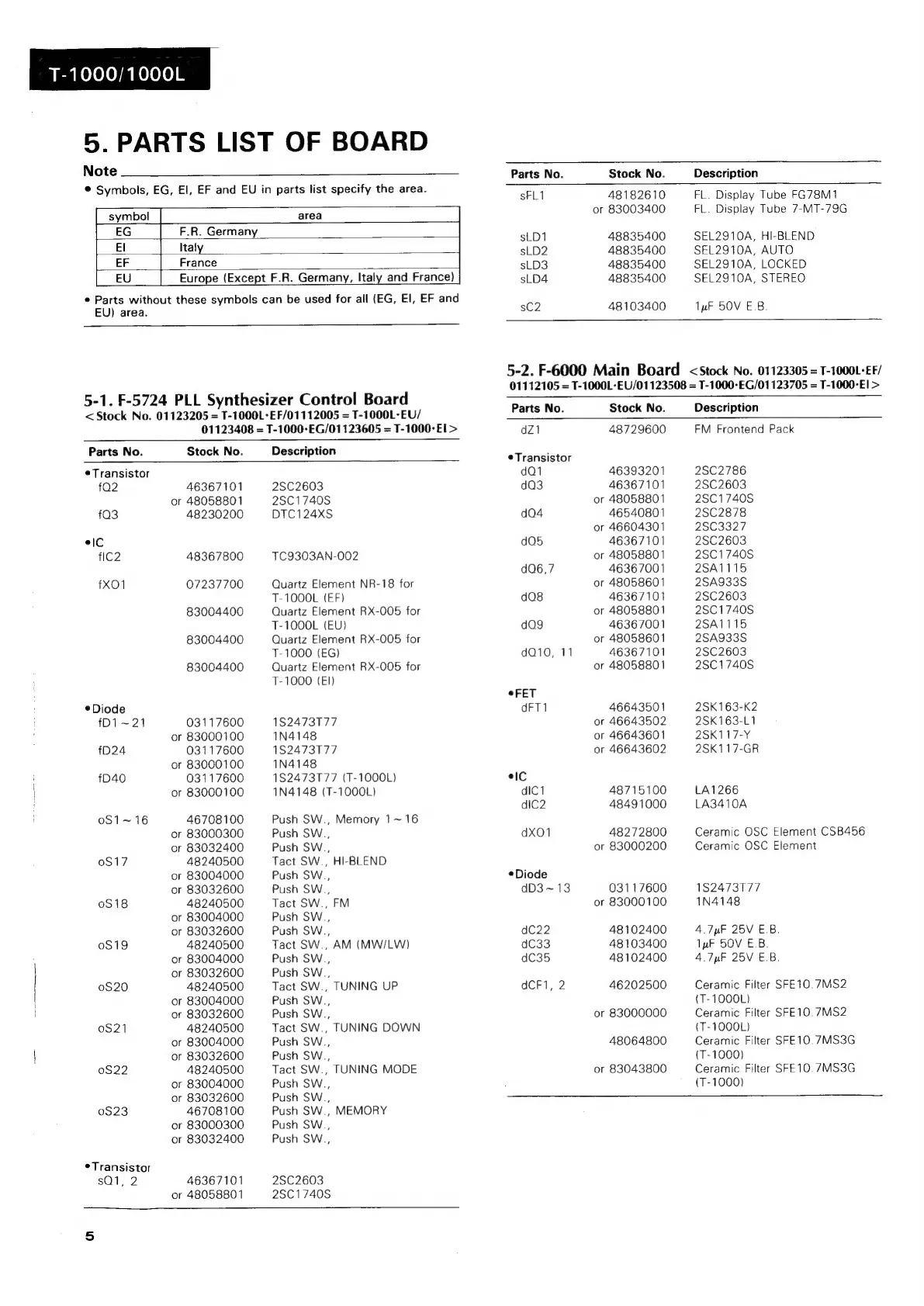

5. PARTS LIST OF BOARD
Note
® Symbols, EG, El, EF and EU in parts list specify the area.
[ symbol area
EG F.R. Germany
El Italy
EF | France
EU Europe (Except F.R. Germany, Italy and France)
© Parts without these symbols can be used for all (EG, El, EF and
EU) area.
Parts No. Stock No. Description
sFL1 48182610 FL. Display Tube FG78M1
or 83003400 FL. Display Tube 7-MT-79G
sLD1 48835400 SEL2910A, HI-BLEND
sLD2 48835400 SEL2910A, AUTO
sLD3 48835400 SEL2910A, LOCKED
sLD4 48835400 SEL2910A, STEREO
sC2 48103400 lpF 5OV E.B.
5-1. F-5724 PLL Synthesizer Control Board
<Stock No. 01123205 = T-1000L:EF/01112005 = T-1000L-EU/
01123408 = T-1000-EG/01123605 = T-1000-EI >
Parts No. Stock No. Description
¢Transistor
fO2 46367101 2SC2603
or 48058801 2SC1740S
f03 48230200 DTC124XS
*IC
fIC2 48367800 TC9303AN-002
fXO1 07237700 Quartz Element NR-18 for
T-1000L (EF)
83004400 Quartz Element RX-005 for
T-1000L (EU)
83004400 Quartz Element RX-005 for
T-1000 (EG)
83004400 Quartz Element RX-005 for
T-1000 (El)
*Diode
fD1~21 03117600 182473177
or 83000100 1N4148
{D24 03117600 1$2473177
or 83000100 1N4148
fD40 03117600 $24731T77 (T-1000L)
or 83000100 1N4148 (T-1000L)}
0S1~ 16 46708100 Push SW., Memory 1 ~ 16
or 83000300 Push SW.,
or 83032400 Push SW.,
0S17 48240500 Tact SW., HI-BLEND
or 83004000 Push SW.,
or 83032600 Push SW.,
0S18 48240500 Tact SW., FM
or 83004000 Push SW.,
or 83032600 Push SW.,
0$19 48240500 Tact SW., AM (MW/LW)
or 83004000 Push SW.,
or 83032600 Push SW.,
0S20 48240500 Tact SW., TUNING UP
or 83004000 Push SW.,
or 83032600 Push SW.,
0821 48240500 Tact SW., TUNING DOWN
or 83004000 Push SW.,
or 83032600 Push SW.,
0S$22 48240500 Tact SW., TUNING MODE
or 83004000 Push SW.,
or 83032600 Push SW.,
0S23 46708100 Push SW., MEMORY
or 83000300 Push SW.,
or 83032400 Push SW.,
*Transistor
sQ1, 2 46367101 2SC2603
or 48058801 28C17408
5-2. F-6000 Main Board <Stock No. 01123305 = T-1000L-EF/
01112105 = T-1000L-EU/01123508 = T-1000-EG/01123705 = T-1000-EI >
Parts No. Stock No. Description
dZ1 48729600 FM Frontend Pack
¢Transistor
dQ 46393201 2SC2786
dQ3 46367101 2SC2603
or 48058801 2SC1740S
do4 46540801 2SC2878
or 46604301 2SC3327
dQ5 4636710 2SC2603
or 48058801 2SC1740S
dQ6,7 46367001 2SA1115
or 48058601 2SA933S
dQ8 46367101 2SC2603
or 48058801 2SC1740S
dag 46367001 2SA1115
or 48058601 2SA933S
dQ10, 11 46367101 2SC2603
or 48058801 28C1740S
eFET
dFT1 46643501 2SK163-K2
or 46643502 2SK163-L1
or 46643601 2SK117-Y
or 46643602 2SK117-GR
eIC
dICc1 48715100 LA1266
dilC2 48491000 LA3410A
dx01 48272800 Ceramic OSC Element CSB456
or 83000200 Ceramic OSC Element
Diode
dD3~13 03117600 182473177
or 83000100 1N4148
dC22 48102400 4.7nF 25V E.B.
dC33 48103400 TpF 50V E.B.
dC35 48102400 4.7uF 25V E.B.
dCF1, 2 46202500 Ceramic Filter SFE10.7MS2
(T-1000L)
or 83000000 Ceramic Filter SFE10.7MS2
{T-1000L)
48064800 Ceramic Filter SFE10.7MS3G
{T-1000)
or 83043800 Ceramic Filter SFE10.7MS3G
(T-1000)
