Sansui T-1000 - Page 9

seu nelly tele)e) & sem neleleymnelele] 8
7.

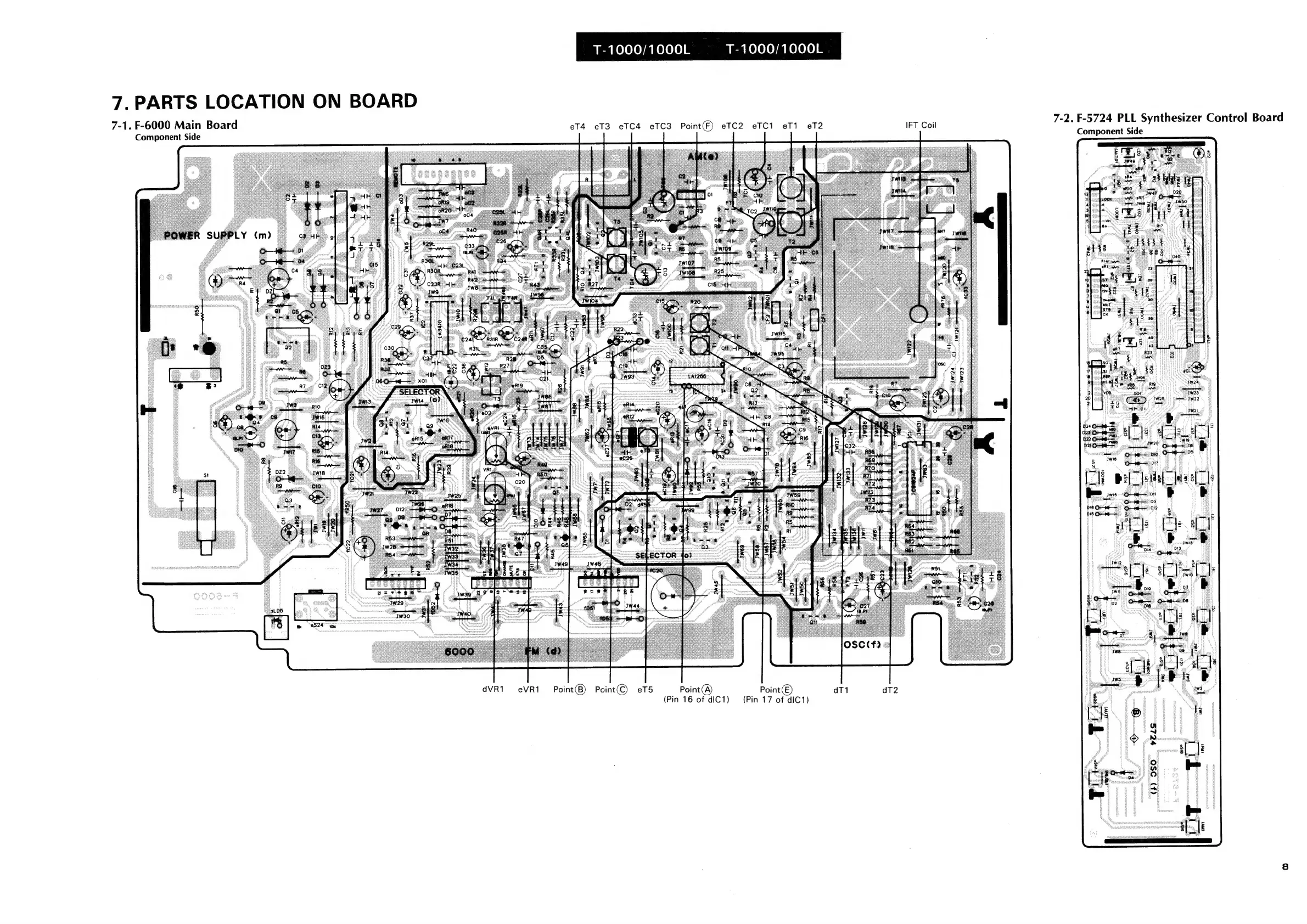

PARTS
LOCATION
ON
BOARD
7-1.
F-6000
Main
Board
eT4
eT3
eTC4
eTC3
Point(F)
eTC2
eTC1
eT1
eT2
IFT
Coil
Component
Side
7-2. F-5724 PLL Synthesizer Control Board
Component Side
dVR1 eVR1 Point(®) Point(© eT5 Point(A) Point) dT1 dT2
(Pin 16 of diC1) (Pin 17 of dIC1)
