IMPORTANT:
Make sure the TV/CATV menu option is set to the "CATV" mode.
IMPORTANT:
Make sure the TV/CATV menu option is set to the "CATV" mode.
IMPORTANT:
Whenever a Converter/Descrambler box is placed before the VCR, you must tune the VCR to the output of the
Converter/Descrambler box, usually channel 3 or 4.

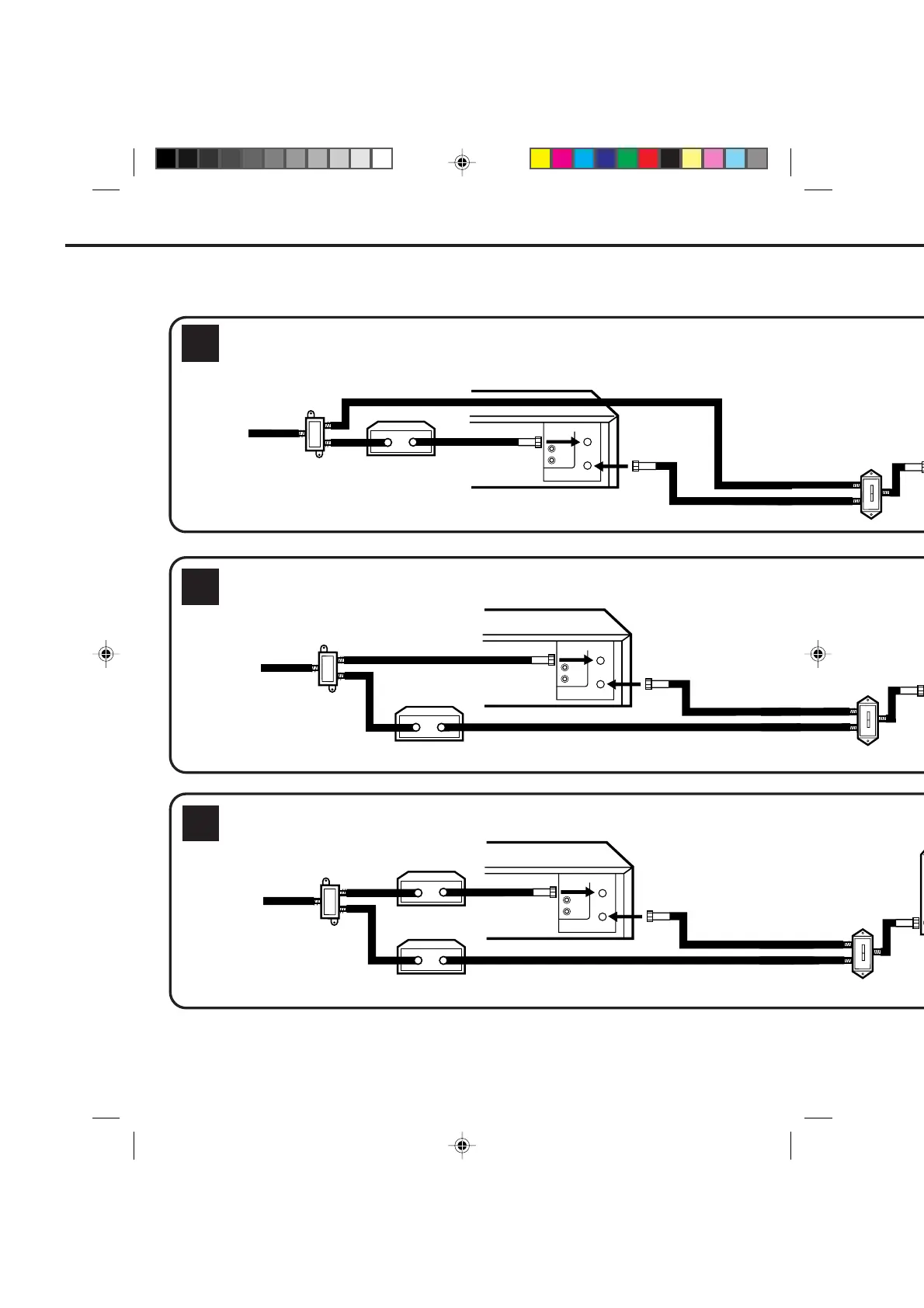

CATV (CABLE TV) CONNECTIONS (CONTINUED)
VCR
Incoming Cable
Converter/Descrambler
VCR
Converter/Descrambler
VCR
Converter/Descrambler
Make sure the TV/CATV menu option is set to the "CATV" mode.
Splitter
Converter/
Descrambler
NOTE:
Incoming Cable
Splitter
Splitter
Incoming Cable
