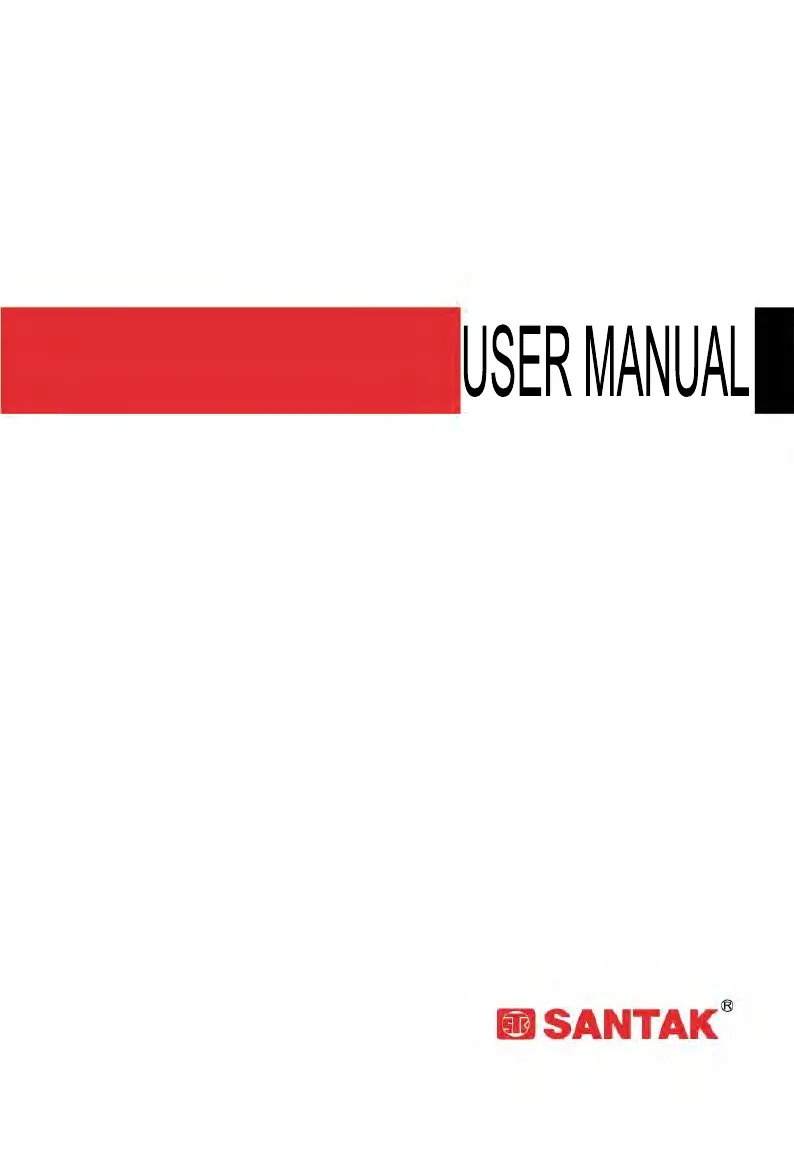

Santak 3C3 PRO 30KS - User Manual

58 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

CASTLE Series

20K(S) -200K(S)

Questions and Answers

S
staceyadamsAug 6, 2025
What to do if the Santak 3C3 PRO 30KS UPS 'Fault' LED is on and it beeps intermittently?
- C
  Cheryl ChurchAug 7, 2025
  The intermittent beeping and illuminated 'Fault' LED on your Santak UPS usually indicates an issue with the load, power input, or battery connection. First, reduce the connected load to ensure it's within the UPS's capacity. Next, verify that your input wiring is correctly connected and the input voltage is within the normal range. Finally, check that the battery switch is on and the battery wiring is properly connected.
M
Maria CastilloAug 22, 2025
What to do if there is no display on the Santak UPS LCD panel?
- D
  Deborah WashingtonAug 22, 2025
  If the LCD panel of your Santak UPS is not displaying anything, try pressing the 'ESC' button for 3 seconds to reset the LCD panel.

Summary

Safety Instructions

General Safety Guidelines

Covers general operational safety precautions for the UPS.

Prohibited Activities

Lists actions that should not be performed with the UPS.

Electrical Safety

Details safety precautions related to electrical connections and grounding.

Battery Safety

Outlines critical safety measures for handling UPS batteries.

Maintenance and Environment

Maintenance Procedures

Covers operational environment, storage, and cleaning procedures for UPS.

Chapter 3 Installation Instructions

Installation Notice

Required Clearance for Installation

Wiring Requirements and Protective Devices

Details wire size, current ratings, and protective devices for UPS installation.

Terminal Connection Torque Specifications

Recommended Circuit Breaker Ratings

Recommends input, bypass, output circuit breakers and fuse ratings.

Parallel Installation

Parallel Wiring Diagrams

Connecting Battery Cabinets to UPS

Provides step-by-step instructions for connecting battery cabinets to the UPS.

Chapter 4 Operation

Single UPS Operations

Start-up and Shut-down Operations

Details the procedures for starting up and shutting down the UPS.

Settings Configuration

Parallel UPS Operations

Chapter 5 Communications Interface

Chapter 7 Transportation, Maintenance and Troubleshooting

Transporting the UPS

Servicing and Maintenance

Troubleshooting Guide

Offers a checklist for diagnosing and resolving common UPS issues.

Malfunction Table

Lists common problems, their causes, and solutions.

Appendix I Specifications

Appendix II Reference Table of LED Indicators

Appendix III Warranty

Santak 3C3 PRO 30KS Specifications

General

Power Rating/Capacity	30kVA / 27kW
Waveform	Pure Sine Wave
Transfer Time	0 ms
Communication Interface	RS232, USB, SNMP (optional)
Operating Temperature	0-40°C
Relative Humidity	0-95% (non-condensing)
Input Voltage	380/400/415VAC (3-phase)
Output Voltage	380/400/415VAC (3-phase)
Output Frequency	50/60 Hz
Battery Type	Sealed lead-acid (maintenance-free)
Typical Backup Time	Depends on the battery configuration
