4

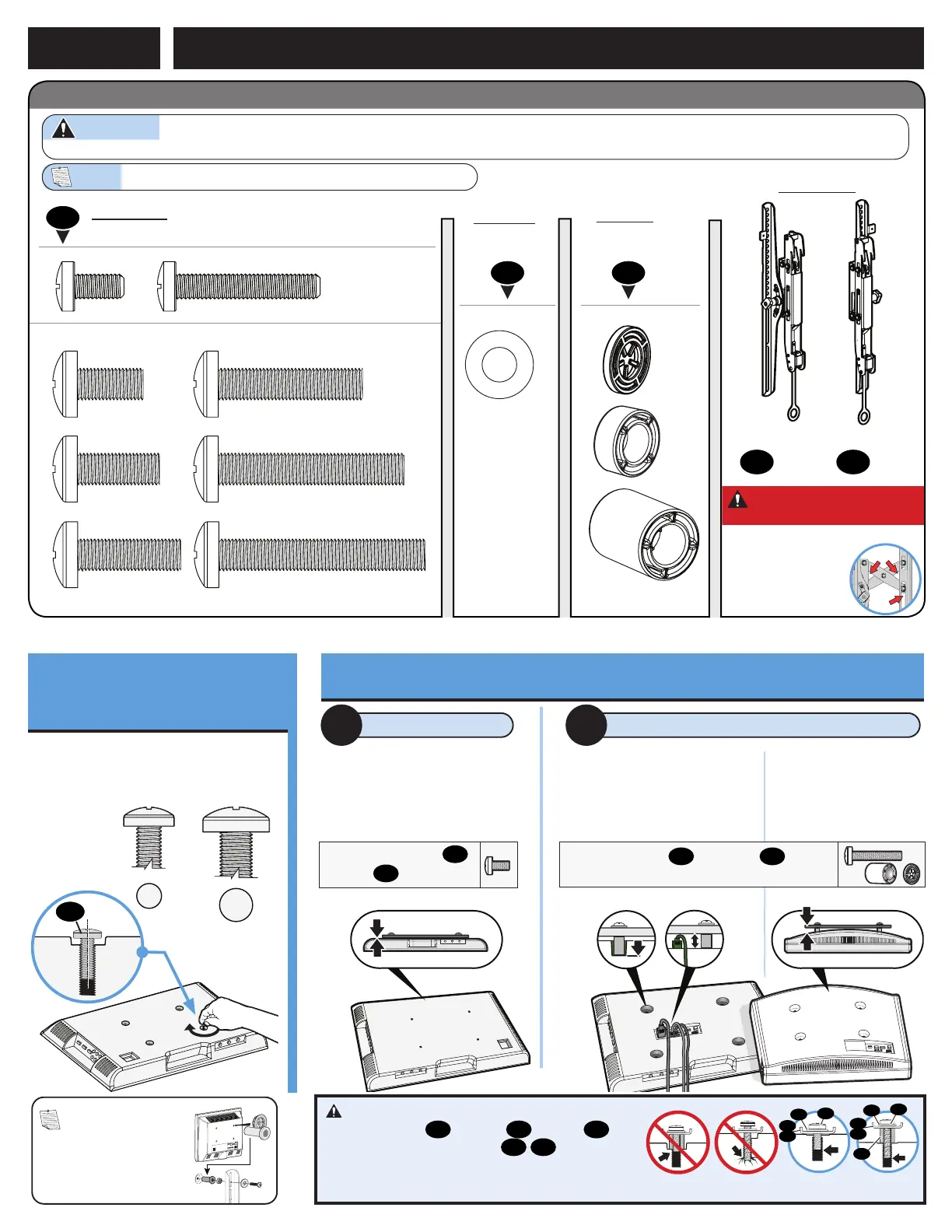

Parts and Hardware for STEP 1
22mm
M6 x 12mm
M6 x 35mm
2.5mm
5mm
M8 x 25mm
M8 x 50mm
M8 x 45mm
M8 x 35mm
M8 x 16mm
M8 x 20mm
Right
TV Bracket
Left
TV Bracket
ATTACH TV BRACKET TO TVSTEP 1
CAUTION: Avoid potential
personal injury or property damage!
The TV brackets contain potential
pinch points during operation.
Keep fingers away from
pinch points when
retracting the TV. (arrows)
WARNING:
This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included
and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
1.1 Select TV
Screw Diameter
1.2 Select TV Screw Length / Spacers
TV Screws
(qty. 4 each)
[Only one size fits your TV]
Washers
(qty. 4 each)
Spacers
[If necessary]
(qty. 4 each)
0302
01
M6/M8 M6/M8
M6
M8
(qty. 1)
05
(qty. 1)
04
TV Bracket
03
04
04
05
05
02
02
01
01
Too Short Too Long Correct
Inset Holes Cables Rounded Back
Only one screw size fits your TV.
M6
M8
• Flat Back TV
[TV brackets
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV
with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets NOT
resting flat on your TV]
A B
Use short TV screws
01
.
Spacers
03
not needed.
Use long TV screws
01
and spacers
03
to
create extra space between the TV and TV bracket.
01
CAUTION: Verify adequate thread engagement
with your screw
01
, washer
02
, spacer
03
combination AND TV bracket
04
/
05
.
— Too short will not hold your TV.
— Too long will damage your TV.
*
*
*
NOTE: If your TV
included inset spacers or
adapters, use them UNDER
the mount hardware.
To Next Page
