CAUTION: Avoid potential
personal injuries and property damage!
● Drywall covering the wall must not
exceed 5/8 in. (16 mm)
● Minimum wood stud size:
common 2 x 4 in. (51 x 102 mm)
nominal 1½ x 3½ in. (38 x 89 mm)
● Minimum horizontal space between
fasteners: 16 in. (406 mm)
● Stud centers must be verified – not all
walls have conventional 16 in. (406 mm)
or 24 in. (610 mm) stud spacing

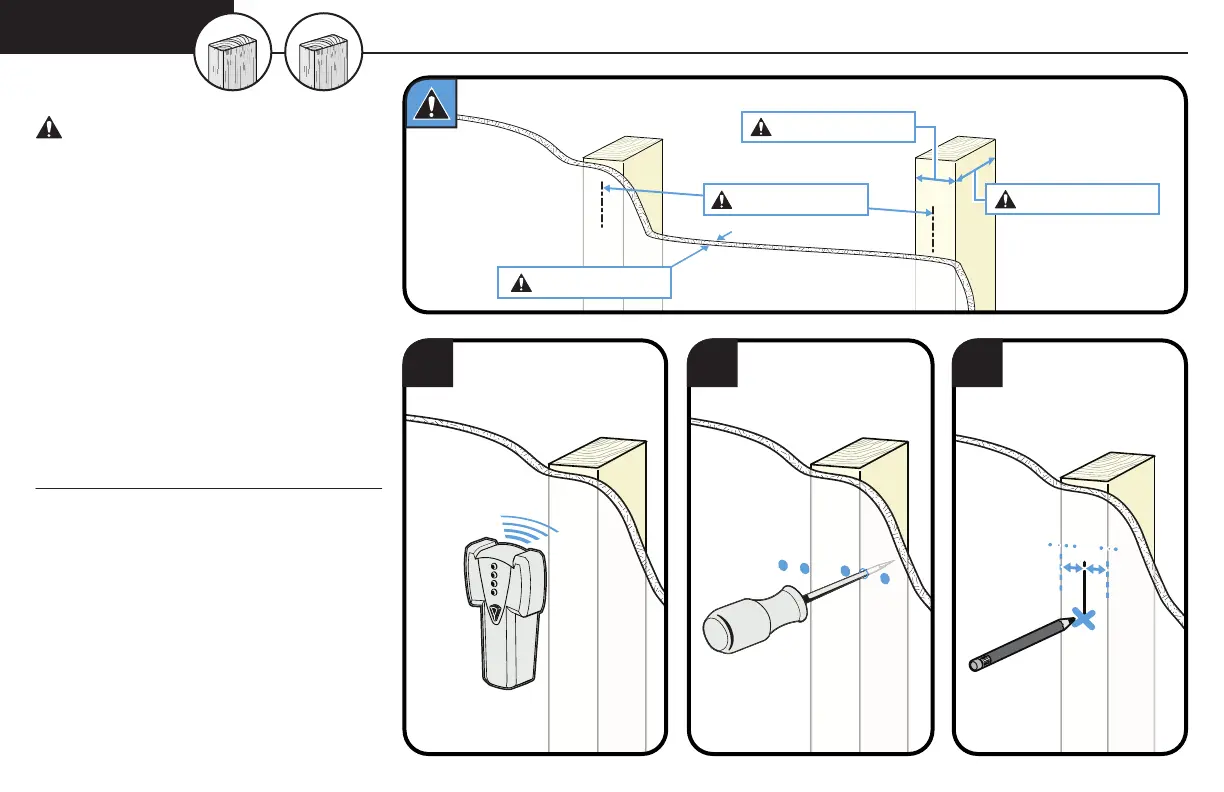

1. Locate the studs using a stud finder.
2. Find the edges of the studs using an
awl or small drill bit.
3. Mark the centers of the studs with
a pencil.
Max. 5/8 in. (16 mm)
Min. 16 in. (406 mm)
Min. 3 1/2 in. (89 mm)
Min. 1 1/2 in. (38 mm)
STEP 2A
Wood Stud Option
(Double Stud Install)
