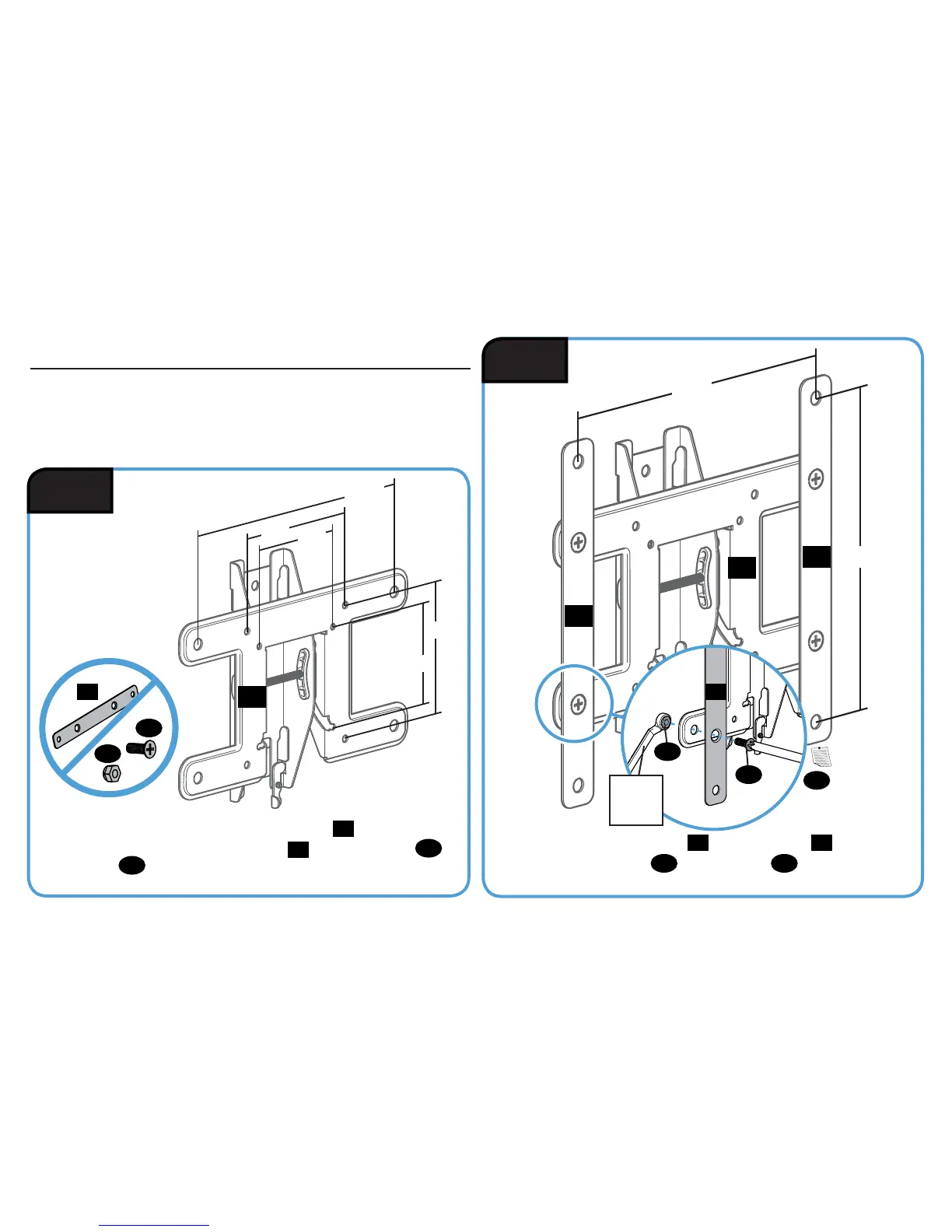

1-2 Assemble Your TV Bracket
Determine which TV bracket configuration to use, A or B based
on your TV hole pattern measurements.
A
20.0
10.0
10.0
7.5
7.5
These smaller hole patterns only use TV bracket
01
.
Do not use the two TV bracket extenders
02
and four screws
03
and four nuts
04
.
7.5 x 7.5
10.0 x 10.0
20.0 X 10.0
Assemble TV bracket extenders
02
onto TV bracket
01
as illustrated.
Secure using four screws
03
and four nuts*
04
in the corner holes
shown.
20.0 x 20.0
01
B
03
20.0
20.0
02
NOTE: Nuts
04
are poly-locks
and will need to be
forcibly tightened.
02
02
03
04
3/8 in.
(10 mm)
wrench
02
03
04
