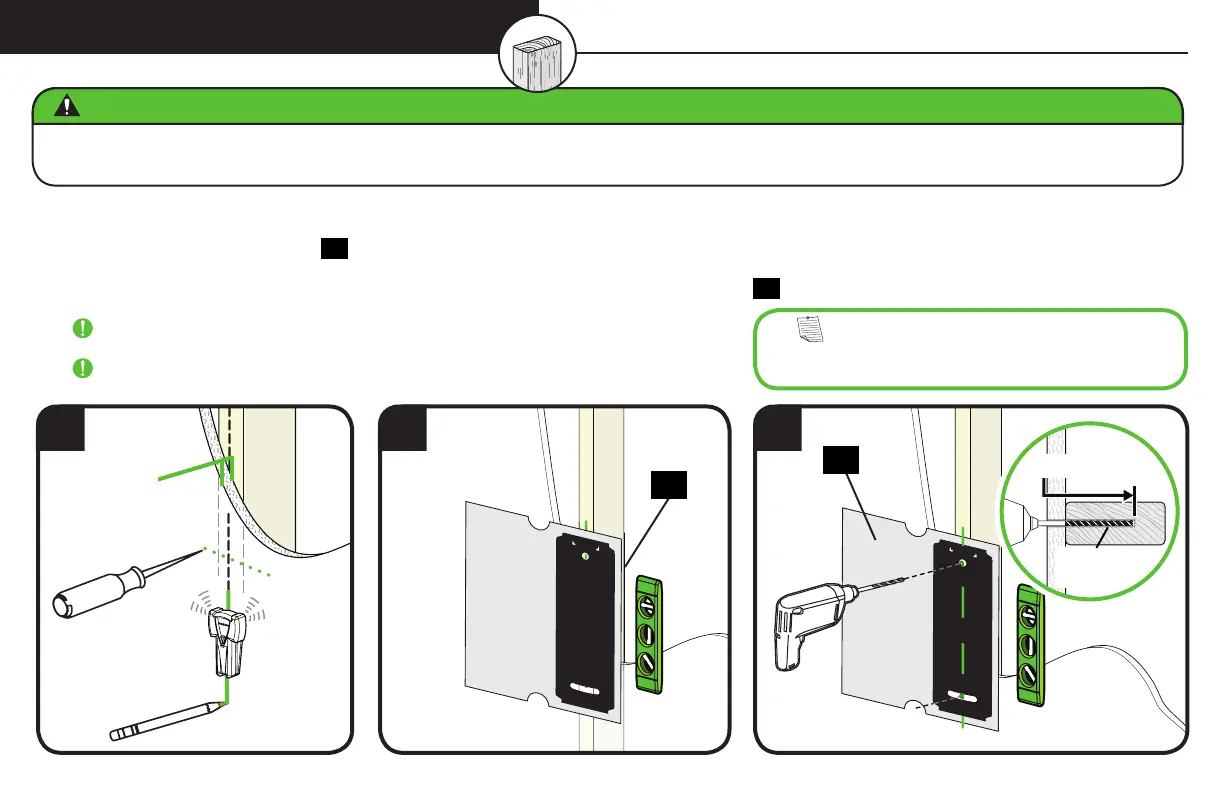

10
1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.
2. Position the wall plate template
12
at your desired height and line up the holes with your stud center line. Level the template and tape in place.
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. Remove wall plate template
12
.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 2½ in. (63.5 mm).
STEP 2A Attach Wall Plate
Wood Stud Installation
2
3
12
12
≤ 16 mm
(5/8 in.)
1
NOTE: TV shifts 21.9 mm (7/8 in.) to the right
or left when in the home position. Consider this when
selecting the location of your wall mount.
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 ½ x 3 ½ in. (38 x 89 mm)
2½
in. (
63.5
mm)
7/32 in.
(5.5 mm)
