10

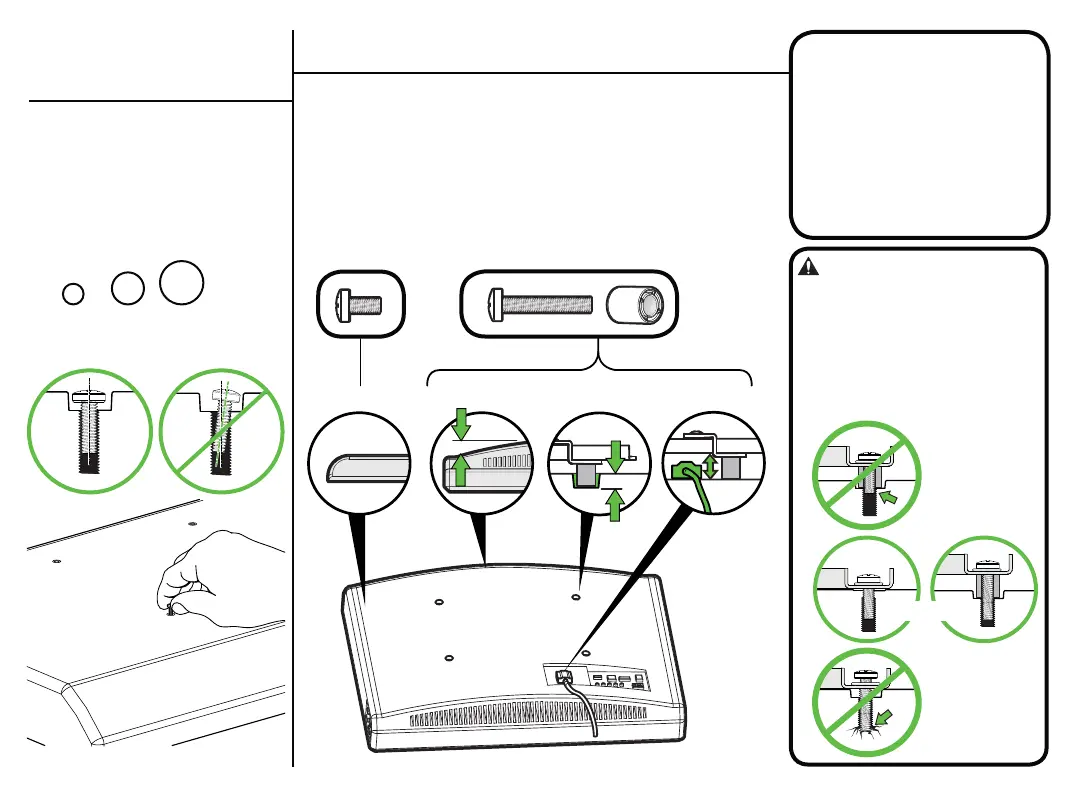

1-3 Select TV Screw
Diameter
1-4 Select TV Screw Length
Too Short
Too Long
CAUTION:
Verify adequate thread
engagment with the screw or
screw/spacer combination.
- Too short will not hold the TV.
- Too long will damage the TV.
Correct
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection,
contact Customer Service
at 1-800-359-5520.
M6 M8
FLAT BACK ROUND BACK CABLESINSET HOLES
M4
If your TV has a flat back AND you want your TV closer to
the wall, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
● Round/irregular back TVs
● TVs with inset mounting holes
● Extra space needed for cables
Hand thread screws into the
threaded inserts on the back
of your TV to determine which
screw diameter (
M4, M6, or
M8
) to use.
