Sanus MF215 - Wood Stud Wall Mounting

6901-002090 <00>
15

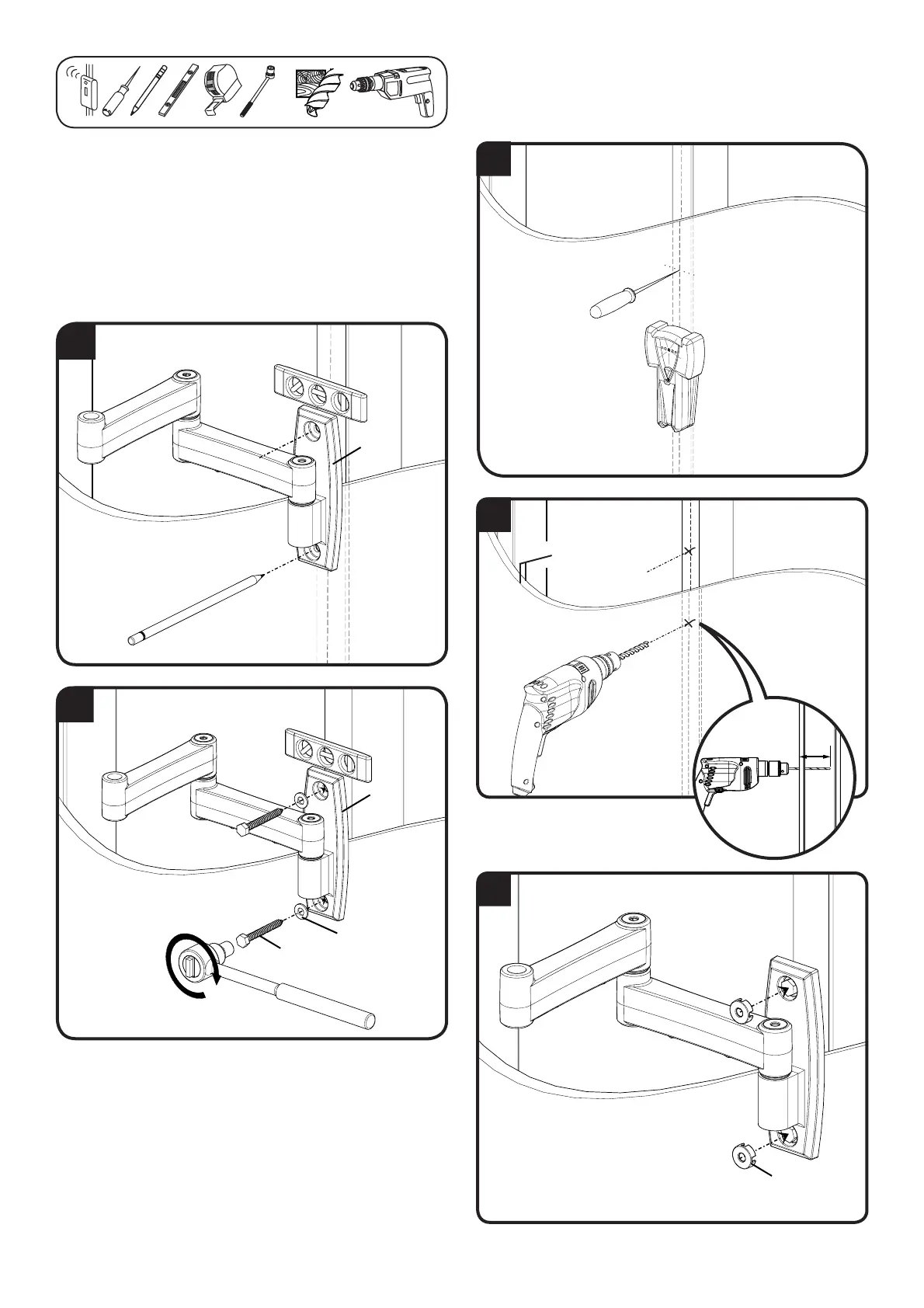

Wood Stud Wall Mounting – See Cautions in Step 2.
1. Locate stud. Verify the center of the stud with an awl or thin nail or use
an edge to edge stud  nder.
2. Level the wall plate [02] and mark the hole locations.
3. Drill pilot holes as illustrated.
4. Place the wall plate against the wall. Tighten the lag bolts [25] only
until the washers [26] are pulled  rmly against the wall plate [02].
5. Place lag bolt covers [28] over lag bolts [25].
2-1
1
13mm
(1/2 in.)
5.5mm
(7/32 in
.)
2
4
5
3
< 16 mm
(5/8 in.)
[02]
[02]
[26]
[25]
[28]
63.5 mm
2.5 in.
