Sanus MF215 - Concrete and Block Wall Mounting

6901-002090 <00>
16
10mm
(3/8 in.
)
1
3
2-2
4

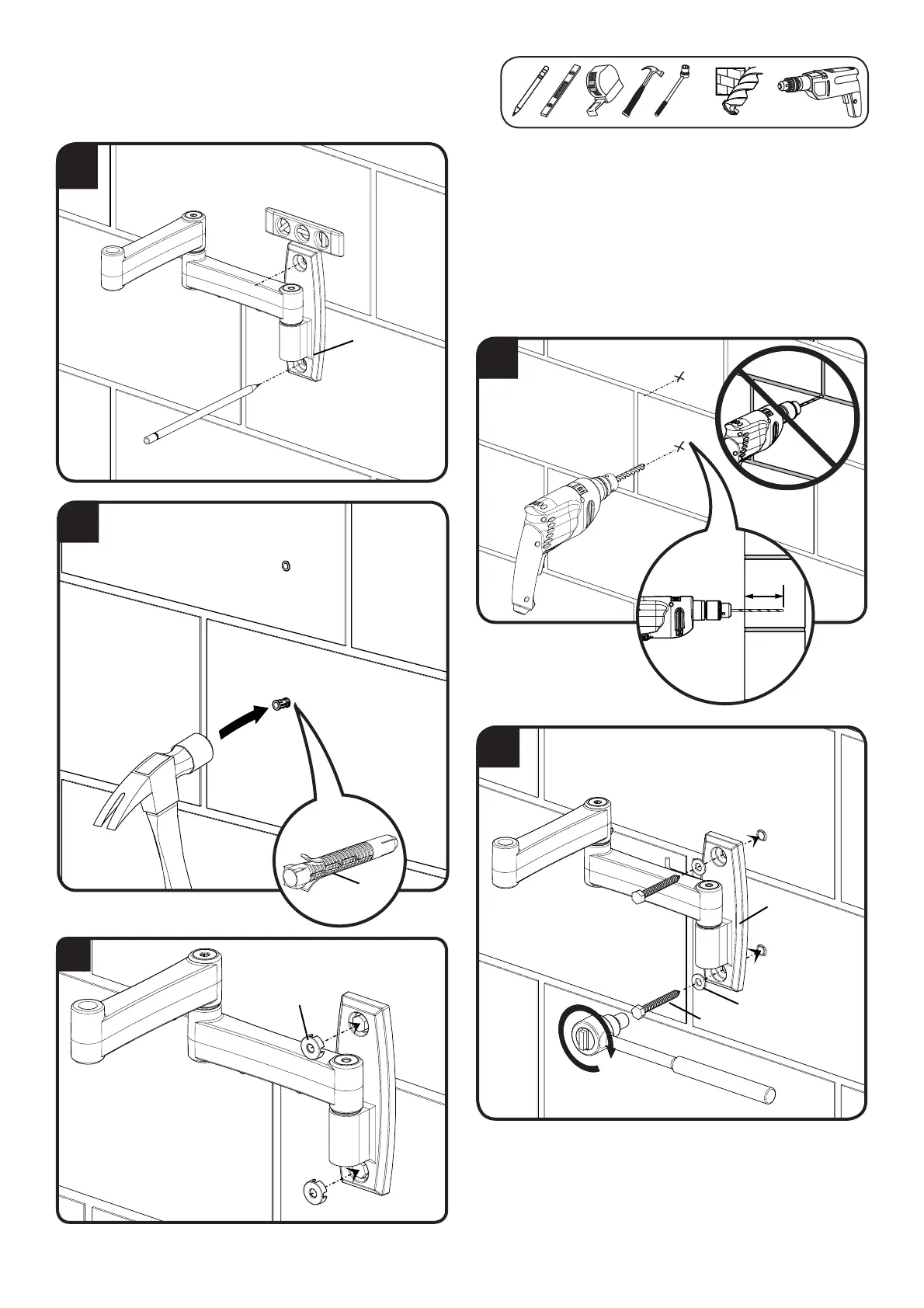

Solid Concrete and Concrete Block Mounting – See Cautions in Step 2.
1. Level wall plate and mark the hole locations.
2. Drill pilot holes as illustrated.
3. Insert lag bolt anchors [27].
4. Place the wall plate [02] against the wall. Tighten the lag bolts [25]
only until the washers [26] are pulled  rmly against the wall plate [02].
5. Place lag bolt covers [28] over lag bolts [25].
2
13mm
(1/2 in.)
5
[02]
[02]
[28]
[26]
[25]
[27]
75 mm
3 in.
