For wood stud applications:
1. Remove the TV from the arm assembly
12
(see PAGE 25).
2. Remove the cover plates
19
and the four screws
13
and
washers
14
from wall plate
08
using hex key
18
.
3. Reposition the arm assembly
12
on the wall plate.
4. Reattach the four screws
13
and washers
14
(see STEP
3.1) and replace the cover plates
19
(see STEP 3.4).
5. Hang the TV onto the arm assembly
12
following STEP 3.2.

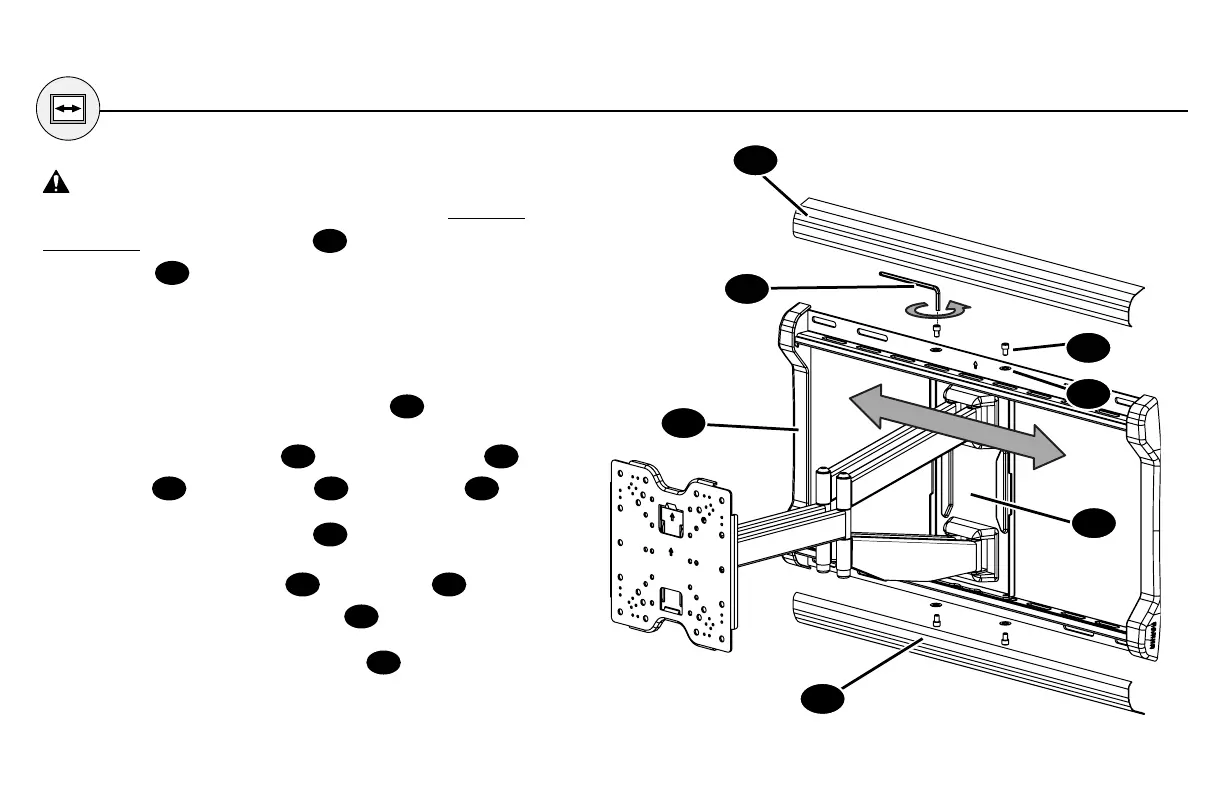

TV LATERAL SHIFT
CAUTION: Avoid potential injury or property damage!
DO NOT adjust the arm from the center postion for concrete
applications. The base of the arm
12
MUST remain centered in
the wall plate
08
for concrete applications!
