9

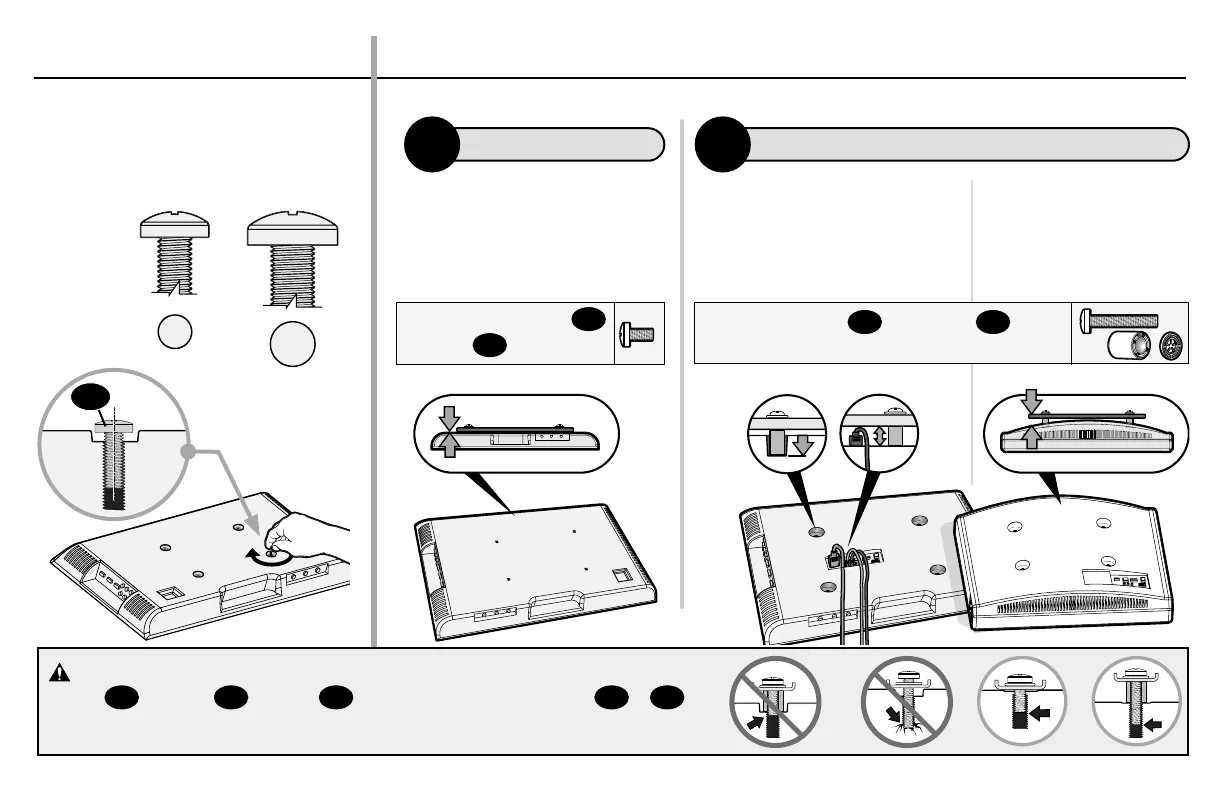

1.3 TV
Screw Diameter
1.4 TV
Screw Length
Inset Holes Cables Rounded Back
Only one screw size fits your TV.
M6
M8
• Flat Back TV
[TV brackets
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets NOT
resting flat on your TV]
A B
Use short TV screws
01
.
Spacers
03
not needed.
Use long TV screws
01
and spacers
03
to
create extra space between the TV and TV bracket.
01
CAUTION: Verify adequate thread engagement with your
screw
01
, washer
02
, spacer
03
combination AND TV bracket
04
or
05
.
— Too short will not hold your TV. — Too long will damage your TV.
Too Short
Too Long
Correct
To Next Page
