Sanus Visionmount MF209 - Wall Mounting Procedures

6901-002129 <01>
8
< 16 mm
(5/8 in.)
Verify the center of the stud using an awl, a thin nail, or an edge to edge stud
 nder.
CAUTION: Avoid potential personal injuries and property damage!
Ù Any material covering the wall must not exceed 16 mm (5/8 in.).
Ù Minimum wood stud size: common 2 x 4 in (nominal 1.5 x 3.5 in).
CAUTION: Improper use could reduce the holding power of the lag
bolt. To avoid potential injuries or property damage: pilot holes MUST be
drilled to a depth of 75 mm (3 in.), using a 5.5 mm (7/32 in.) diameter drill
bit.
CAUTION: Improper use could reduce the holding power of the lag
bolt. To avoid potential injuries or property damage DO NOT over-tighten
the lag bolts [23].
Fit lag bolt covers [26] over lag bolts [23].
NOTE: The MF209 is shown.
NOTE: The MF209 is shown.
NOTE: For the MF209 only:
TV will shift 15 cm (6 in.) to the right or left when in the home position.
Consider this when selecting the location of your wall mount.
75 mm
3 in.
[23]
[02]
[24]
[24]
[26]
[23]
[02]

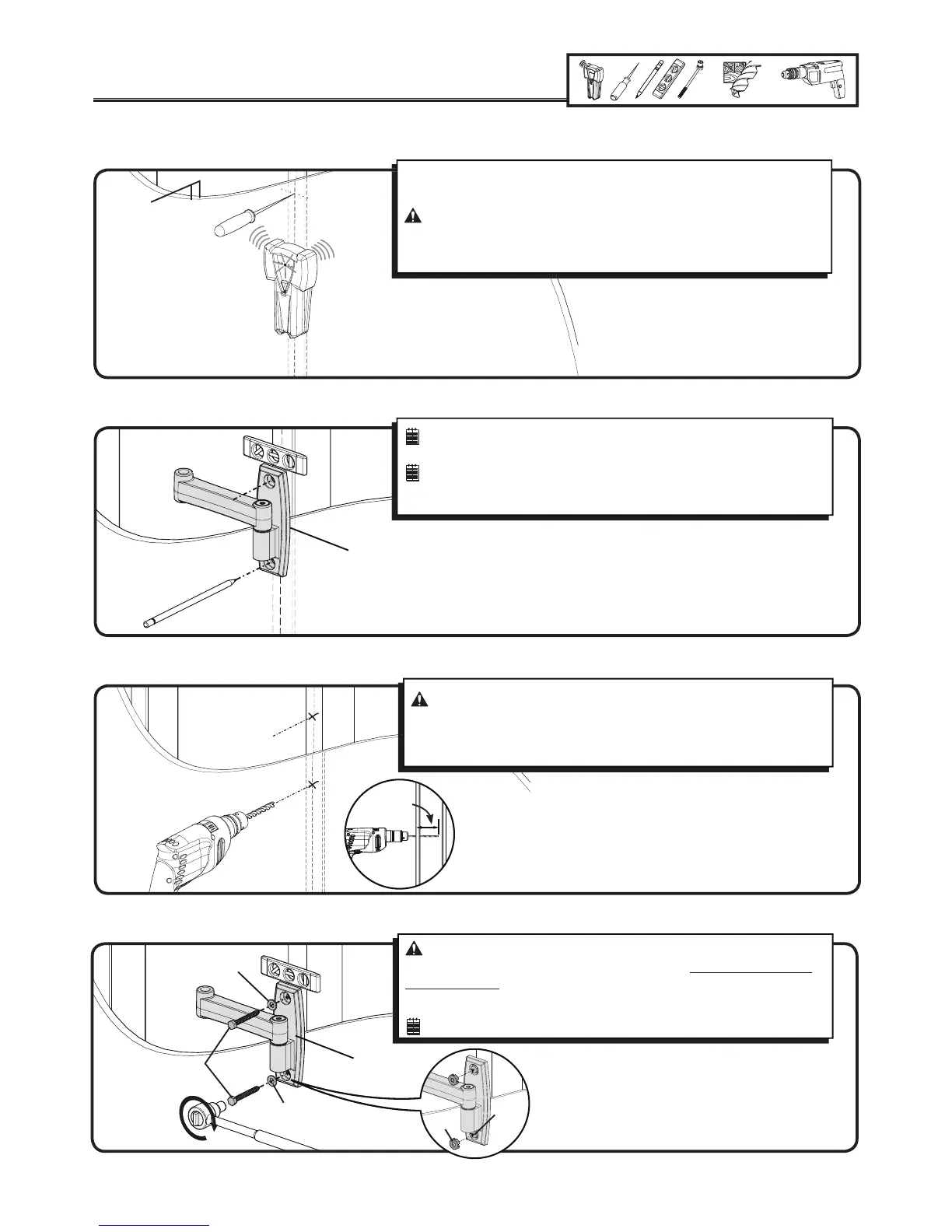

2 Wall Mounting - Wood Stud
For assitance in determining wall plate location, see Height Finder at sanus.com.
2-1 Locate stud
2-2 Level wall plate [02] and mark hole locations
2-3 Drill pilot holes as illustrated
2-4 Tighten lag bolts [23] only until the washers [24] are pulled  rmly against the wall plate [02]
5.5mm
(7/32 in.)
13mm
(1/2 in.)
