Sanus VLF220 - Page 9

(6901-002111 <02>)
9
002942.eps
LF220 - Arm to Wall Plate

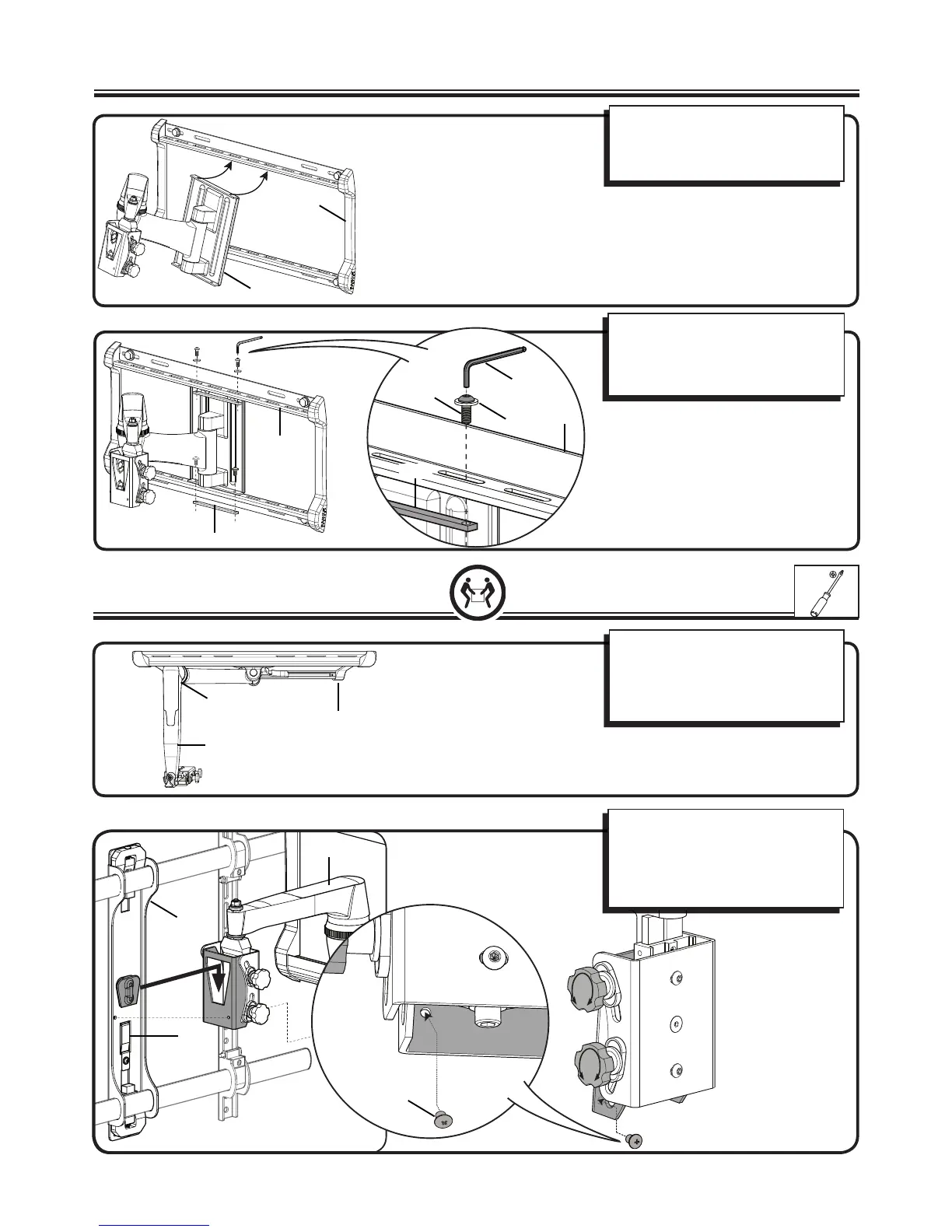

3 Attach Arm to Wall Plate
002942.eps
LF220 - Arm to Wall Plate
(T)
[01]
4 Attach TV to Arm
(L)
Position arm [03] so the elbow is
pressed against the wall. Tighten the
tension adjustment (T) to prevent the
arms from moving while installing the
TV bracket.
Align the holes at the top and bottom
of the arm [03] to the slots in the wall
plate [02]
Attach the TV bracket [01] to the arm
assembly [03]. There is an audible click
when the parts are correctly assembled.
TILT TV UPWARD. Install and tighten
locking screw [13].
Attach plates [21] and the arm [03] to
the wall plate [02] using washer [19]
and screw [20]. Secure with the allen
key [23].
concrete only
[02]
[03]
[20]
[19]
[02]
[21]
[23]
[02]
[03]
[13]
[03]
[21]
[02]
