STEP 2A Attach Wall Plate to Wall
Wood Stud Option
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Minimum horizontal space between fasteners: 16 in. (406 mm)

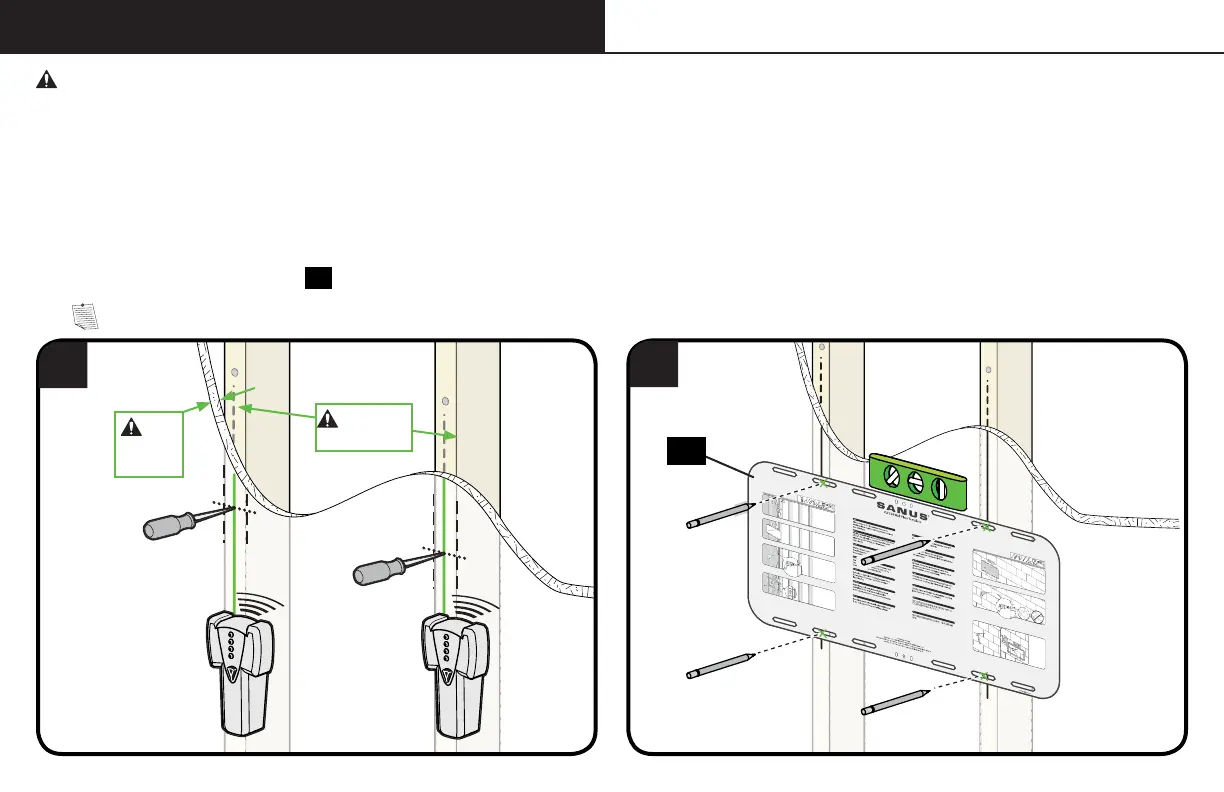

1. Stud centers must be verified – not all walls have conventional 16 in. (406 mm) stud spacing. Verify the center of the stud(s) using an awl,
a thin nail, or an edge to edge stud finder.
2. Level the wall plate template
14
and mark the four hole locations.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
1
2
14
Max.
5/8 in.
(16 mm)
Min.
16 in.
(406 mm)
