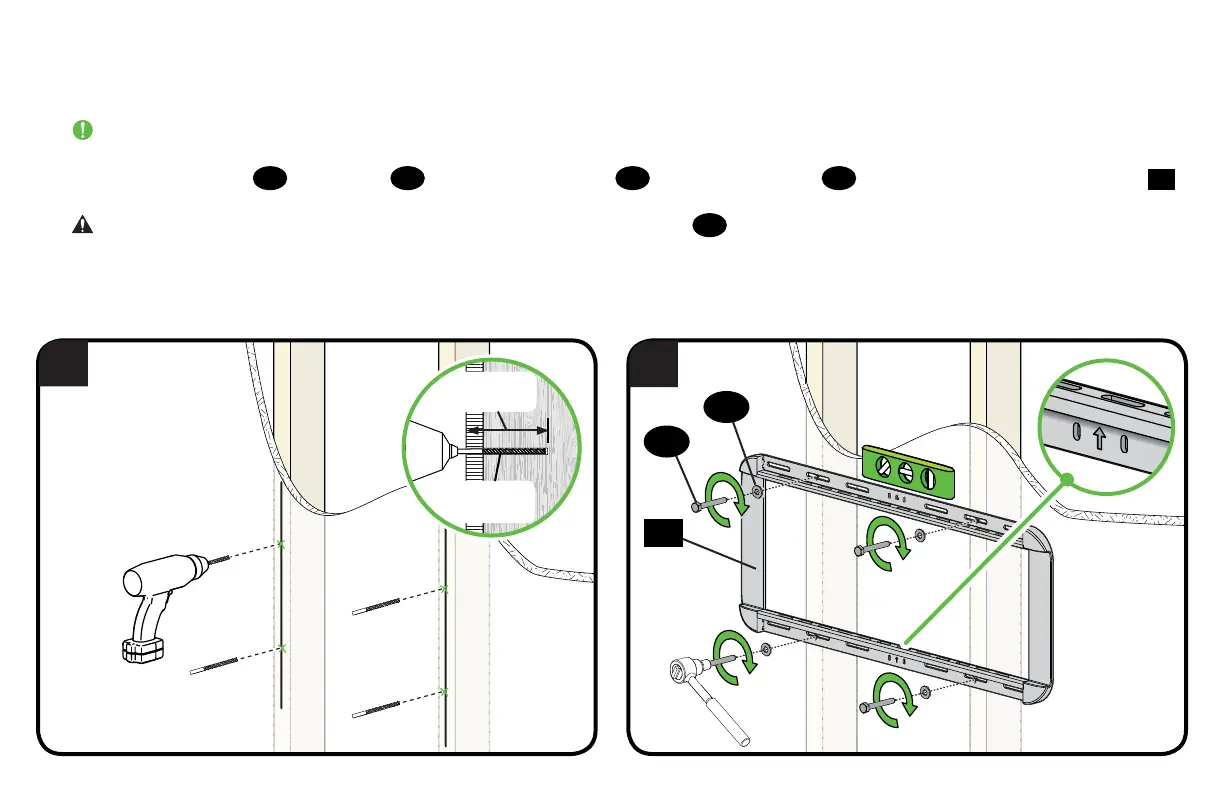

3. Drill the four pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).
4. Install the four washers
17
and lag bolts
18
. Tighten all four lag bolts
18
only until the washers
17
are pulled firmly against the wall plate
15
.
CAUTION: Improper use could reduce the holding power of the lag bolts
18
. DO NOT over-tighten the lag bolts.
Go to STEP 3 on PAGE 14.
3 in.
(75 mm)
7/32 in.
(5.5 mm)
17
18
15
