Sanus VLT16 - Step 2: Attach Wall Plate - Wood Stud Option; Mounting on Wood Studs

10
CAUTION: Avoid potential personal injuries and property damage!
● Drywall covering the wall must not exceed 16 mm (5/8 in.)
● Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1 1/2 x 3 1/2 in.)
● Minimum horizontal space between fasteners: 406 mm (16 in.)
1. Locate studs. Verify the center of the stud(s) using an awl, a thin nail, or an edge to edge stud finder.
NOTE: For assistance in determining wall plate location, see HeightFinder at sanus.com.
2. Level the wall plate
14
and mark the hole locations in the center of the studs.

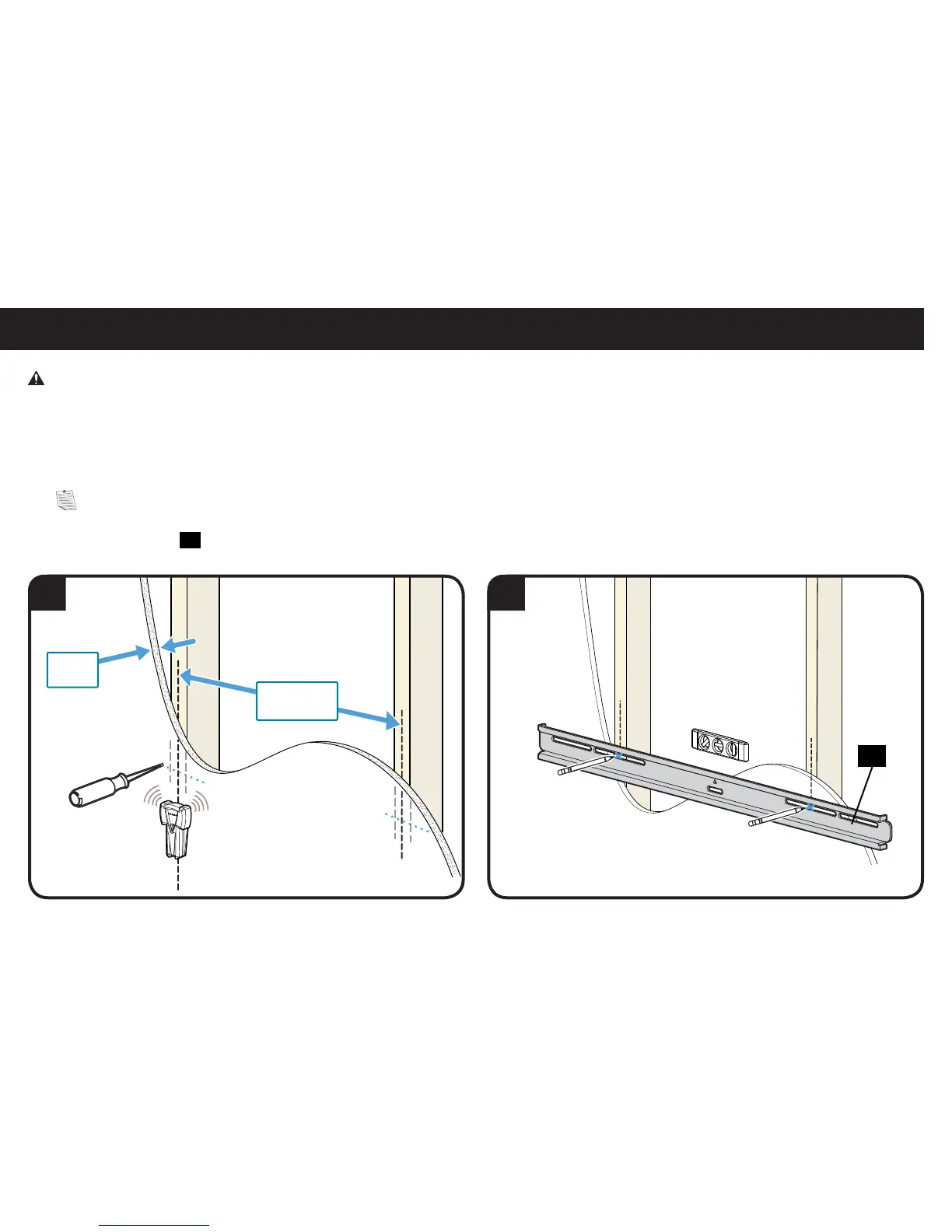

STEP 2 Attach Wall Plate - Wood Stud Option
1 2
≤16 mm
(5/8 in.)
406-610 mm
(16-24 in.)
14
