Sanus VLT16 - Secure Wall Plate to Wood Studs

11
15
17
3 4

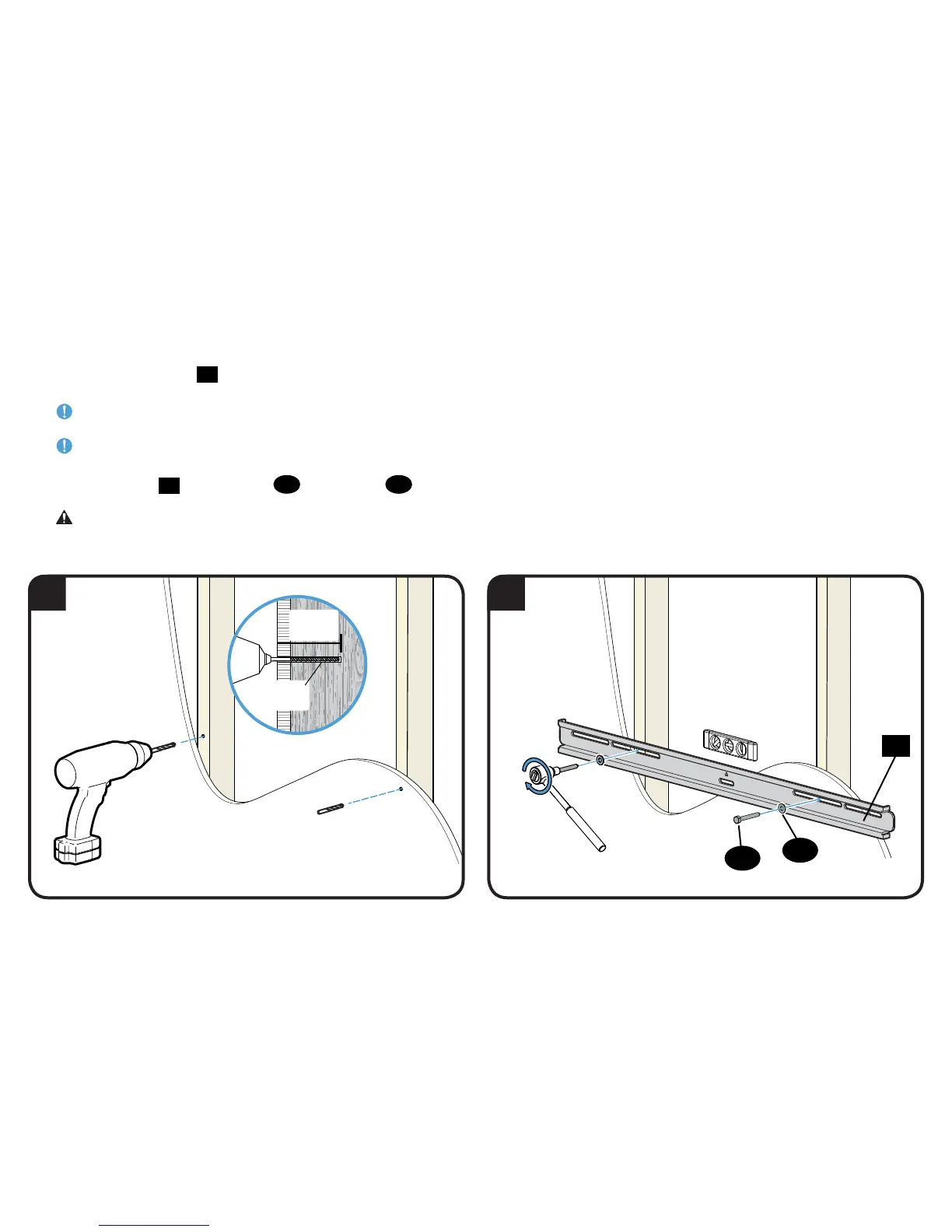

3. Remove the wall plate
14
and drill pilot holes.
IMPORTANT: Be sure to drill into the center of the stud.
IMPORTANT: Pilot holes must be drilled to a depth of 75 mm (3 in.), using a 5.5 mm (7/32 in.) diameter drill bit.
4. Install wall plate
14
using lag bolts
15
and washers
17
. Tighten the lag bolts only until the washers are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
75 mm
(3 in.)
5.5 mm
(7/32 in.)
14
