7
TV Bracket
TV Bracket TV Bracket TV Bracket
TV Bracket
a
b

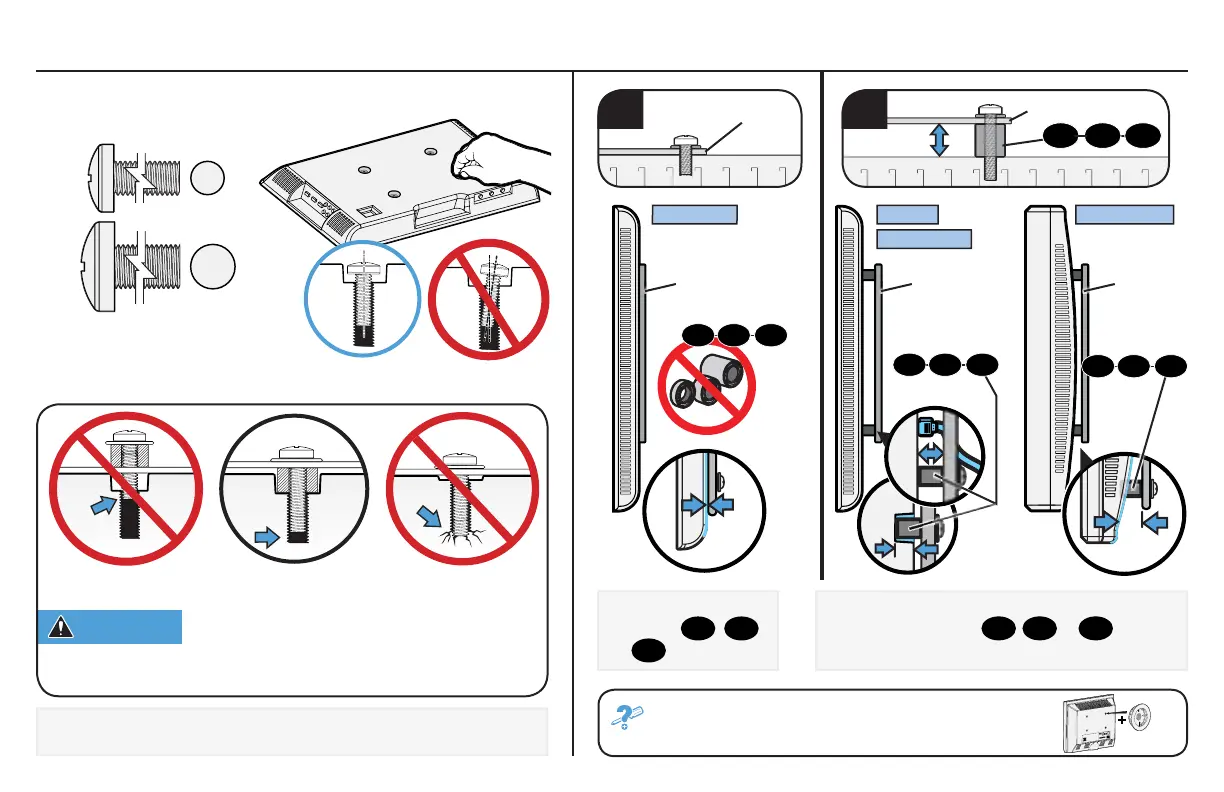

CAUTION: Verify adequate thread engagement with your
screw/washer/spacer combination AND the TV brackets. (STEP 1.2).
TOO SHORT will not hold the TV and TOO LONG will damage the TV.
M6
M8
1.1 Select TV Screws
Determine which screw diameter (M6 or M8) fits the four
mounting holes on the back of your TV.
1.2 Determine Spacer Need
Too Short Correct Too Long
Round BackCables
Inset Holes
Flat Back
1412 13
141312
141312
141312
If your TV included inset spacers or wall mount
adapters, see Troubleshooting on PAGE 24.
For
flat-back TVs,
no
spacers
12
,
13
or
14
are required.
For rounded-back TVs, cable interference or
inset holes, spacers
12
,
13
or
14
to create
extra space between the TV and TV bracket.
To Next Page
